Hand Crank Tilting Autopsy Cart with Optional Tops

Please Request a Quote for Pricing

Standard Features

  • All welded stainless steel frame, type 304 1.5″ SQ. 16 gauge
  • Top Options: No Top, Standard Stainless Steel Top, Stainless Steel Perimeter Trough Top, Fiberglass Perimeter Trough Top, Tan Plastic X-Ray Top
  • Tops include drain hole and plug
  • Four heavy duty 5″ casters, 3 total locks and 1 directional lock

Performance

  • Weight capacity for stainless steel tops: Approximately 500lbs
  • Weight capacity for fiberglass top: Approximately 375lbs

Dimensions

  • DB000: 53″ L x 31.25″ W; fixed end height of 35″
  • DB100, DB300, DB600 & DB850: 80.5″ L x 32″ W; fixed end height of 34.88″

Range of Motion

  • Tilting cart end lifts from 36.44″ – 42.44″

Controls

  • Hand crank with hydraulic lift system for tilting mechanism

Compatibility

Clear
SKU: N/A Category:

Description

The DB Series Tilting (hand crank) autopsy carts can be used in conjunction with any of Mopec C Series Wall Mounted Autopsy Sinks. The frame design features a hand lifting mechanism that elevates one end of the autopsy cart allowing for a sloped surface. The downward sloped edge of the cart frame will latch onto the C Series sink if needed.

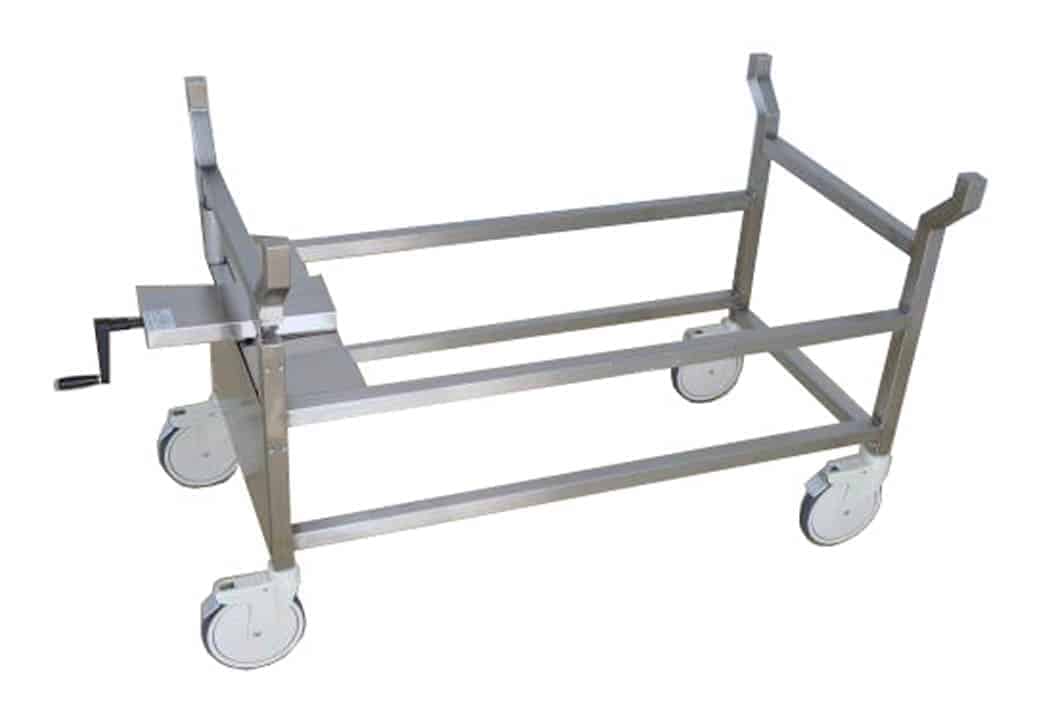

No Top / Chassis Only: DB000

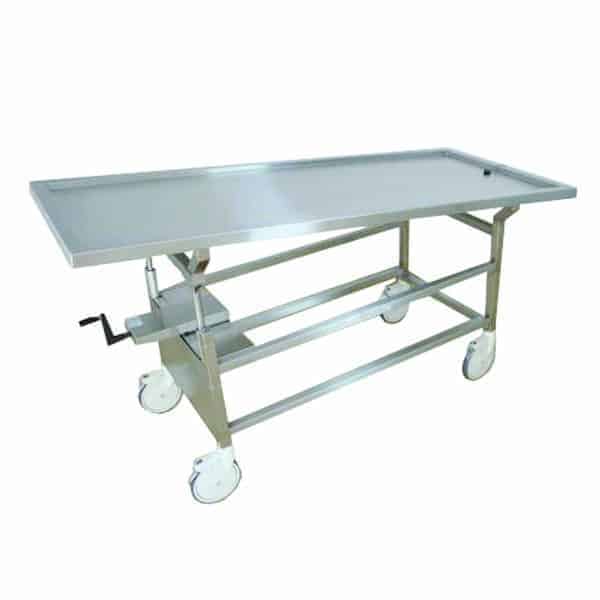

Cart with Standard Stainless Steel Top: DB100

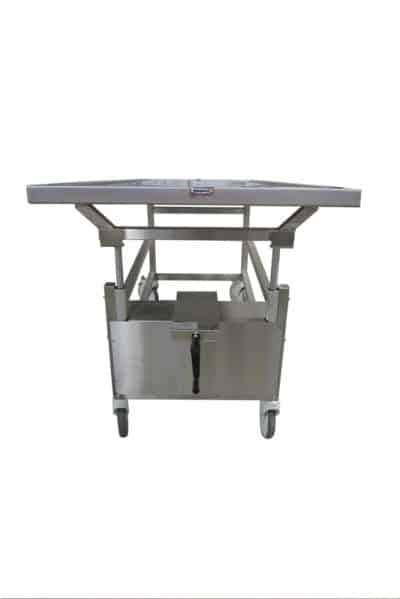

Cart with Stainless Steel Perimeter Trough Top: DB300

Cart with Fiberglass Perimeter Trough Top: DB600

Cart with Tan Plastic X-Ray Top: DB850

Additional information

Top Option

No Top/Chassis Only, Standard Stainless Steel Top, Stainless Steel Perimeter Trough Top, Fiberglass Perimeter Trough Top, Tan Plastic X-Ray Top
