Installation Inspection Checklist

It is highly recommended that your new equipment be installed by our experienced and Mopec-certified installation team. In the event that Mopec will not be installing or present during the final connections of your equipment, the completion of ISO INS-030 is needed to register and activate your Warranty.

Once the necessary documentation is received and reviewed for approval, you will be notified in writing of your warranty coverage. Failure to submit INS-030 and documentation within 30 days from final install will require a field verification performed by Mopec at an additional fee.

Contact your Mopec Project Managers or Customer Service for a copy of INS-030 or with any questions during this process.

Installation Inspection Checklist

Today's Date(Required)

MM slash DD slash YYYY

Order Number(Required)

Product Serial Number(s)(Required)

You can find the Mopec serial number on an orange or blue tag attached to the equipment. Please add each serial number as its own line.

Add Remove

Type of Equipment(Required)

Date of Installation(Required)

MM slash DD slash YYYY

Customer Name(Required)

Customer Email(Required)

We will send the Warranty Certificate to this email address.

Facility Address(Required)

Street Address City State / Province / Region ZIP / Postal Code AfghanistanAlbaniaAlgeriaAmerican SamoaAndorraAngolaAnguillaAntarcticaAntigua and BarbudaArgentinaArmeniaArubaAustraliaAustriaAzerbaijanBahamasBahrainBangladeshBarbadosBelarusBelgiumBelizeBeninBermudaBhutanBoliviaBonaire, Sint Eustatius and SabaBosnia and HerzegovinaBotswanaBouvet IslandBrazilBritish Indian Ocean TerritoryBrunei DarussalamBulgariaBurkina FasoBurundiCabo VerdeCambodiaCameroonCanadaCayman IslandsCentral African RepublicChadChileChinaChristmas IslandCocos IslandsColombiaComorosCongoCongo, Democratic Republic of theCook IslandsCosta RicaCroatiaCubaCuraçaoCyprusCzechiaCôte d'IvoireDenmarkDjiboutiDominicaDominican RepublicEcuadorEgyptEl SalvadorEquatorial GuineaEritreaEstoniaEswatiniEthiopiaFalkland IslandsFaroe IslandsFijiFinlandFranceFrench GuianaFrench PolynesiaFrench Southern TerritoriesGabonGambiaGeorgiaGermanyGhanaGibraltarGreeceGreenlandGrenadaGuadeloupeGuamGuatemalaGuernseyGuineaGuinea-BissauGuyanaHaitiHeard Island and McDonald IslandsHoly SeeHondurasHong KongHungaryIcelandIndiaIndonesiaIranIraqIrelandIsle of ManIsraelItalyJamaicaJapanJerseyJordanKazakhstanKenyaKiribatiKorea, Democratic People's Republic ofKorea, Republic ofKuwaitKyrgyzstanLao People's Democratic RepublicLatviaLebanonLesothoLiberiaLibyaLiechtensteinLithuaniaLuxembourgMacaoMadagascarMalawiMalaysiaMaldivesMaliMaltaMarshall IslandsMartiniqueMauritaniaMauritiusMayotteMexicoMicronesiaMoldovaMonacoMongoliaMontenegroMontserratMoroccoMozambiqueMyanmarNamibiaNauruNepalNetherlandsNew CaledoniaNew ZealandNicaraguaNigerNigeriaNiueNorfolk IslandNorth MacedoniaNorthern Mariana IslandsNorwayOmanPakistanPalauPalestine, State ofPanamaPapua New GuineaParaguayPeruPhilippinesPitcairnPolandPortugalPuerto RicoQatarRomaniaRussian FederationRwandaRéunionSaint BarthélemySaint Helena, Ascension and Tristan da CunhaSaint Kitts and NevisSaint LuciaSaint MartinSaint Pierre and MiquelonSaint Vincent and the GrenadinesSamoaSan MarinoSao Tome and PrincipeSaudi ArabiaSenegalSerbiaSeychellesSierra LeoneSingaporeSint MaartenSlovakiaSloveniaSolomon IslandsSomaliaSouth AfricaSouth Georgia and the South Sandwich IslandsSouth SudanSpainSri LankaSudanSurinameSvalbard and Jan MayenSwedenSwitzerlandSyria Arab RepublicTaiwanTajikistanTanzania, the United Republic ofThailandTimor-LesteTogoTokelauTongaTrinidad and TobagoTunisiaTurkmenistanTurks and Caicos IslandsTuvaluTürkiyeUS Minor Outlying IslandsUgandaUkraineUnited Arab EmiratesUnited KingdomUnited StatesUruguayUzbekistanVanuatuVenezuelaViet NamVirgin Islands, BritishVirgin Islands, U.S.Wallis and FutunaWestern SaharaYemenZambiaZimbabweÅland Islands Country

Inspector's Name(Required)

Instructions

The purpose of this form is to aid in the installation and connection of the equipment. This form is needed along with pictures to verify equipment was installed correctly. Once the necessary documentation is received and reviewed for approval, you will be notified in writing of your warranty coverage. Some items may not pertain to your equipment and would be N/A. This form must be submitted within 30 days of final installation. If it is after 30 days, the inspection will need to be performed by Mopec for an additional fee.

1. Make sure nothing is obstructing the equipment on all sides and the back.(Required)

I verify that nothing is obstructing the equipment.

2. Verify the equipment is level. There should be no rocking or instability.(Required)

I verify that the equipment is level.

3a. If applicable, verify adjustment of the leveling feet. There should be 1/4" to 1/2" air space under a Grossing Station, as shown in the image.(Required)

I verify that the feet have been adjusted properly.

I do not have a Grossing Station.

3b. If applicable, please upload an image showing the air space underneath your equipment. Use the photo above as an example.

This is required for grossing stations. For any other equipment, continue to number 4.

Max. file size: 128 MB.

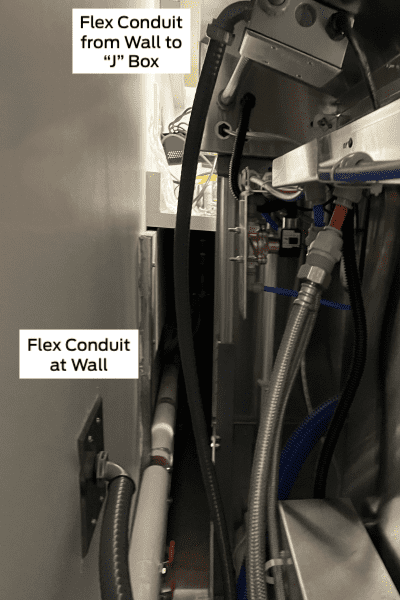

4a. Verify how the power is connected to the unit, as shown in the image. For more information, please see the Product Manual.(Required)

I verify that power is connected to the unit correctly.

4b. Please upload an image showing how the power is connected to the unit. Use the photo above as an example.(Required)

Max. file size: 128 MB.

5. Check to see if the main power switch works properly.(Required)

I verify that the main power switch works properly.

6. Verify the GFCI breakers work properly.(Required)

I verify the GFCI breakers work properly.

7. If applicable, verify the garbage disposal works properly.(Required)

I verify the garbage disposal works properly.

I do not have this option.

8a. If applicable, verify the display screen works properly, as shown in the image.(Required)

I verify the display screen works properly.

I do not have this option.

8b. If applicable, please upload an image showing the display screen working properly. Use the photo above as an example.

This is required for Maestro Grossing Stations. For any other equipment, continue to number 9.

Max. file size: 128 MB.

9a. Check plumbing connections for leaks, as shown in the image.(Required)

I verify that the plumbing does not have leaks.

9b. Please upload an image showing your plumbing does not have leaks. Use the photo above as an example.(Required)

Max. file size: 128 MB.

10a. Verify the factory-installed "P" trap bracket is in place and has not been removed or modified, as shown in the image.(Required)

I verify the “P” trap bracket is in place and has not been removed or modified.

10b. Please upload an image showing your "P" trap bracket is in place. Use the photo above as an example.(Required)

Max. file size: 128 MB.

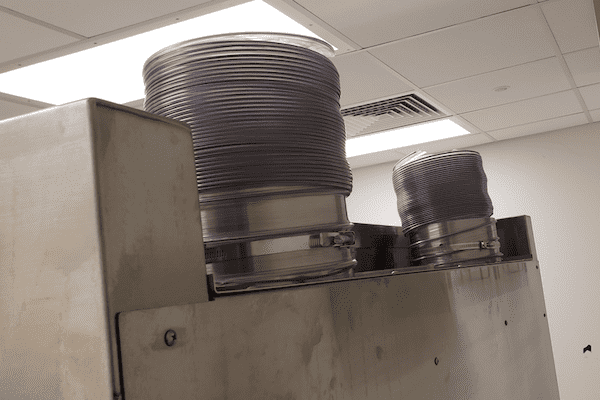

11a. Verify that the ventilation and the band clamps installed on the flexible ducts are connected and working, as shown in the image.(Required)

I verify that the ventilation is connected and working.

11b. Please upload an image showing the ventilation and band clamps are connected properly. Use the photo above as an example.(Required)

Max. file size: 128 MB.

12a. If applicable, some equipment needs to be anchored. Please verify your equipment is anchored correctly, as shown in the image.(Required)

I verify my equipment is anchored correctly.

My equipment does not require being anchored.

12b. If applicable, please upload an image showing your equipment being anchored. Use the above photo as an example.

Max. file size: 128 MB.

13. For floor-mounted and wall-mounted equipment, it needs to be sealed properly. If applicable, verify your equipment has been caulked to the floor or wall correctly.(Required)

I verify my equipment has been sealed to the floor or wall properly.

My equipment does not require being sealed to the floor or wall.

14. If applicable, verify the up/down elevation works properly.(Required)

I verify my up/down elevation works properly.

I do not have this option for my equipment.

15. For wall-mounted sinks, check that the support brackets are bolted to the sink and to the wall securely.(Required)

I verify the support brackets are bolted to the sink and the wall securely.

I do not have a wall-mounted sink.
