PathCam Gross Imaging System
Diagnostics Empowered: Cutting-Edge Pathology Imaging

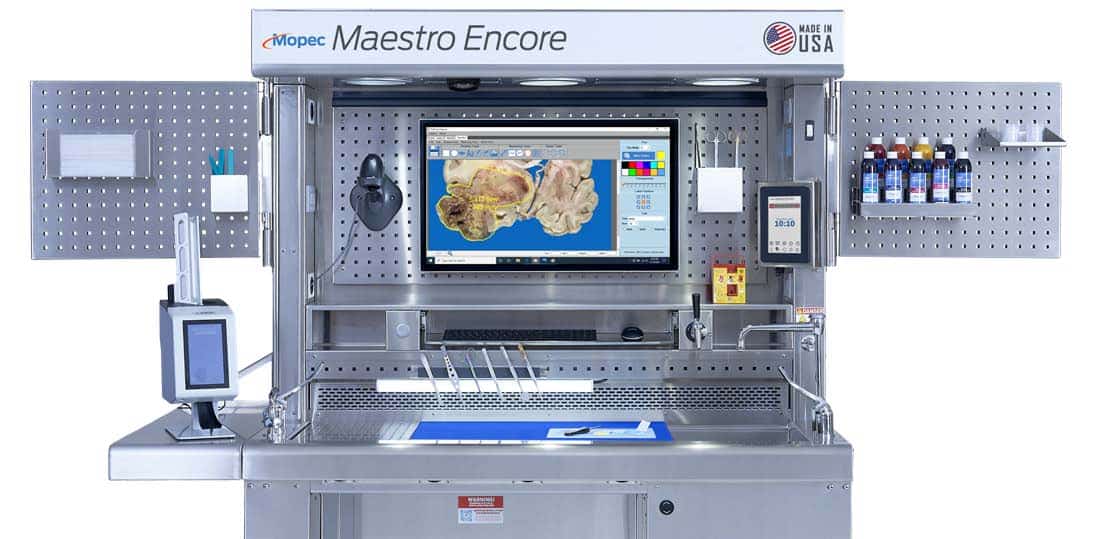

Introducing the PathCam HR Imaging System: a dynamic tool tailored for grossing station applications. Boasting a powerful 24MP Image Sensor, it effortlessly captures ultra high-resolution images, making it an unparalleled choice for publication-quality imagery and impactful poster presentations. On the other hand, the PathCam HD Imaging System, designed with on-screen diagnostics in mind, features broadcast-grade video streaming. It stands out as the go-to system for vivid live demonstrations and interactive teaching sessions.
Computer minimum specs: OS Windows 10; 16 GB RAM; USB 2.0 Port; Full live video frame rates supported; Video editing capable; Keyboard and mouse.
Computer recommended specs: 32GB of RAM; 11th Gen Intel Core i7 Processor; Hard-disk space 1 TB; DDR4 or greater; Iris XE or greater graphics card; USB 3.2; USB C to support USB Hub; Ethernet Port; Wireless Network Card; Powered Peripheral 10-16 Port USB Hub to support: keyboard, mouse, touchscreen monitor, foot pedal, barcode scanner, microphone headset, PathCam MICRON (add-on microscope camera); Washable, medical-grade keyboard and mouse.
Please note, these items are required but not included. These items must be customer provided or priced separately.
Description
The PathCam HR Imaging System provides all of the features and capabilities you need for grossing station use, while the PathCam HD Imaging System is perfect for live streaming and teaching use.
High Definition Video & Image Capture Combined In One

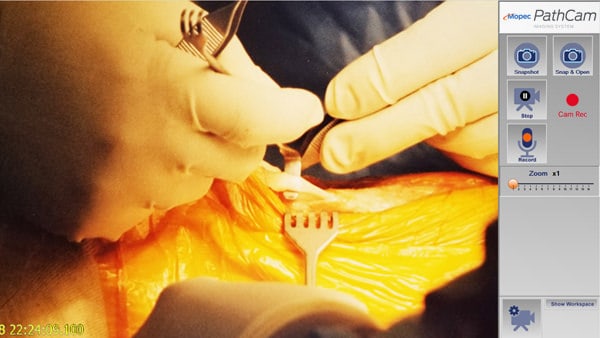

The PathCam HD camera allows for a continuous live stream of video content for video conferencing, video recording, or image “snapshot” capture. Its HD quality footage, 10X optical zoom and auto focus combined with simple intuitive software controls, guarantees foolproof results for the amateur user.
SMART MEASURE
PathCam Imaging System with its proprietary camera to software programming is the first of its kind with the capacity to measure distances and area in images taken by a non-fixed camera.
Camera Mounted

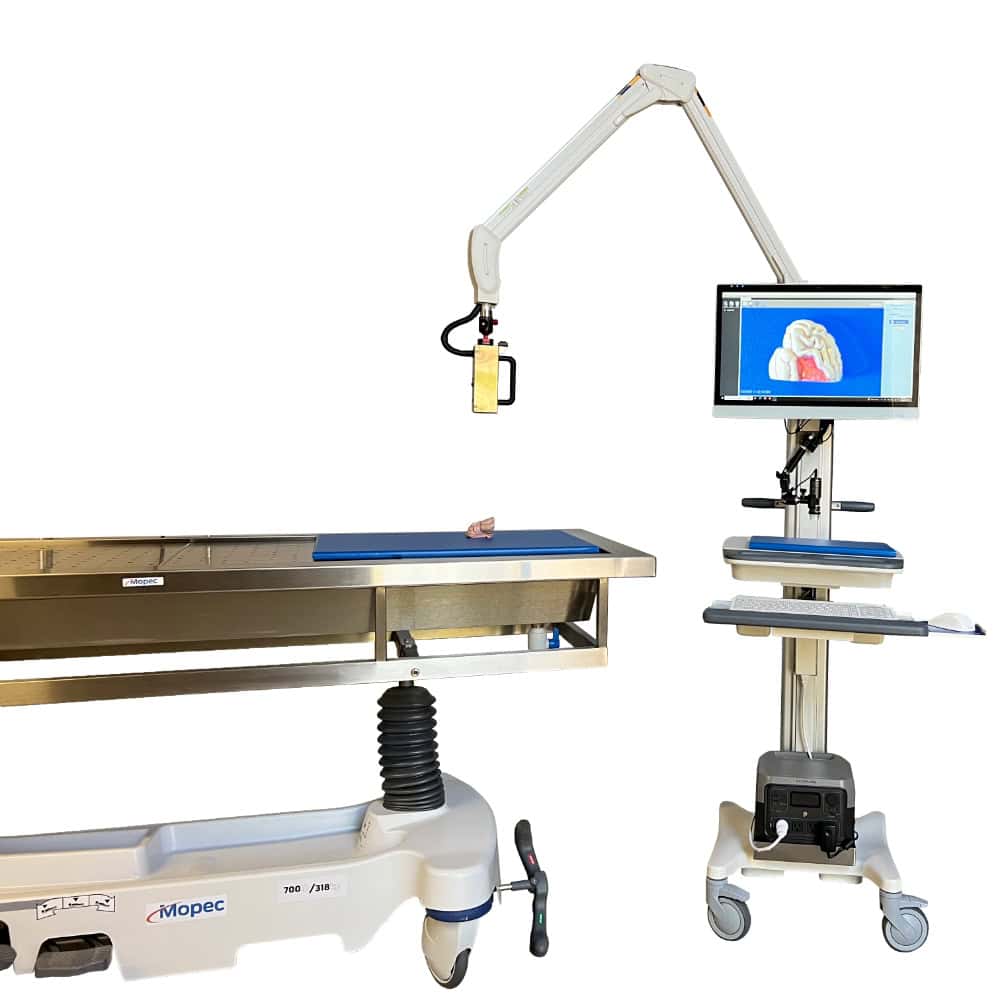

The camera can be attached to a limitless rotation dissection light or directly to an articulating arm that then can be mounted to a ceiling, wall, floor stand, or portable cart. All mounting options can be customized to suit any environment. Our unique patent pending quick-release handle allows for on-the-fly operation to capture critical live moments from any angle.
Open Architecture Design Provides Unparalleled Compatibility

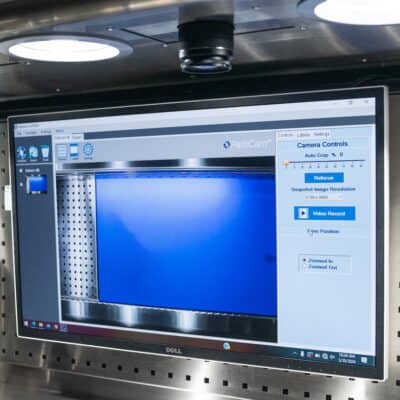

The PathCam Imaging Systems combine robust and easy-to-use software and hardware that works within the standard user experience of Windows OS and delivers non-proprietary universal file formats for unlimited use in third party software. The open architecture design allows for copy and paste functionality within a drag and drop file management browser system that integrates seamlessly with any University or Hospital credential access network server for storage of its content. Both PathCam HD and HR cameras are VISCA compliant. The PathCam HD camera is compatible with multi-monitor switching software, which is ideal for the laboratory classroom experience, where each camera can project to multiple monitors within one classroom or set up to project to remote monitors. Stand-alone PathCam software licenses are available to students and pathologists at bulk rates for viewing image and video content and annotating on images away from the lab.
Additional information
| Options | PathCam HR System with Software, PathCam HD System with Software |
|---|
