Hydraulic Dissection Cart with Optional Tops & Ventilation

Please Request a Quote for Pricing

Standard Features

  • Twin pedestal hydraulics for easy foot activated elevation
  • Tilt-able top frame
  • Four heavy duty 8″ casters with total lock
  • Weight capacity: Approximately 500 lbs

Dimensions

  • DC000: 53″ L x 31.25″ W
  • DC100, DC300, DC600 & DC850: 80.5″ L x 32″ W
  • HB300: 86″ L x 30″ W

Range of Motion

  • Elevates from 30.25″ to 43.75″

Controls

  • Brake lever on both sides and one on end
  • Elevating pedals on both sides

Compatibility

Clear

Description

The DC Series tilting/elevating autopsy carts are used in conjunction with wall mounted autopsy sinks or as a simple viewing stretcher. The autopsy cart incorporates hydraulic lifting cylinders allowing for either end to be elevated and/or tilted. Dual side mounted foot controls allow for simple elevating/tilting from either side.

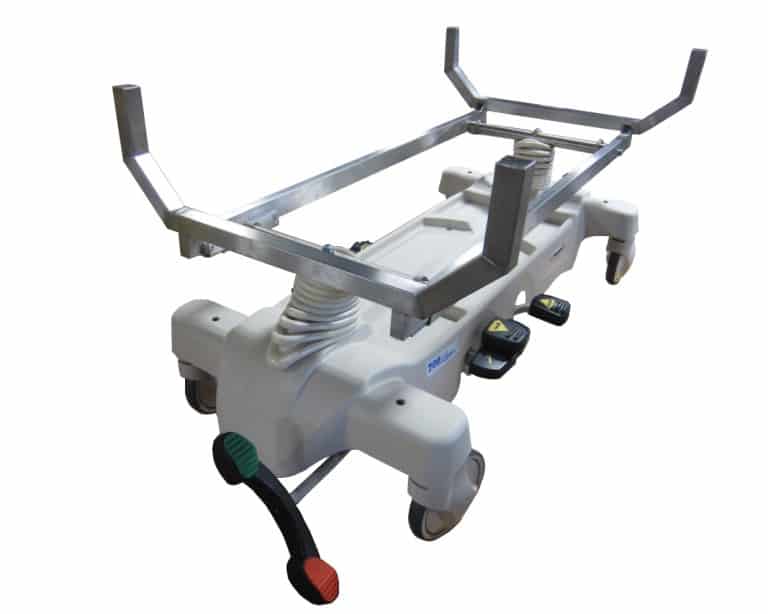

No Top / Chassis Only: DC000

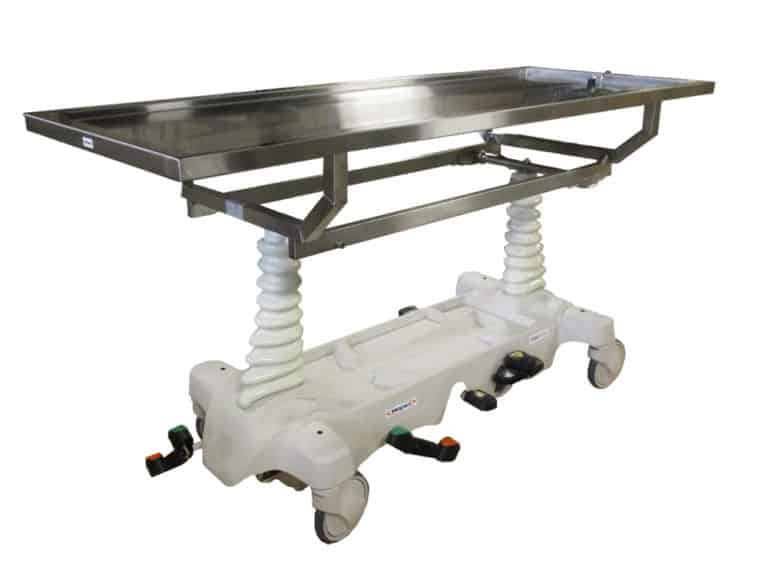

Standard Stainless Steel Top: DC100

Inner Trough Stainless Steel Top: DC300

Fiberglass X-Ray Top: DC600

Tan Plastic X-Ray Top: DC850

Ventilated Stainless Steel Top: HB300

Additional information

Top Option

No Top/Chassis Only, Standard Stainless Steel Top, Inner Trough Stainless Steel Top, Fiberglass X-Ray Top, Tan Plastic X-Ray Top, Ventilated Stainless Steel
