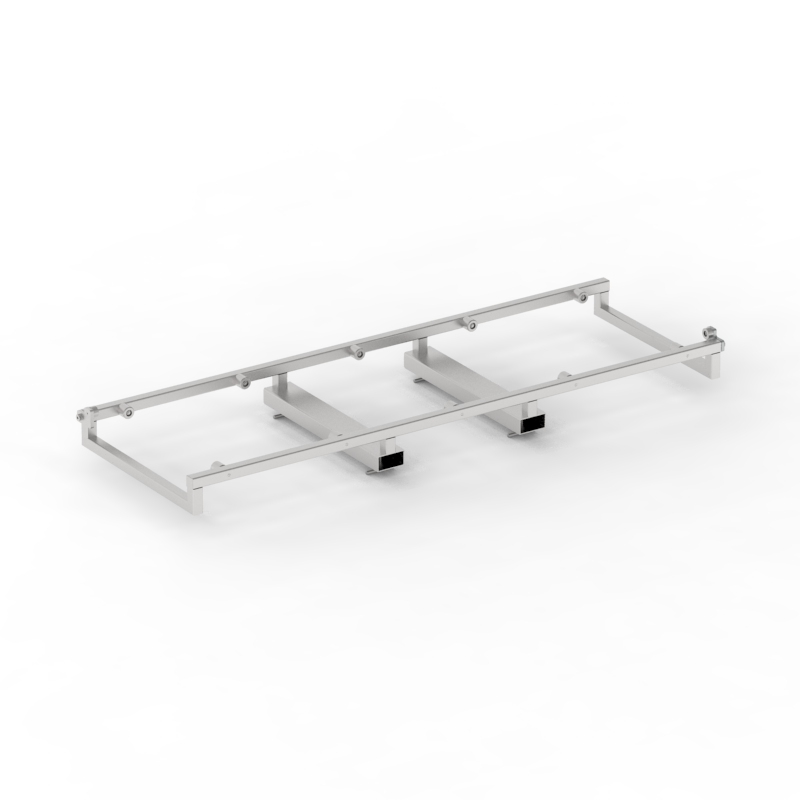

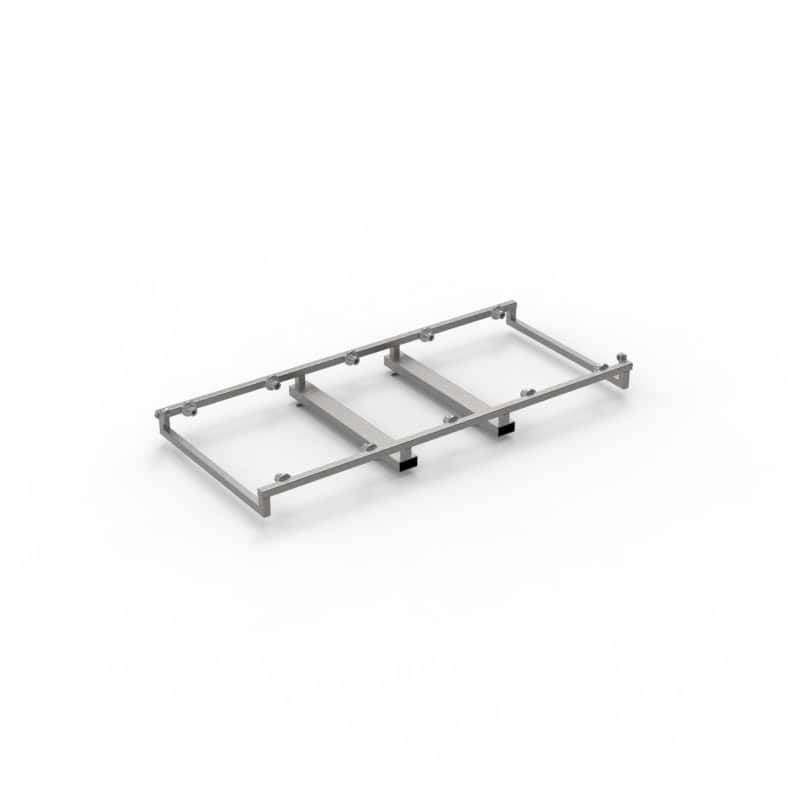

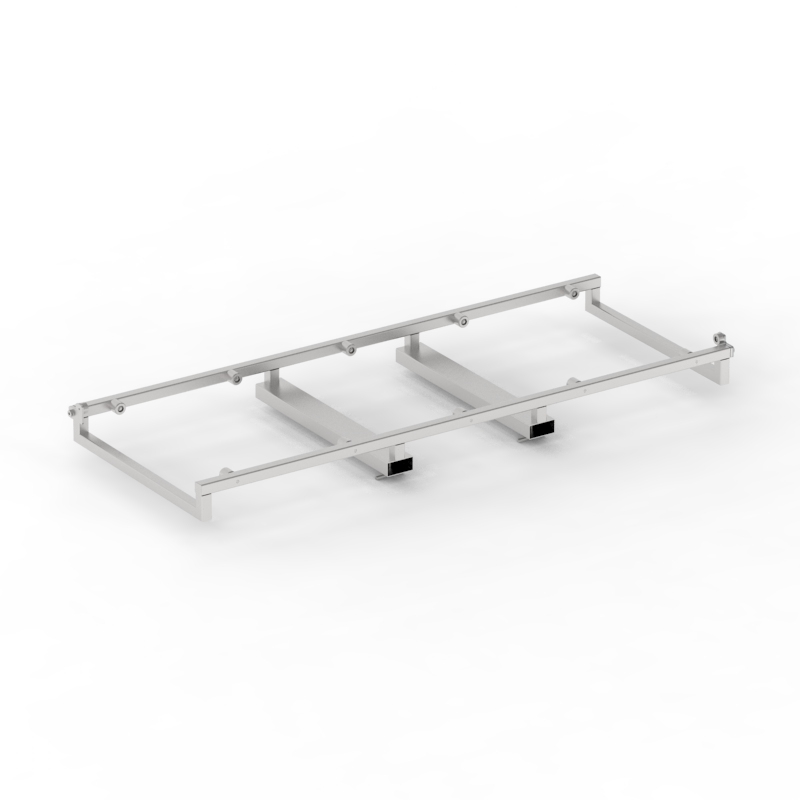

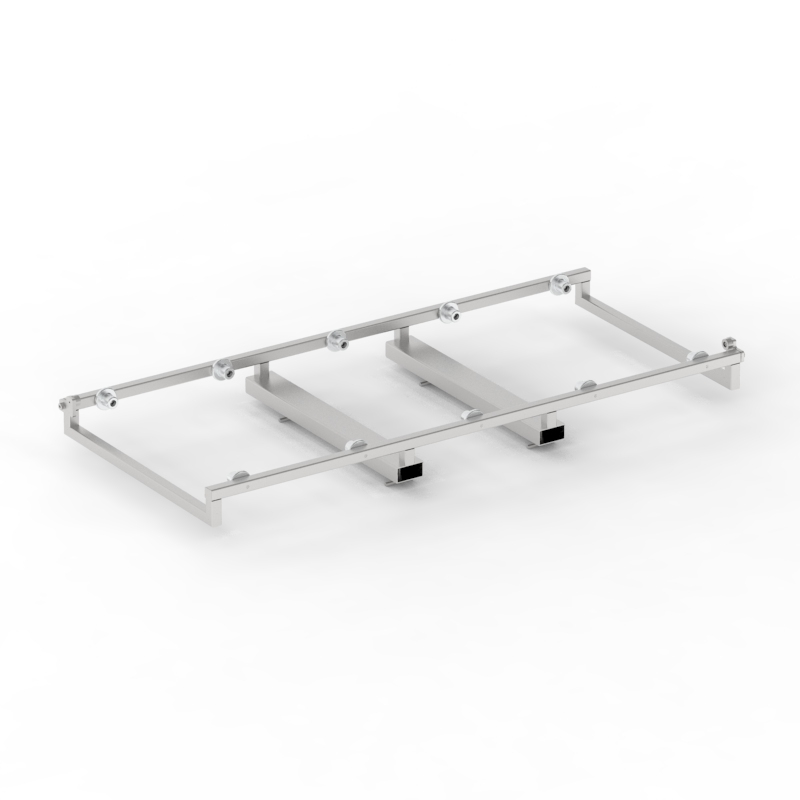

Roller Pallet Assembly – M600H Series

Construction

• M600H-23 and M600H-27: For use with corresponding JC Series trays (sold separately)
• M600H-31: For use with GA031 trays (sold separately)
• (10) Nylon rollers to allow for smooth movement of trays on the pallet
• Safety Latches with Bumpers on either side of the assembly to secure the tray in place during moving.

Materials

• 11ga 1.5” SQ 304 stainless tubing construction with a 180-grit finish
• Nylon Rollers

Dimensions

• M600H-23: Assembly: 81.8” L X 26.5” W X 5.0” H
• M600H-27: Assembly: 81.8” L X 30.5” W X 5.0” H
• M600H-31: Assembly: 85” L X 35.3” W X 5.0” H
• Fork Pockets: 2.0” T X 4.0” W X 0.125” thick

Capacity

• 500 lbs

Compatibility

• M600H-23: JC023 and JC023D trays
• M600H-27: JC027 and JC027D trays
• M600H-31: Ga031 tray
• All compatible with M678 Hydraulic Lift
  JD405, JD450, and JD451 Forklifts with JD460 Forks
• Note: Not for use with hand crank lifts, use M600C Series instead.

Note: Trays sold separately
