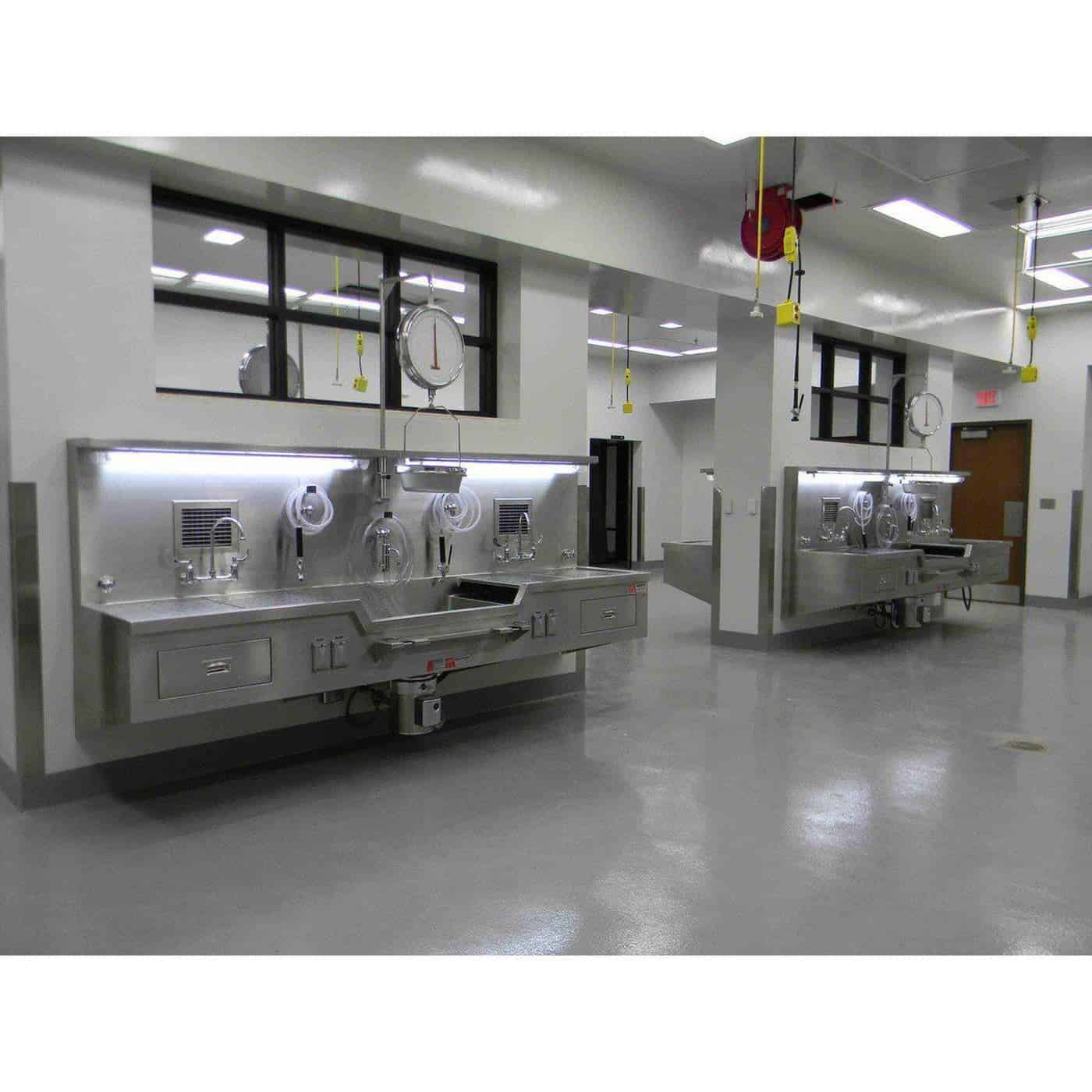

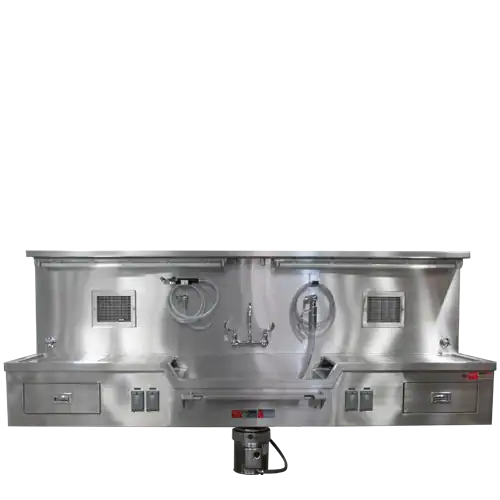

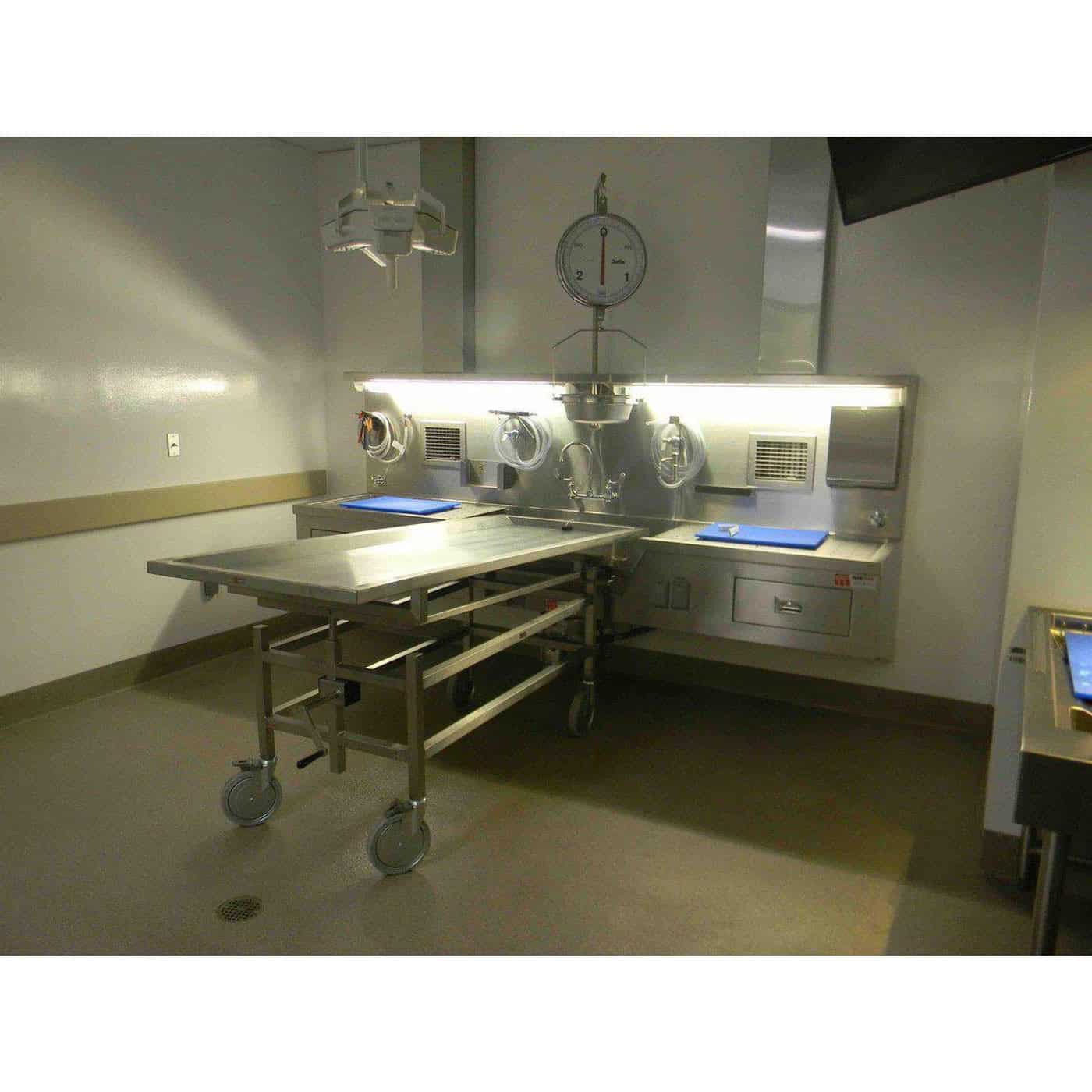

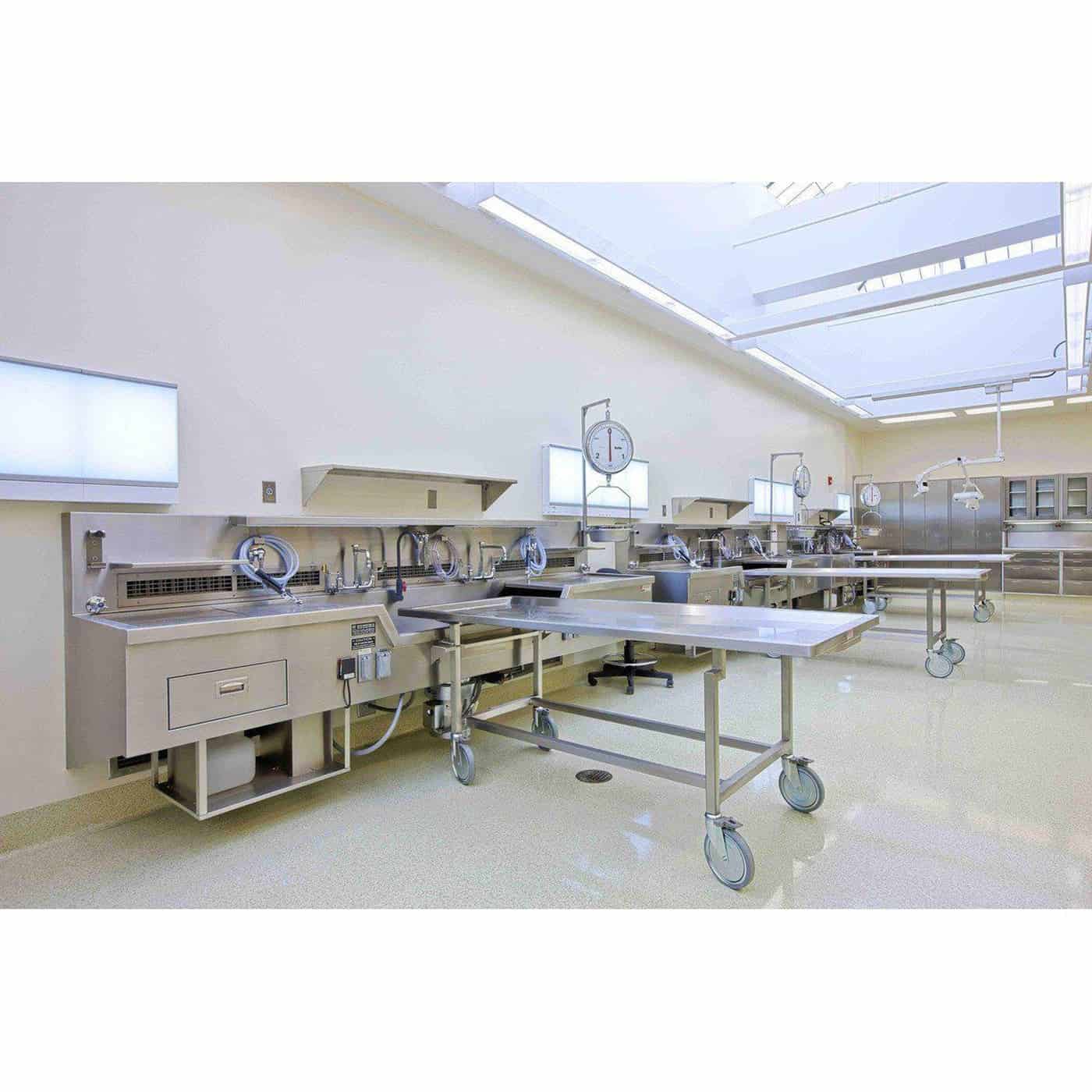

Wall Mounted Autopsy Station, Center Sink (1036-10)

Construction

• TÜV Certified
• Grid plate work surfaces with ½” recessed holes to allow for drainage
• 10’ Spray hose assembly that can comfortably reach the length of the sink
• (2) Large instrument drawers
• (2) End rinses that drain into a common sink
• Cart latch works with most Mopec Carts except those with hydraulic bases
• Wall mounted passive ventilation through Facility-provided HVAC
• Cart-latch mechanism with operation handle which can be accessed from either side of the carrier
• Plumbing and electrical lines are factory-installed and require only minimum installation
• (2) GFCI duplex receptacle with waterproof cover
• Heavy-duty commercial waste disposer, 1/2 hp and (2) switches
• Light fixtures over work areas
• Deluxe aspirator with reverse flow for additional waste removal: “reverse flow” feature instantly relieves suction clogging by providing a reverse flow of water

Utilities / Power

• 2-Duplex GFCI 120V / 60Hz outlets, Requires 2- 15-amp circuits, one for station, one for disposal
• 1/2” Hot water, 3/4” Cold Water connection dropping to ½” after RPZ valve, and 1-1/2” Drain for water hookup
• Provide 60-65 psi of water pressure at 4 Gallons per minute for proper operation of hydro aspirator
• Uses facility ventilation Capable of 700CFM at 0.25 w.g.
• Recommended Supply 300-350 CFM X 2 Grilles, 600-700 CFM total

Materials

• 14-18 gauge 304 stainless steel with a #4 finish
• Pex piping for plumbing purposes
• Chrome plated brass fixtures

Dimensions

• 114” L x 29” W X 50” H
• Sink Dimensions: 16” L X 30” W X 6.0” D
