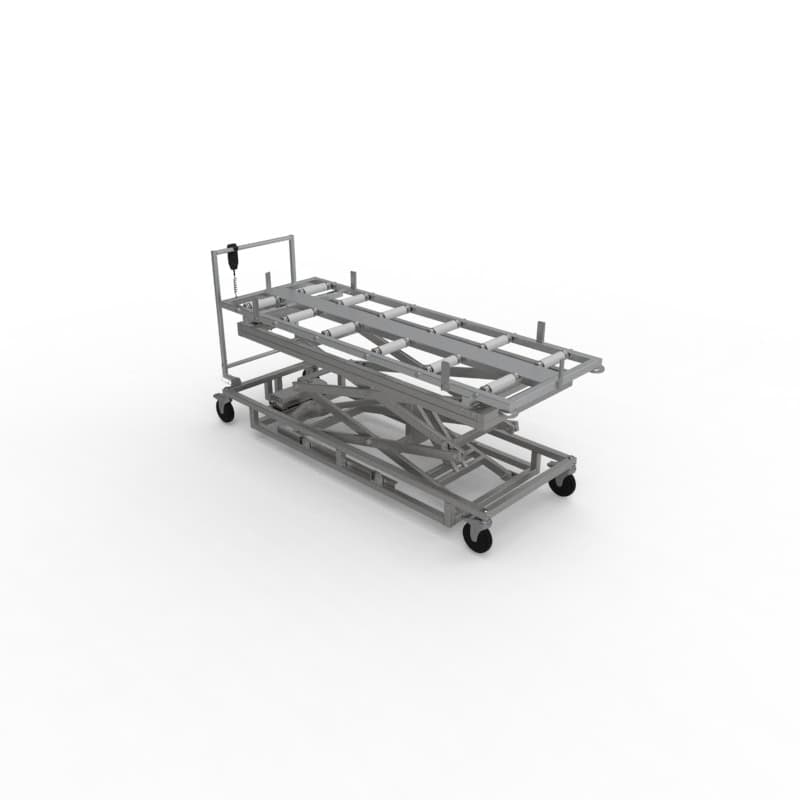

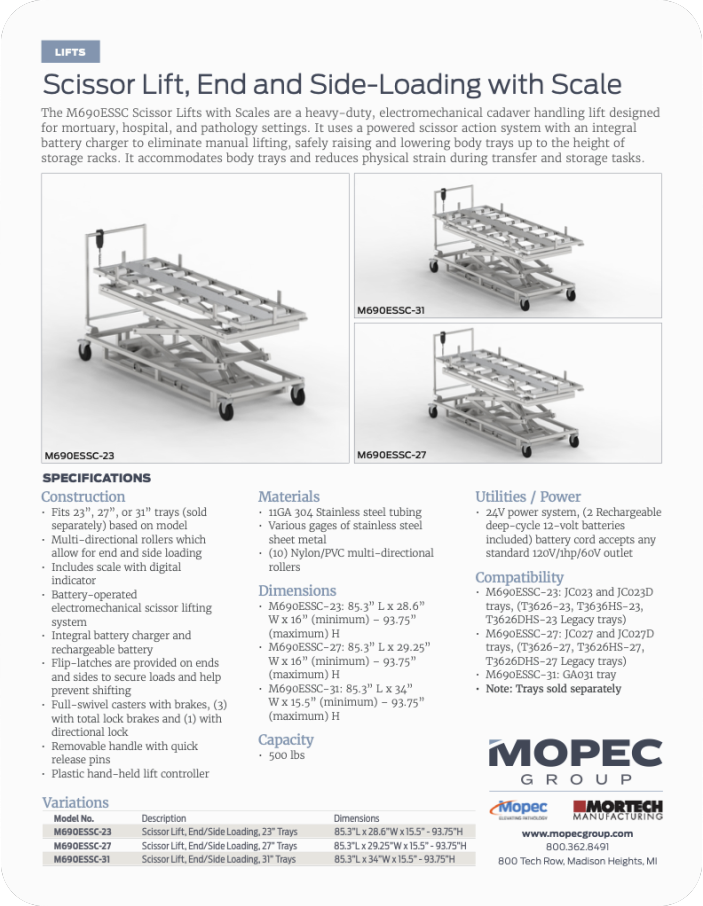

Scissor Lift, End and Side-Loading with Scale (M690ESSC Series)

Construction

• Fits 23”, 27”, or 31” trays (sold separately) based on model
• Multi-directional rollers which allow for end and side loading
• Includes scale with digital indicator
• Battery-operated electromechanical scissor lifting system
• Integral battery charger and rechargeable battery
• Flip-latches are provided on ends and sides to secure loads and help prevent shifting
• Full-swivel casters with brakes, (3) with total lock brakes and (1) with directional lock
• Removable handle with quick release pins
• Plastic hand-held lift controller

Materials

• 11GA 304 Stainless steel tubing
• Various gages of stainless steel sheet metal
• (10) Nylon/PVC multi-directional rollers

Dimensions

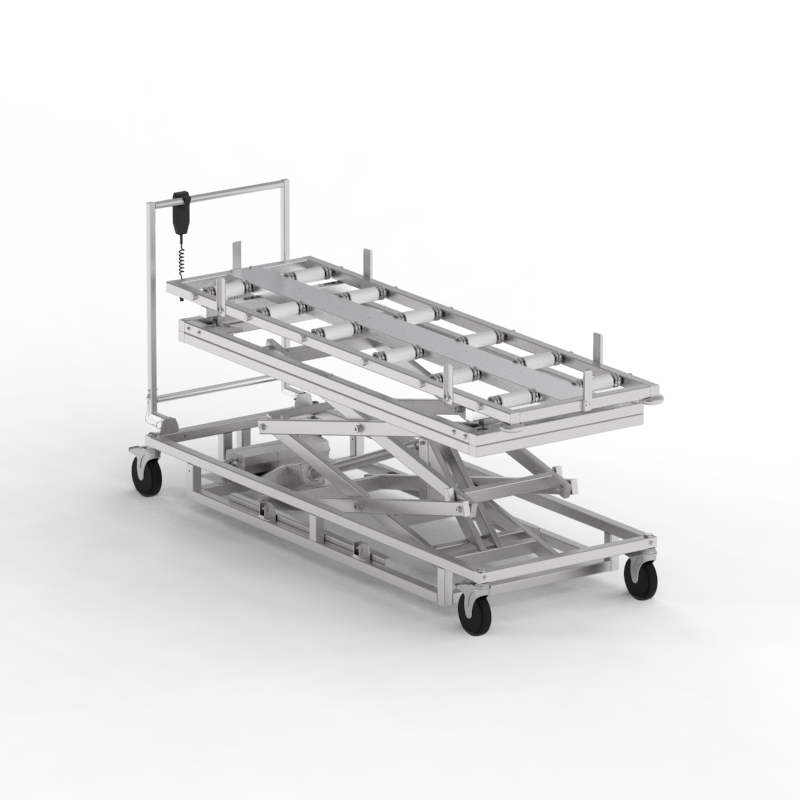

• M690ESSC-23: 85.3” L x 28.6” W x 16” (minimum) – 93.75” (maximum) H

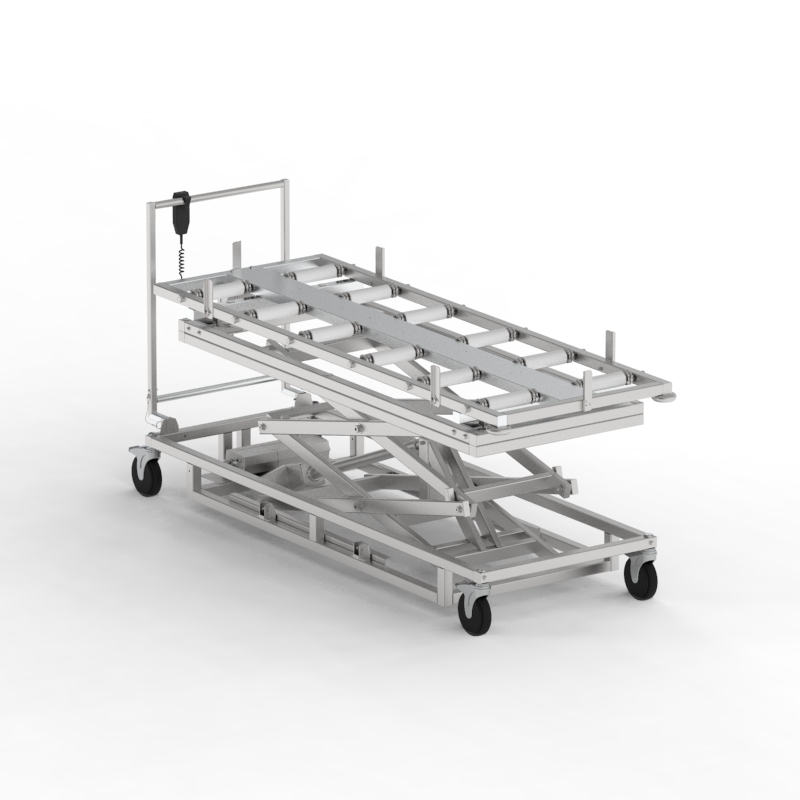

• M690ESSC-27: 85.3” L x 29.25” W x 16” (minimum) – 93.75” (maximum) H

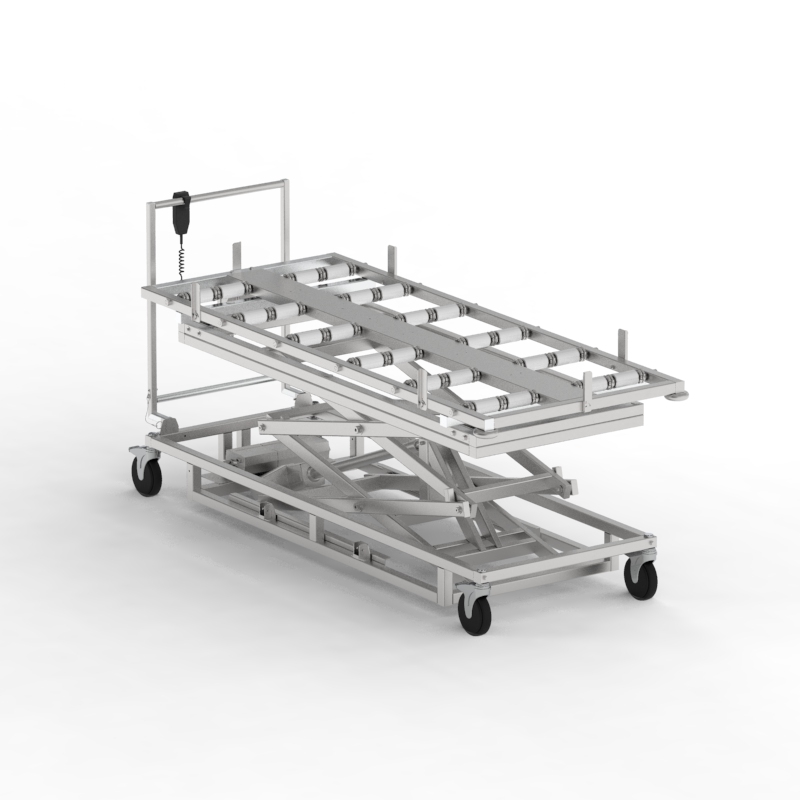

• M690ESSC-31: 85.3” L x 34” W x 15.5” (minimum) – 93.75” (maximum) H

Capacity

• 500 lbs

Utilities / Power

• 24V power system, (2 Rechargeable deep-cycle 12-volt batteries included) battery cord accepts any standard 120V/1hp/60V outlet

Compatibility

• M690ESSC-23: JC023 and JC023D trays, (T3626-23, T3636HS-23, T3626DHS-23 Legacy trays)
• M690ESSC-27: JC027 and JC027D trays, (T3626-27, T3626HS-27, T3626DHS-27 Legacy trays)
• M690ESSC-31: GA031 tray

Note: Trays sold separately
