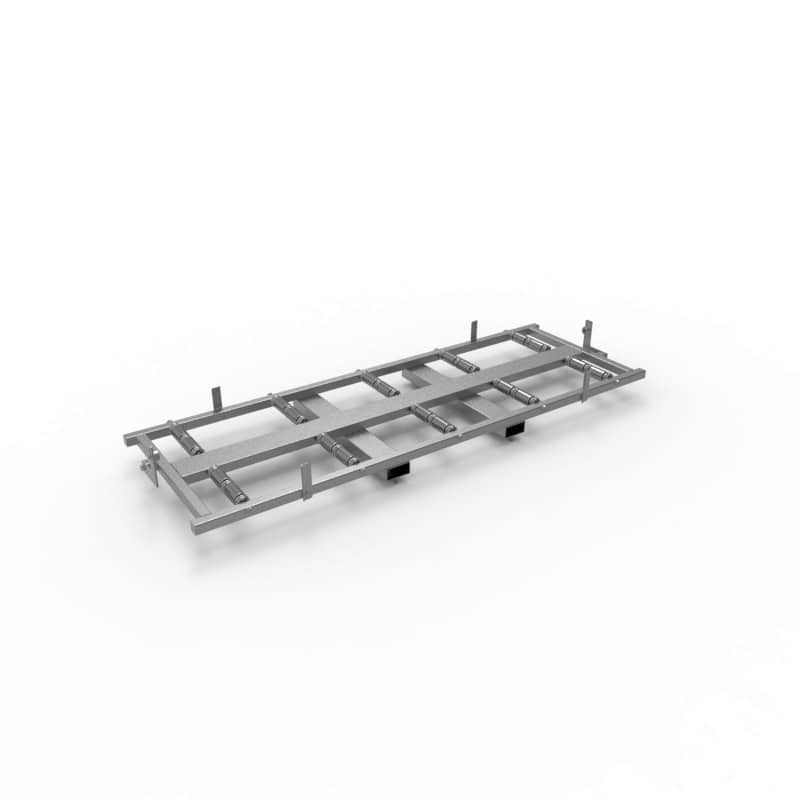

Roller Pallet Assembly, End/Side Loading – M601H-ES Series
Construction
- For use with JC Series trays (not included)
- (10) multi-directional rollers
- Safety latches with bumpers on the ends of the assembly and safety side flip latches to secure the tray in place during moving.
Materials
- 11ga 1.5” SQ 304 stainless tubing construction with a 180-grit finish
Dimensions
- M601H-ES-23: Assembly: 80.5” L X 23.5” W X 1.5” H
- M601H-ES-27: Assembly: 80.5” L X 27.5” W X 6” H
- Fork Pockets: 2.0” T X 4.0” W X 0.125” thick
Capacity
- 500 lbs
Compatibility
- M601H-ES-23: JC023 and JC023D trays
- M601H-ES-27: JC027 and JC027D trays
- Both: M-678 Hydraulic Lift
JD405, JD450, and JD451 Forklifts with JD460 Forks - Note: Not for use with hand crank ifts
Note: Trays sold separately.
Description
The Mopec Roller Pallet Assembly is a sturdy platform designed for efficient end or side loading of cadaver trays. Its heavy-duty roller system ensures smooth movement. Built with a durable steel frame, it offers reliable, long-lasting performance for mortuary, pathology, and laboratory environments.
Download Specs
M601H-ES-23 Drawing
M601H-ES-27 Drawing
Additional information
| Tray Size | 23", 27" |
|---|
