PathCam Wall Mount System – AX250

Construction

  • (1) 42” Wall-mount track
  • (1) 10” Wall-mount track
  • (1) Articulating Camera arm with 60” reach
  • (1) Vertical CPU holder for 10” wall track
  • Mounting hardware for wall tracks included

Materials

  • Powder-coated cast aluminum grade 6061
  • 304 stainless steel construction with a polished No. 4 finish

Dimensions

  • Articulating Camera Arm:
    • Maximum Reach: 62” (wall surface to camera-mounting mid-point)
    • Minimum Reach: 20”
    • Rear pivot to mid-point of arm: 31”
    • Vertical CPU holder size Range: 1-3/8” to 3-3/4”
    • Keyboard Arm: 17.9”- 22.3” L x 33.5” W x 16.1” H
    • Monitor Arm: 12.3” L x 10.2” W x 17.2” H

Performance

  • Has several pivot points to articulate up and down, and side to side.
  • Can pivot at the wall, swivel, and tilt to optimize camera-viewing angle
  • Can be pulled out when in use, then pushed back when not in use.

Compatibility

  • Compatible with PathCam HD and HR Cameras
  • AX032 Keyboard Arm
  • AX034 Monitor Arm
  • AX047 PathCam Foot Pedal Command

Description

The PathCam wall mount system enhances pathology workflow by integrating an articulating keyboard arm, monitor arm, and camera arm for ergonomic, space-saving digital documentation. Designed for use at grossing stations, it improves efficiency, accuracy, and collaboration in clinical settings through seamless integration of digital systems.


Download AX250 Specs

AX250 Spec Sheet

Download AX250HD Drawing

AX250HD Drawing

Download AX250HR Drawing

AX250HR Drawing

Additional information

PathCam Model

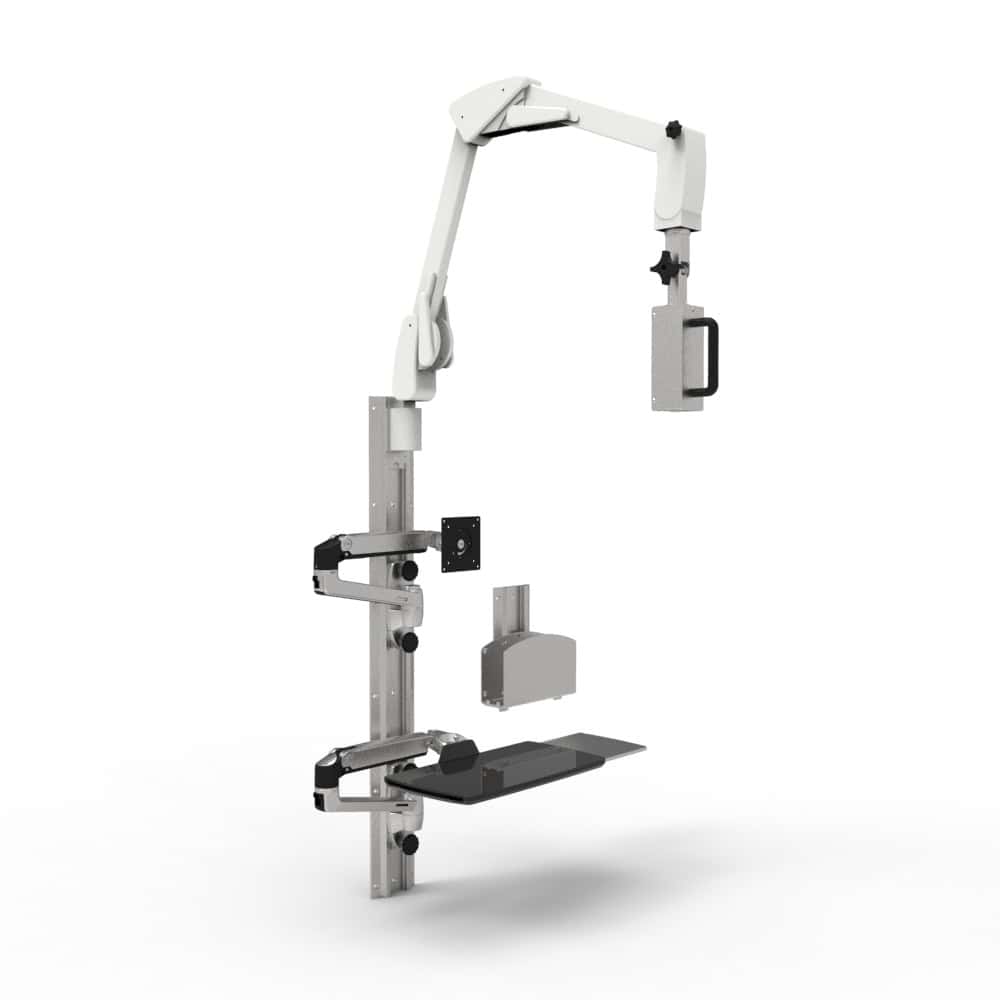

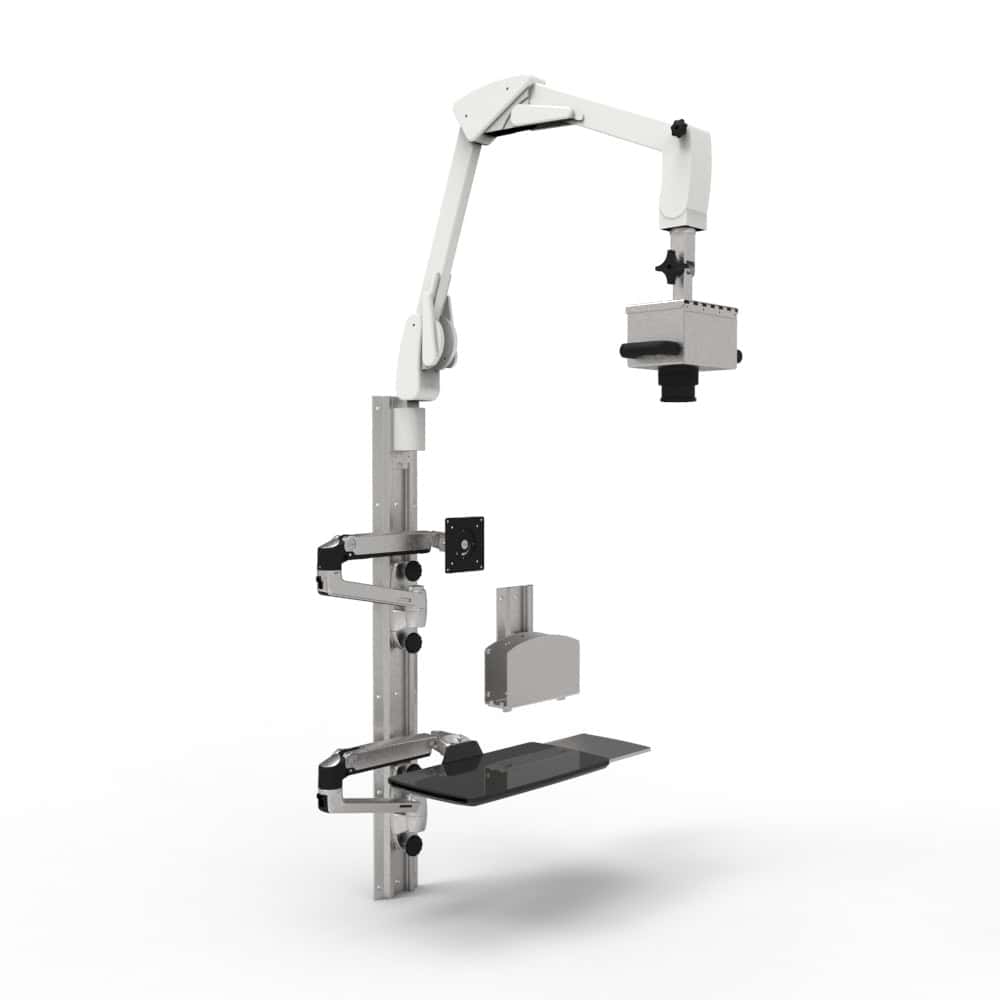

PathCam HD (AX250HD), PathCam HR (AX250HR)
