Maestro Hand Spray and End Rinse – MB1036

Construction

• Designed for customers to rinse off the entire workstation of their grossing station
• Includes (1) sprayer, (1) 60” hose, (1) end rinse bar, flow control fixture, plumbing and fittings
• The flow for the hand spray and for the end rinse are controlled by separate valves

Dimensions

• 60” hose
• Rinse bar: 16.3” L x .75” W x .75” H

Materials

• Hand sprayer with soft spray: chrome-plated brass
• Rinse Bar and Sheetmetal: 304 stainless steel construction with a polished No. 4 finish
• Hardware: 304 stainless steel
• Plumbing lines and fittings: brass, pex, and stainless steel

Performance

• Mixing valve/flow control fixture with vacuum breaker
• Backflow preventers on both hot and cold-water lines

Options & Accessories

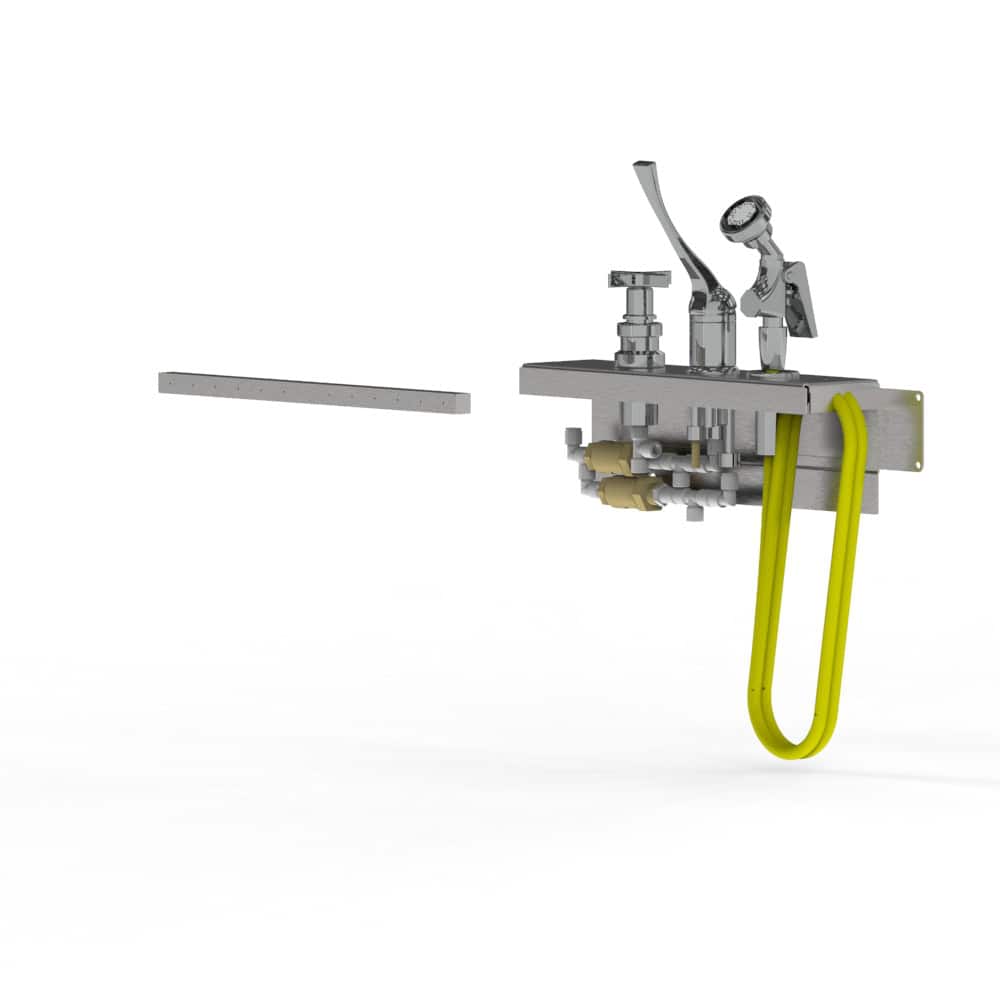

• MB1036L: designed for left-hand Maestro grossing stations

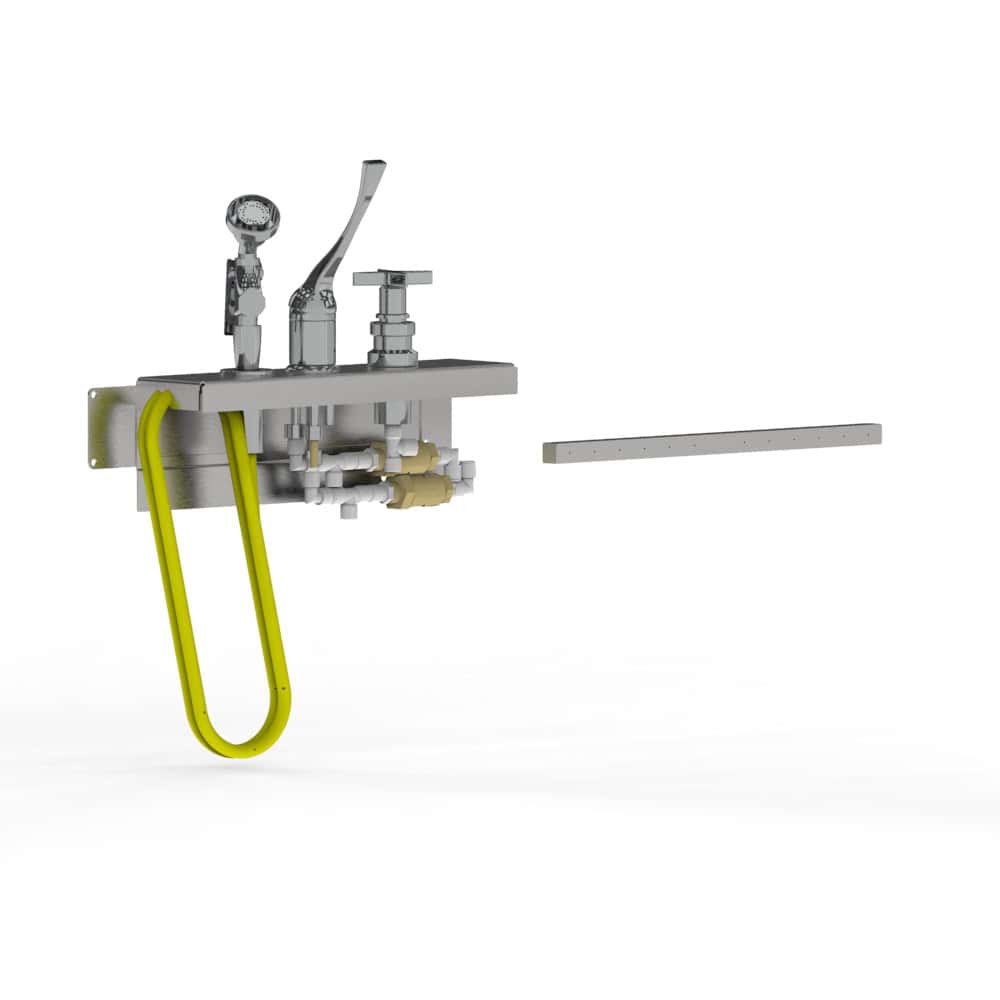

• MB1036R: designed for right-hand Maestro grossing stations

Compatibility

• Compatible with all Maestro grossing stations that do not currently have this option

NOTE: For stations adding this option where it had not previously existed, it would include a new endcap to the work surface with a hole for the hand spray to retract inside the station

NOTE: The Hand Spray Rinse only now comes standard in all Maestro Encore grossing stations
