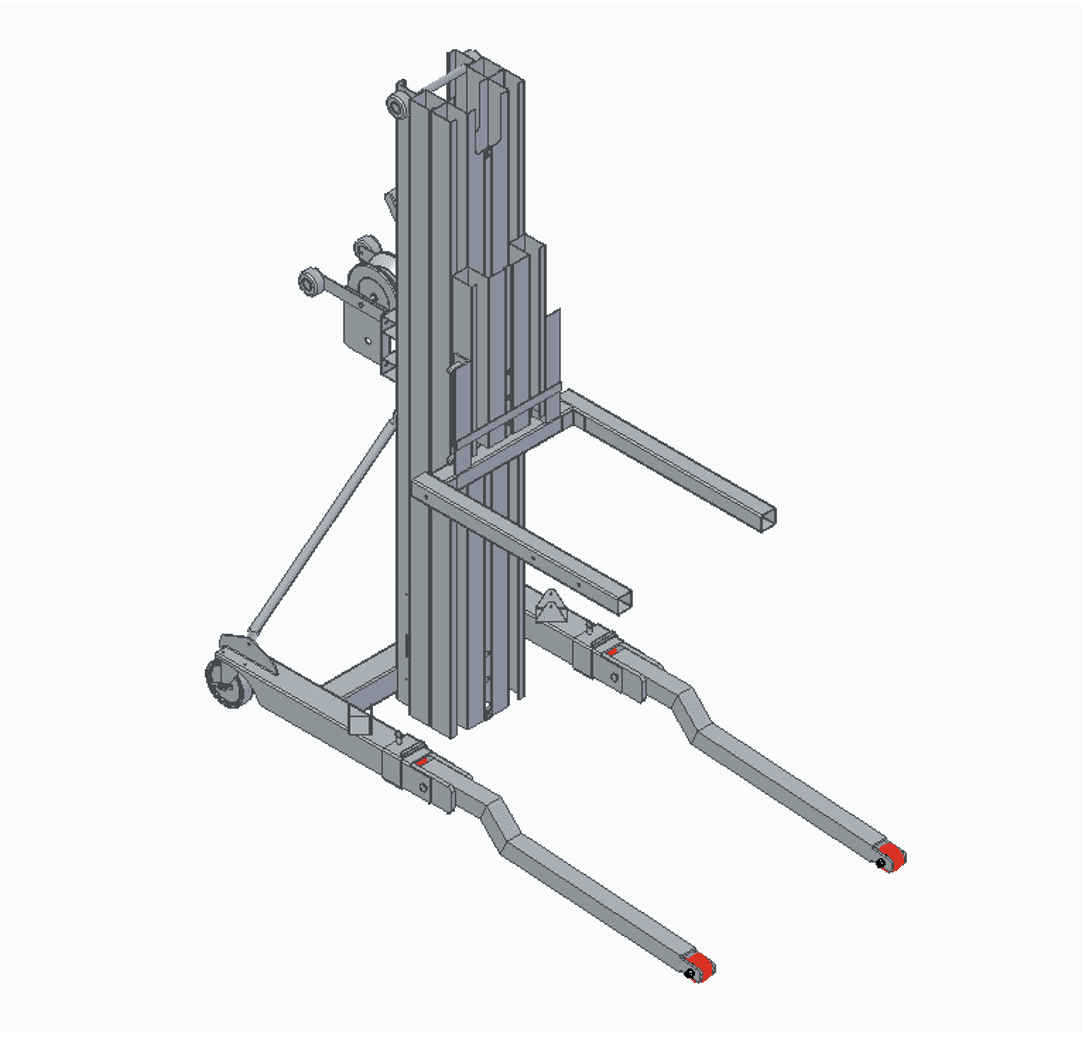

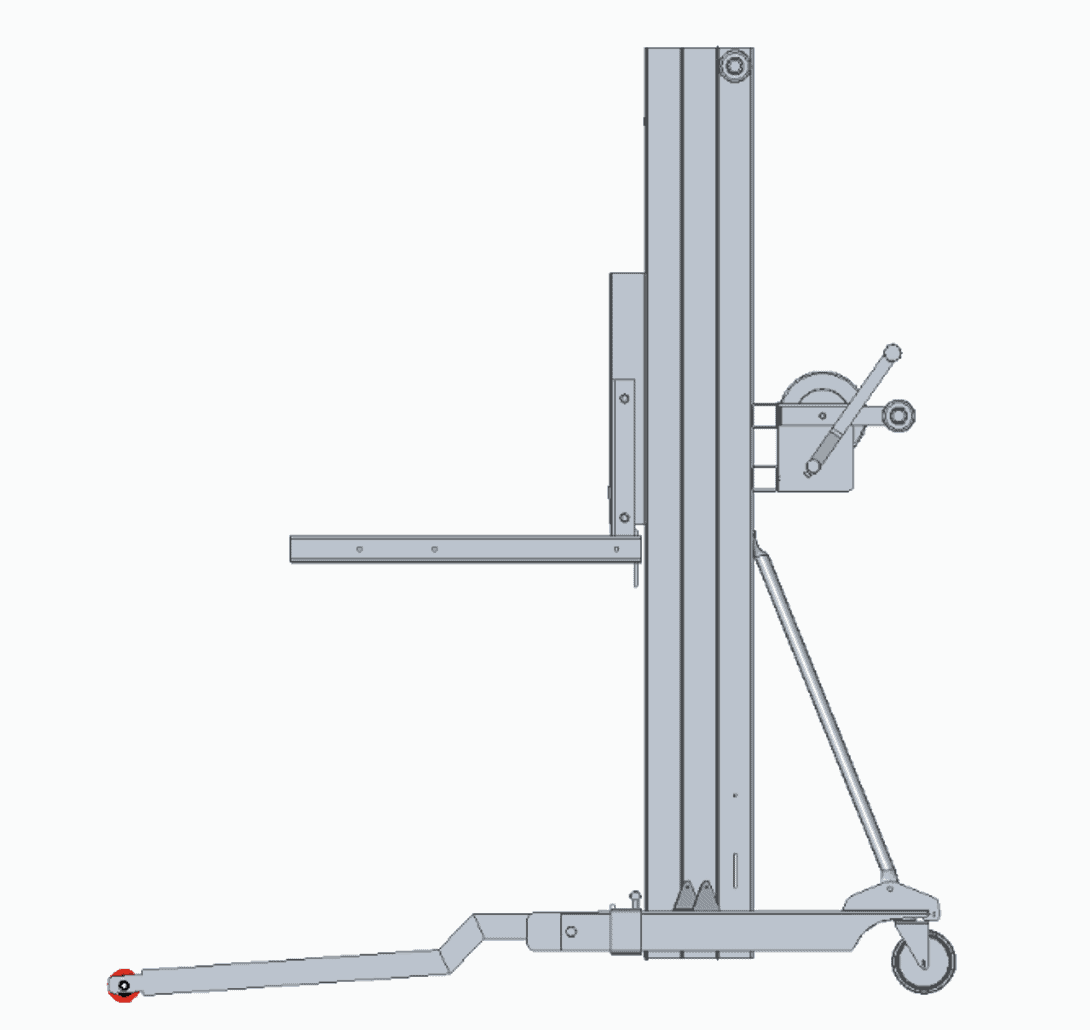

Lift – Hand Crank with Low Profile Legs – JD715


  • Heavy-duty steel construction with an aluminum housing
  • (2) 5” Rear swivel casters w/brakes
  • (2) 2.5” Front wheels


  • Width: 31.25”
  • Depth: 67.50”
  • Height: 76”


  • Lift Max. Height: 125” (w/ forks reversed)
  • Lift Max. Height: 103”(w/o forks reversed)
  • Low Min. Height: 6”


  • Handles are removable when not in use
  • Reversible Forks: By pulling plunger pins, forks can be repositioned for added height
  • Ideal for compact storage
  • Load Capacity: 1000 lbs


  • Highly reliable, single-speed winch
  • Leg-lock mechanism releases with the push of a button and locks in the stored position

Options & Accessories:

  • Fork extensions
Read More


The JD715 is a modified JD710 with low profile legs to work with a DC100, JA500, JA600 or JA620 cart bases. Folding lift legs retract for compact storage and movement through narrow doorways. Powder coated paint finish frame for long lasting and durable finish. Base and stabilizer are welded steel for extra support. The cadaver lift is a free rolling lift that can be used alone or along with the JD400 Roller Pallet, JD500 Tray Lifting Bars or the JD600 Body Lift Bar.
