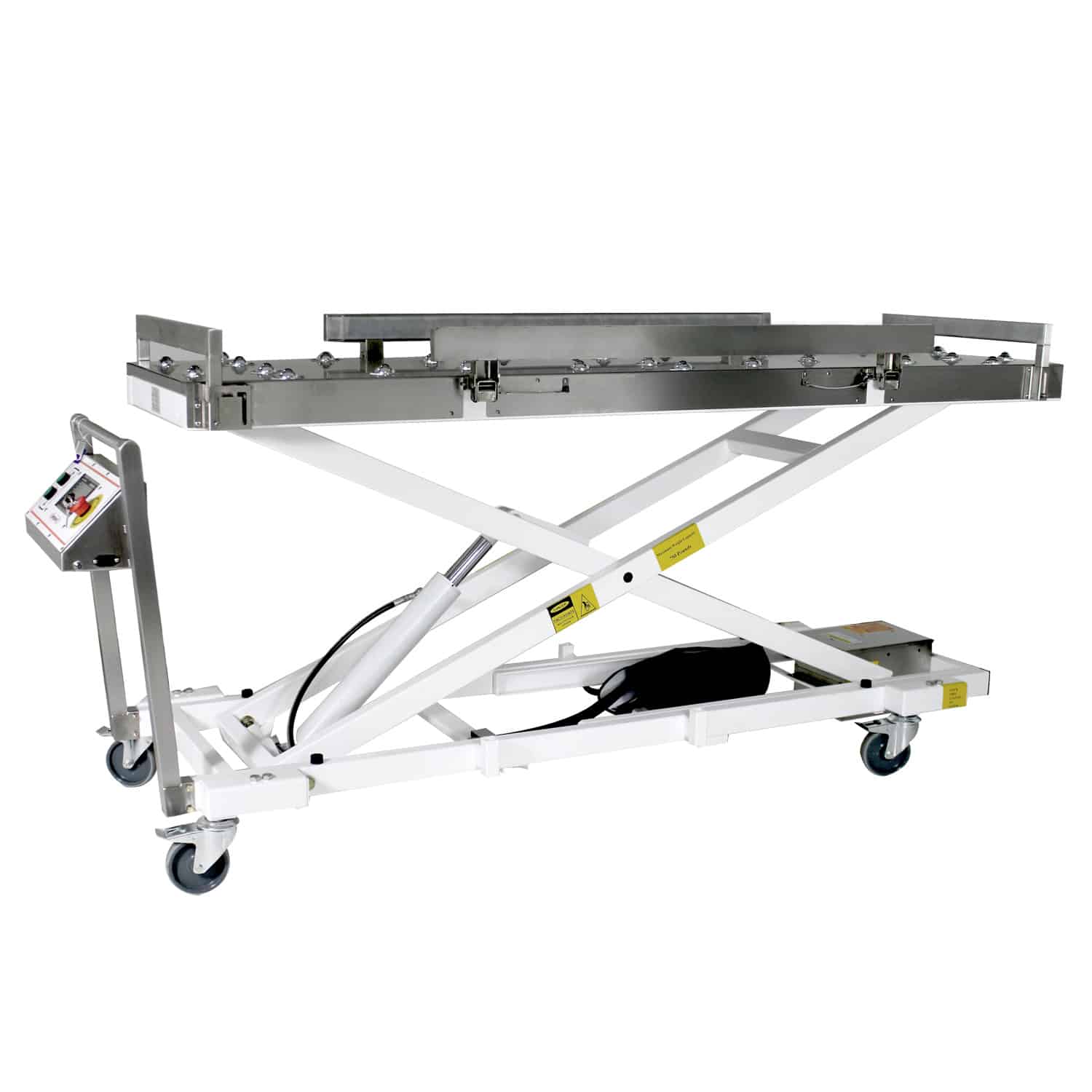

Red Wing Five Tier Roller Ball Lift – JD5000

Please Request a Quote for Pricing

Construction

  • Powder-coated steel
  • Single scissor operation

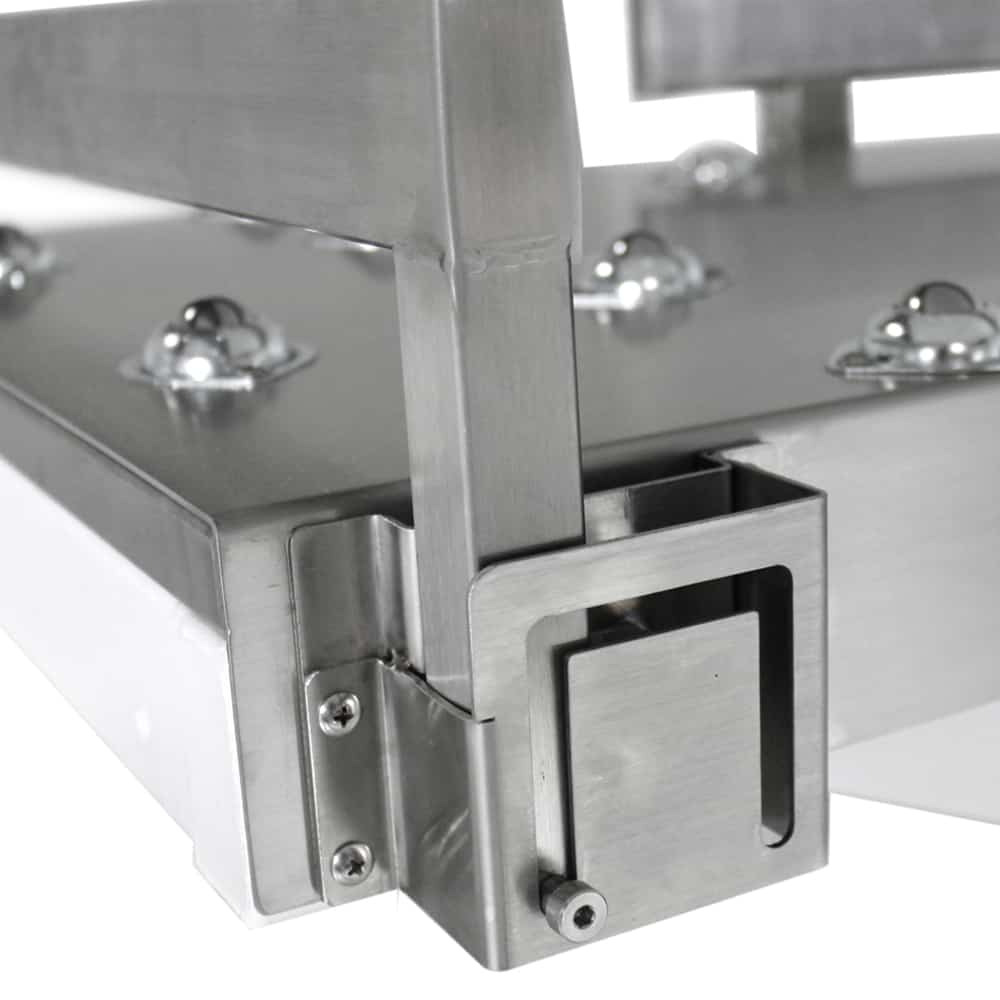

  • Fixed front handle & removable side handle for steering

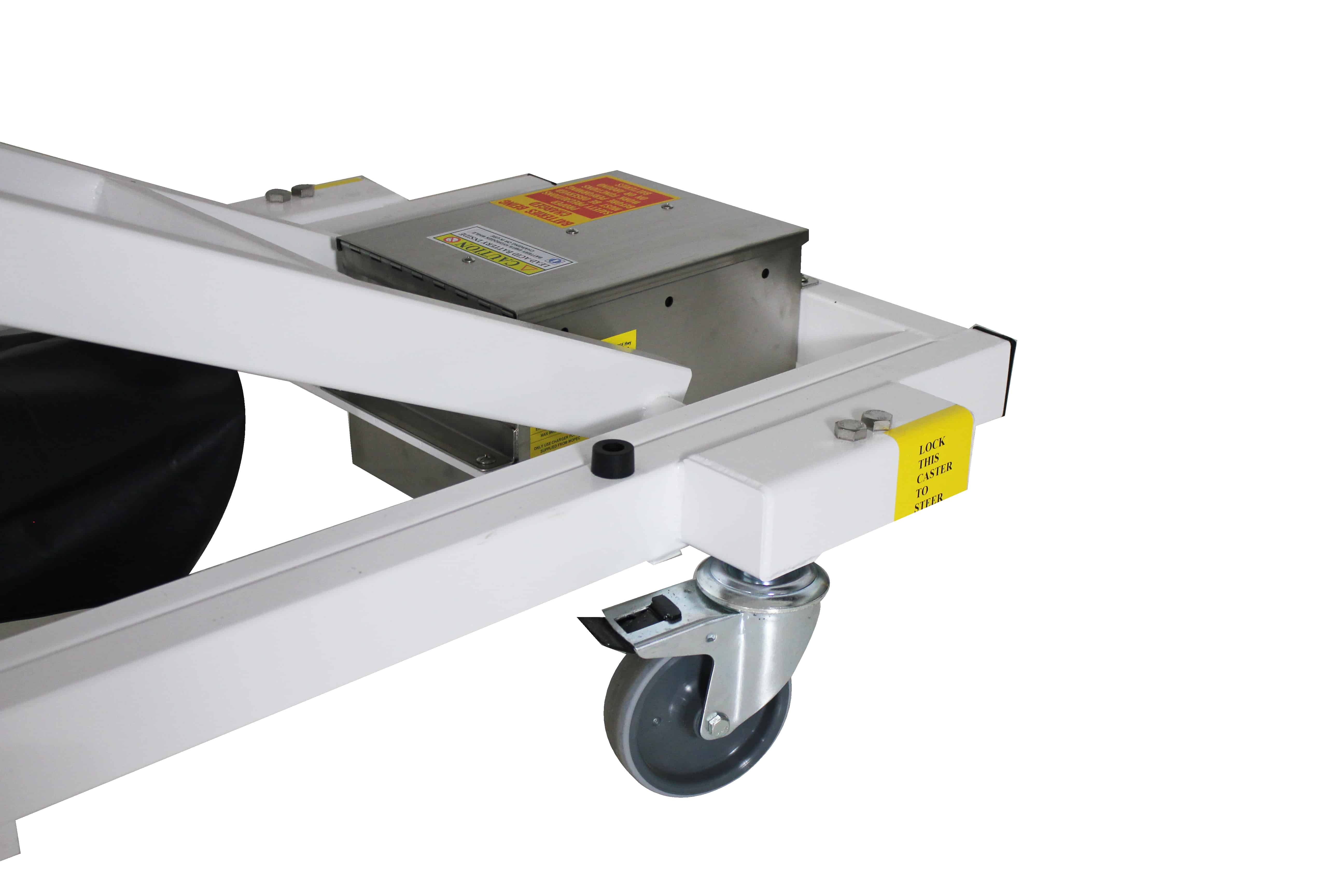

  • Four swivel casters with steering functionality in two

Dimensions

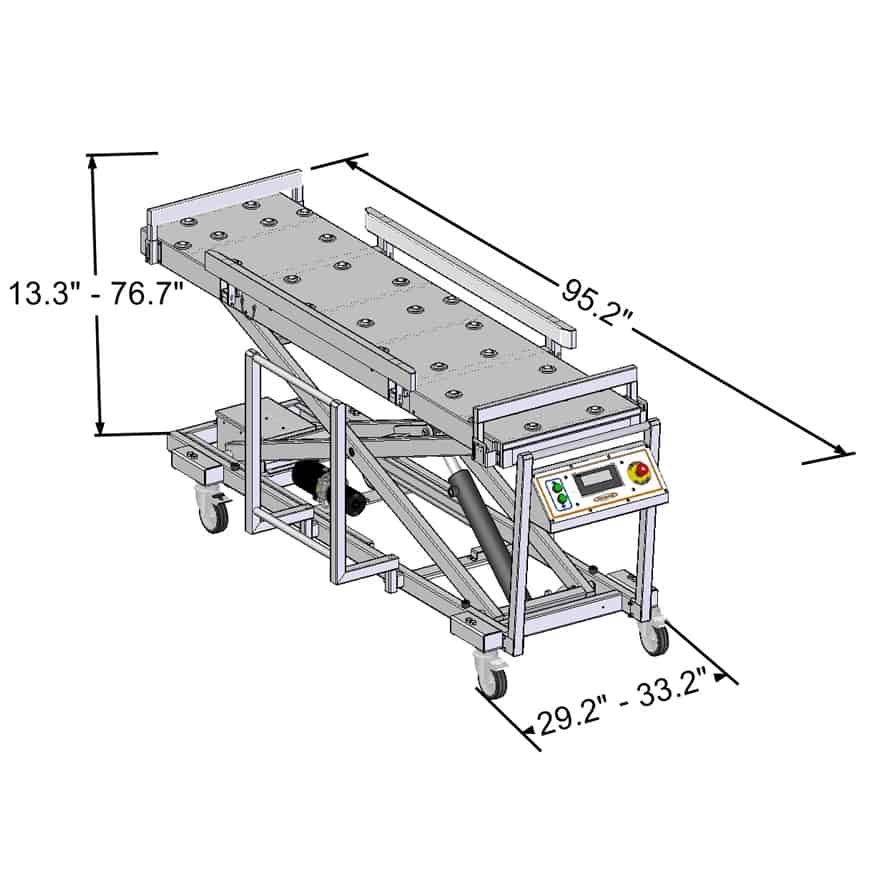

  • 95.2” L x 29.2” – 33.2” W (width determined by tray size)
  • Approximately 700 lbs

Elevation

  • Suitable for most five tier racks
  • Range of 13.3” – 76.7”

Performance

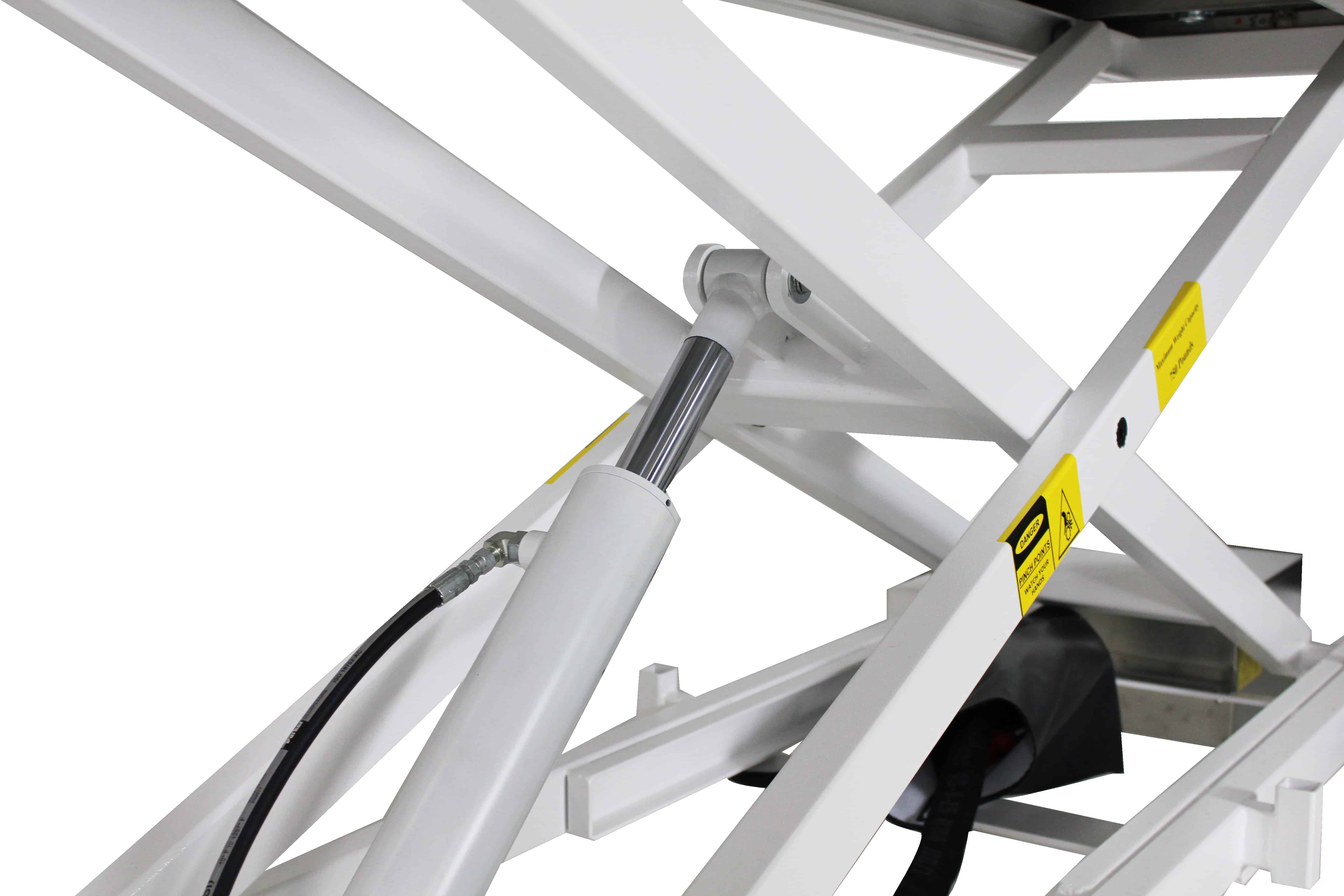

  • Hydraulic operation
  • Weight capacity of 800 lbs.
  • End & side access

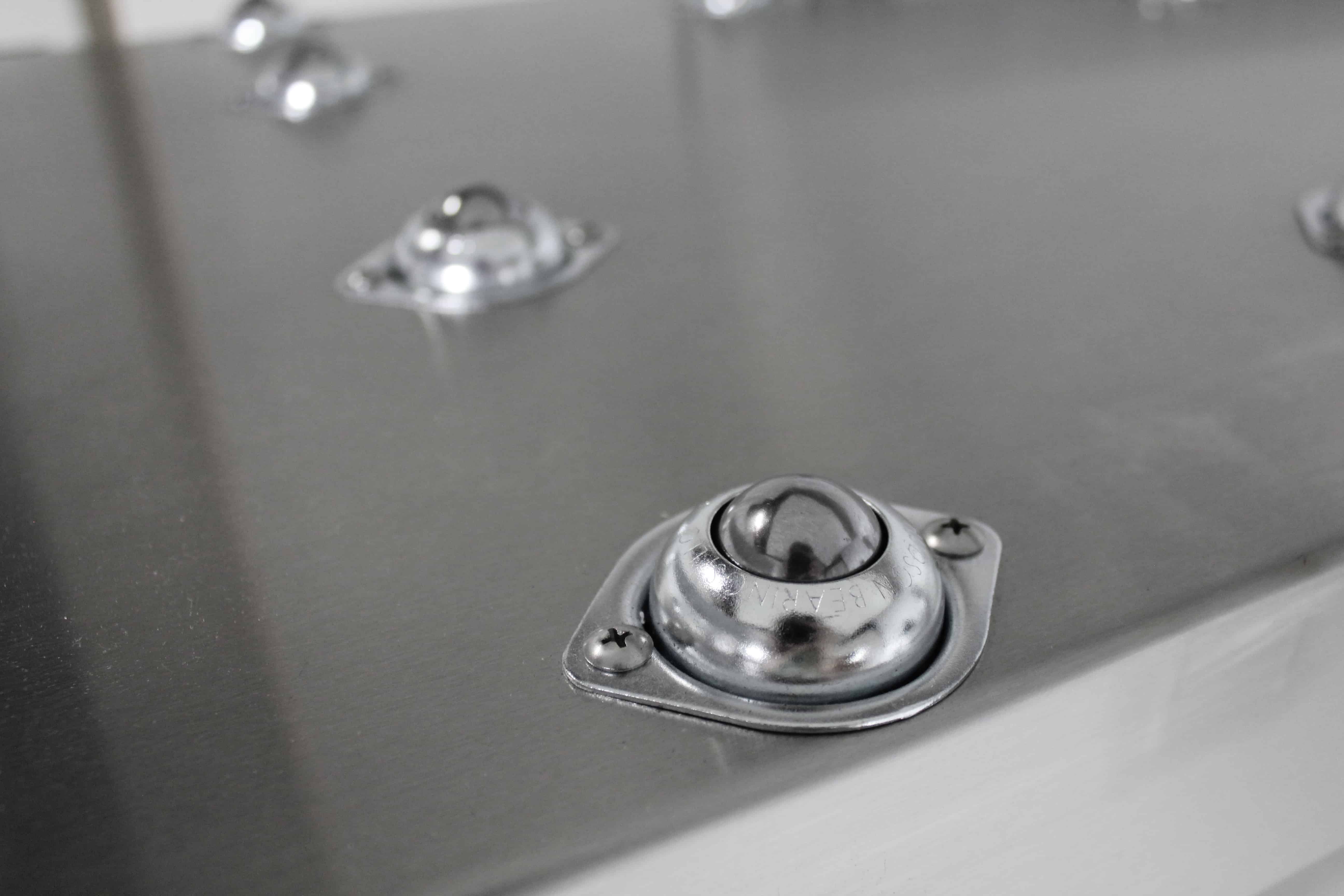

  • Adjustable roller ball top

Power

  • 12 VDC sealed deep cycle batteries
  • Single cord charger with status indicator (110/220 V)

Controls

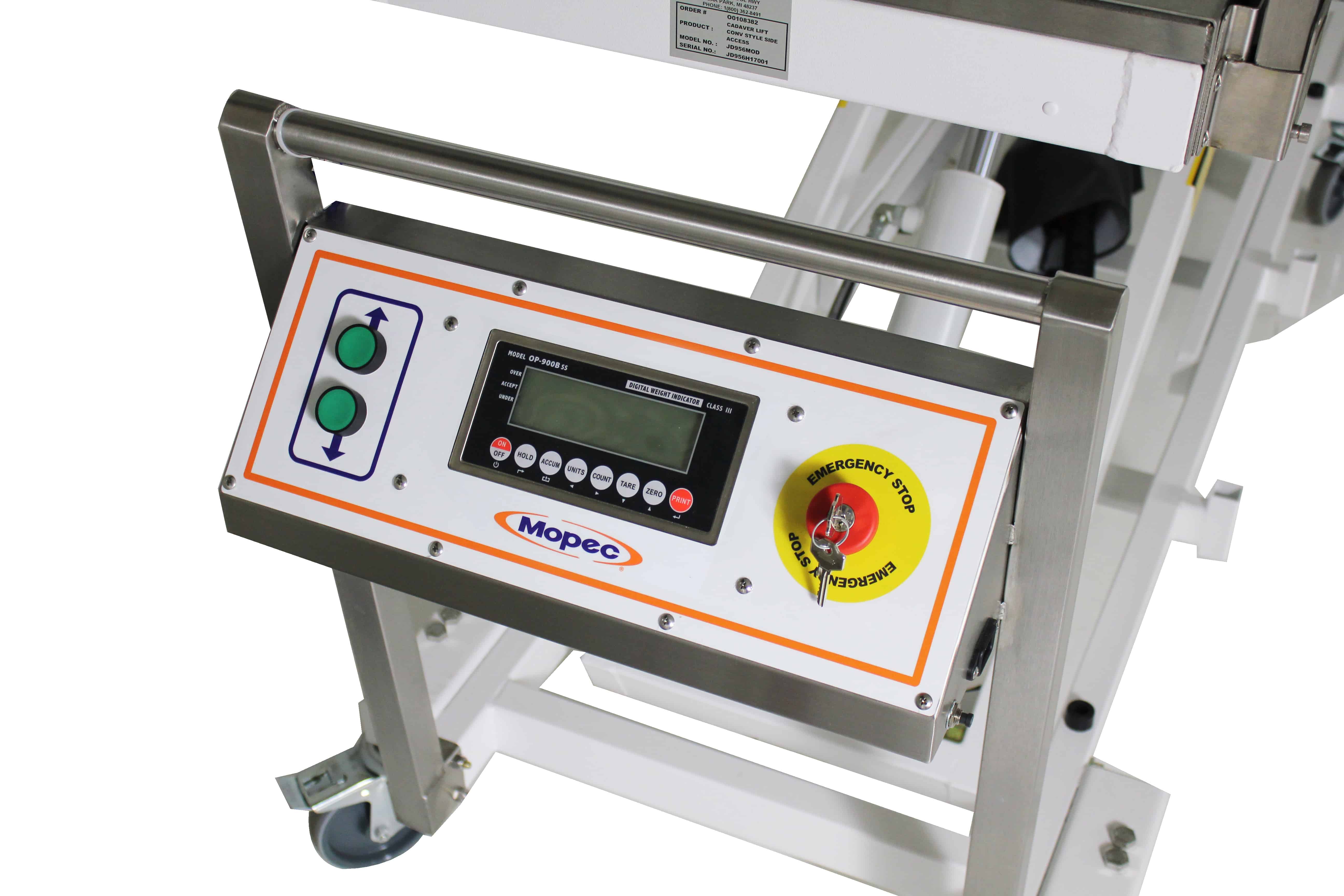

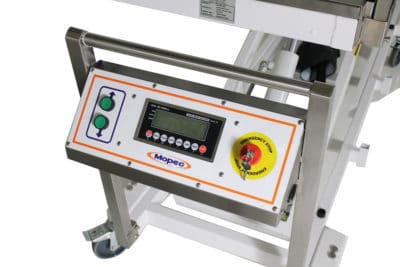

  • Handle control console
  • Emergency OFF switch with key lockout
  • Digital scale integrated in console

Compatibility

  • Adjustable for 23” – 30” trays
  • Drain plug compatible
  • Works with most mortuary tray carriers and carts
  • Works with most five tier storage racks
SKU: JD5000 Category:

Description

Provides a sturdy, safe, and convenient platform for transporting cadavers in morgue, hospital and research center environments. Features a rugged and robust frame with an adjustable roller ball top that allows access from any side. Using an integrated hydraulic lift system, this lift outperforms any cadaver lift in the industry. Featuring caster wheels for improved maneuverability and a handle that can be placed on two sides of the lift. A digital scale is integrated into the control console to continuously display the weight value in pounds or kilograms. This allows for a seamless weight measurement directly from the lift system.
