Ensemble Hitch Mount Keyboard Tray Arm – AX115

Construction

  • Designed to give an alternative mounting point for the keyboard arm by using the “hitch mount” that attached just below the work surface on the front of the grossing station
  • Can be attached on either the left or right side of the grossing station

Capacity

  • 5 lbs

Materials

  • 304 stainless steel
  • Keyboard arm components are powder-coated aluminum and ABS plastic for the keyboard tray

Dimensions

  • 22.3” L x 33.5” D x 16.1” H

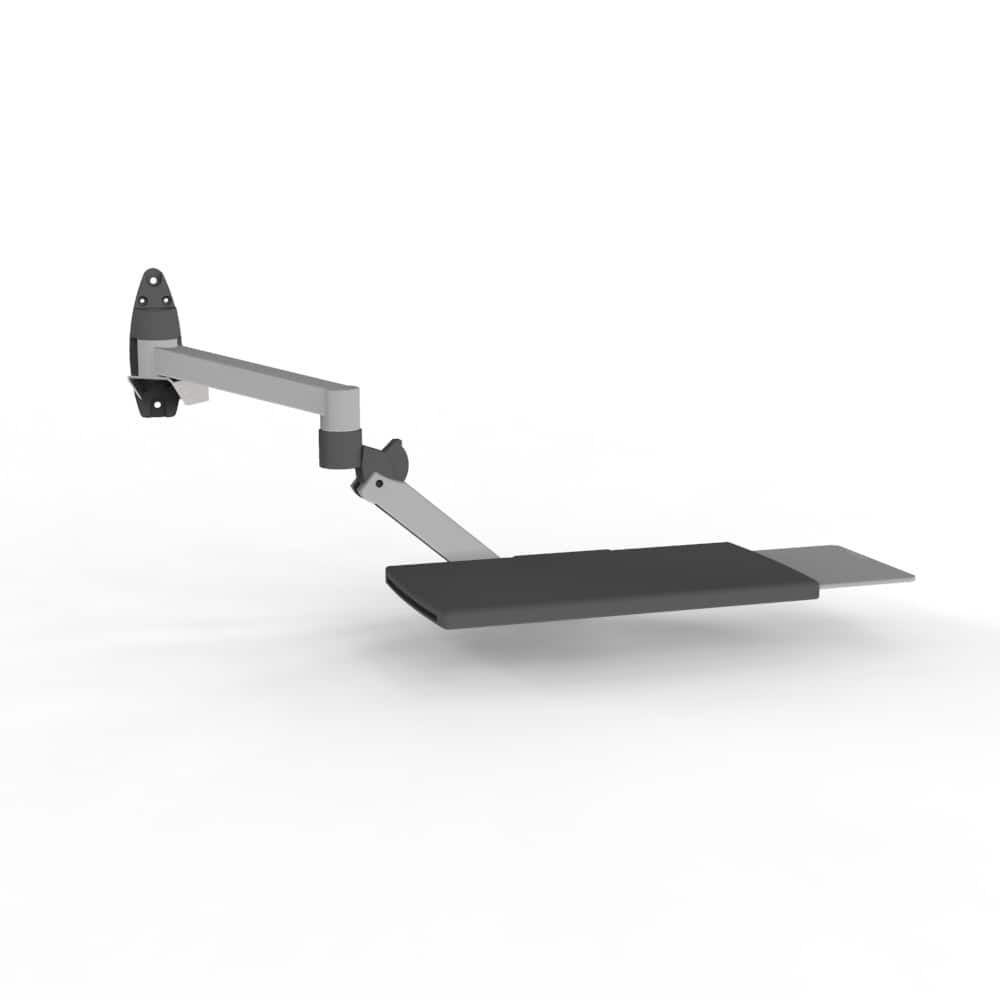

  • Keyboard extended: 22.3” L (shown in photo)
  • Keyboard not extended: 17.9” L

Performance

  • Has several pivot points to articulate up and down, and side to side.
  • Can be pulled out when in use, then pushed back when not in use
  • Arm has 33” and 180° of sweep, and 13” of lift

Compatibility

  • Fits all Mopec Maestro and Maestro Encore grossing stations
