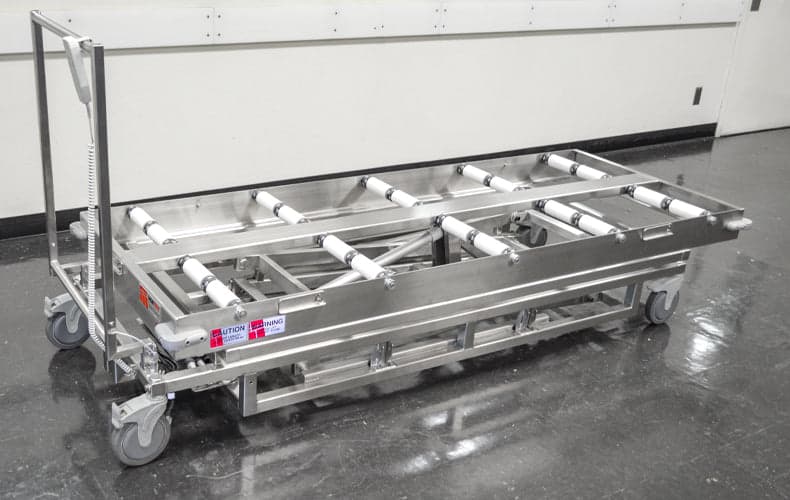

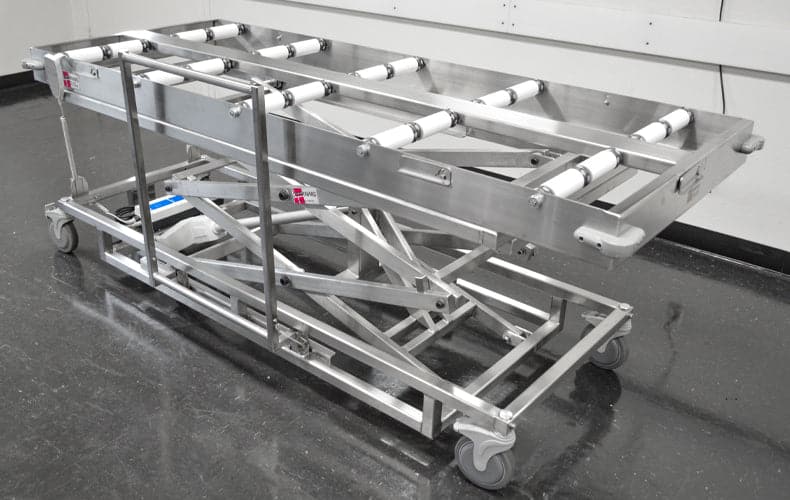

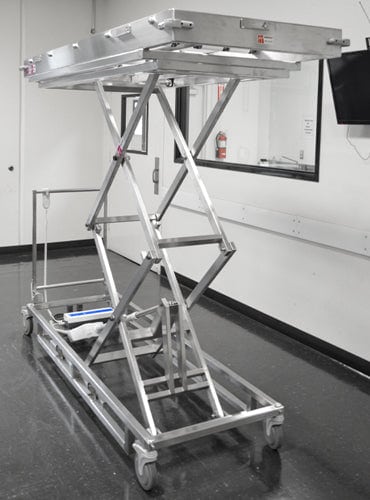

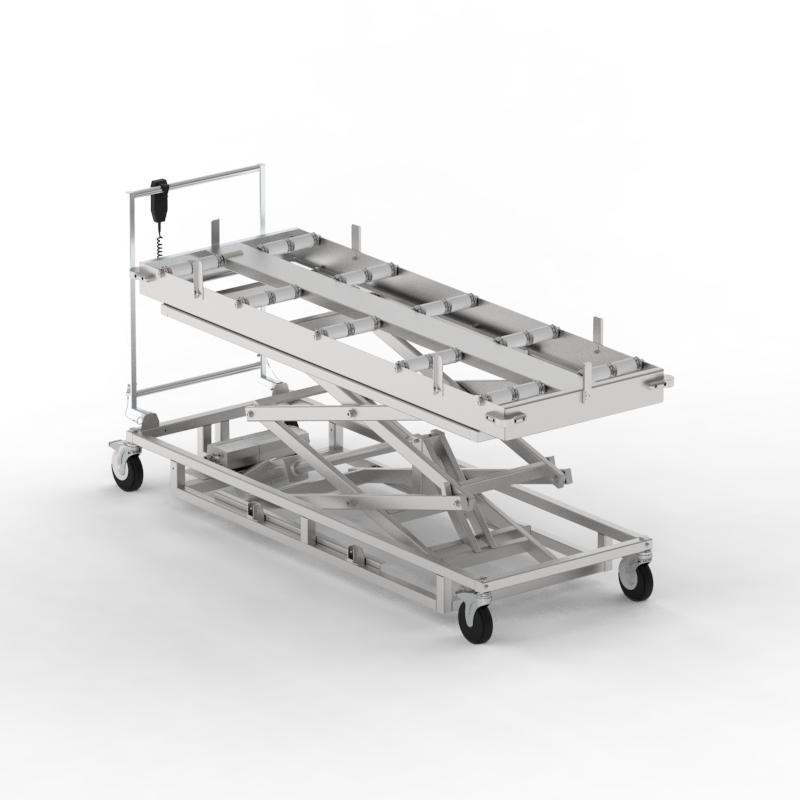

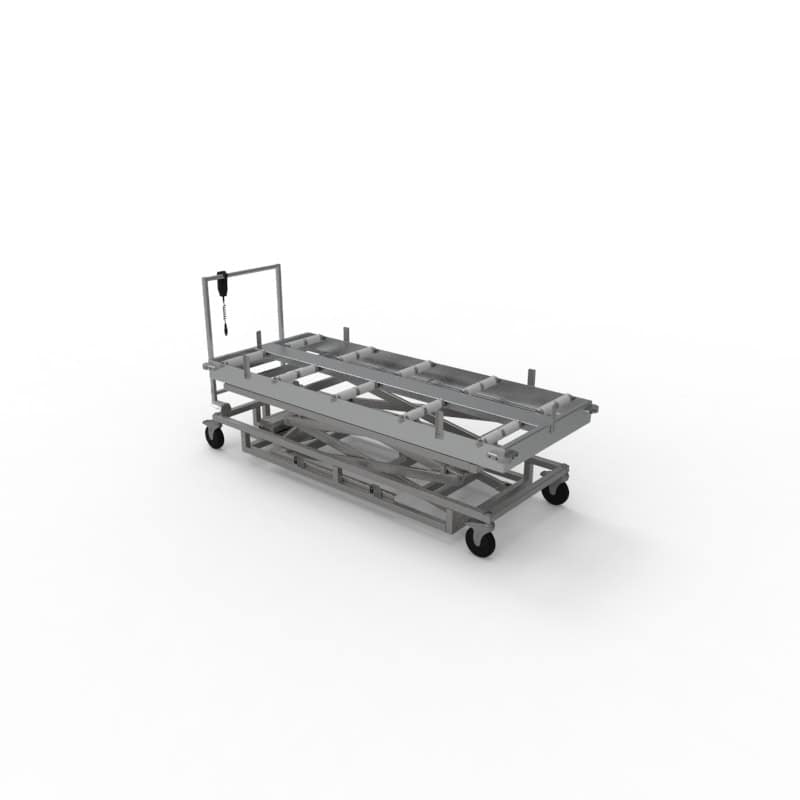

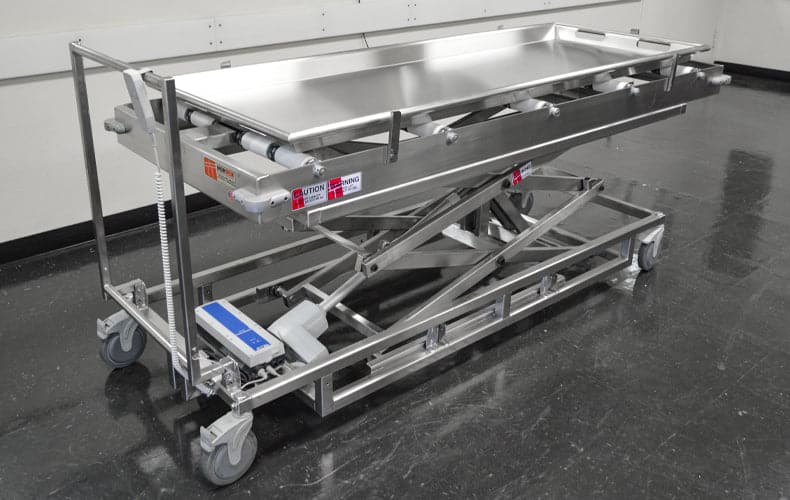

Scissor Lift, End and Side-Loading (M690ES Series)
Construction
- End and side-loading
- Battery-operated electromechanical, scissor lifting system
- Integral dual voltage battery charger and rechargeable battery
- (6) Flip-latches provided to secure loads and help prevent shifting
- (4) Full-swivel casters with brakes, (3) with brakes and (1) with directional lock
- Removable handle with quick release pins

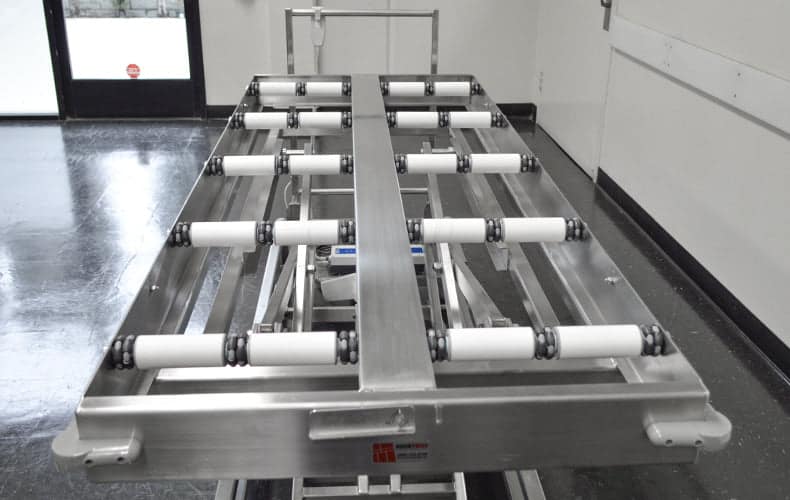

- Multi-directional rollers which allow for end and side loading
- Plastic hand-held lift controller
- Fits 23”, 27”, or 31” trays (sold separately)
Materials
- 11GA 304 Stainless steel tubing
- Various gages of stainless steel sheet metal
- (10) Nylon/PVC rollers
Dimensions

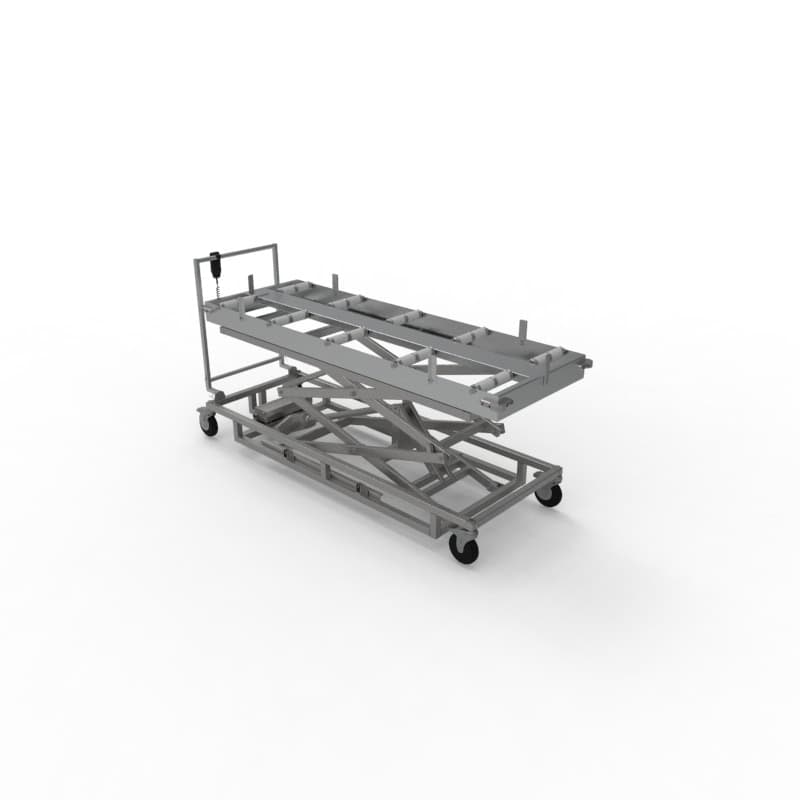

- M690ES-23: 85.9” L x 28.5” W x 15.5” (minimum) – 93” (maximum) H

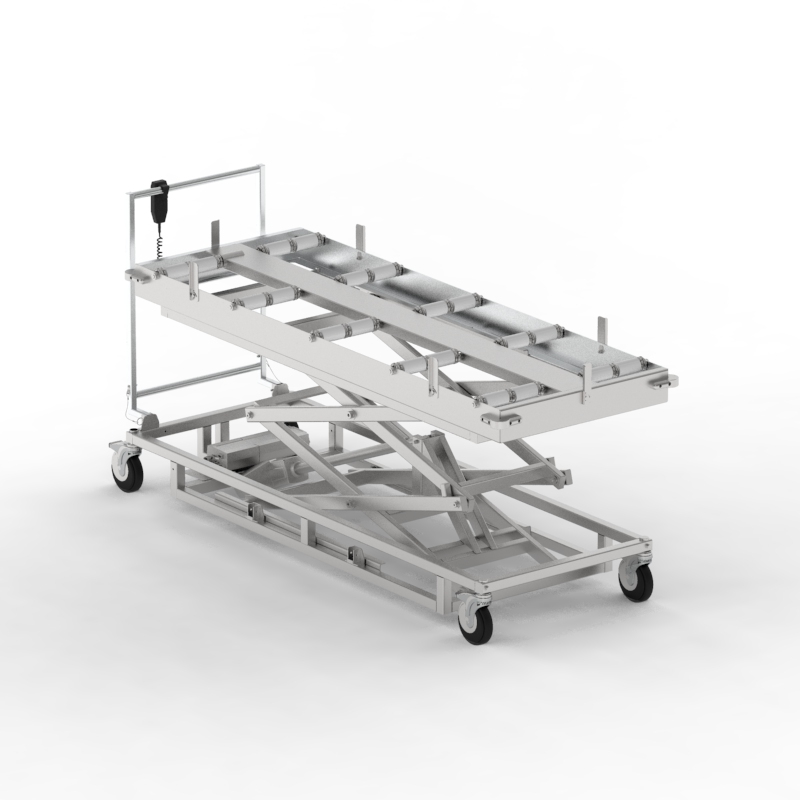

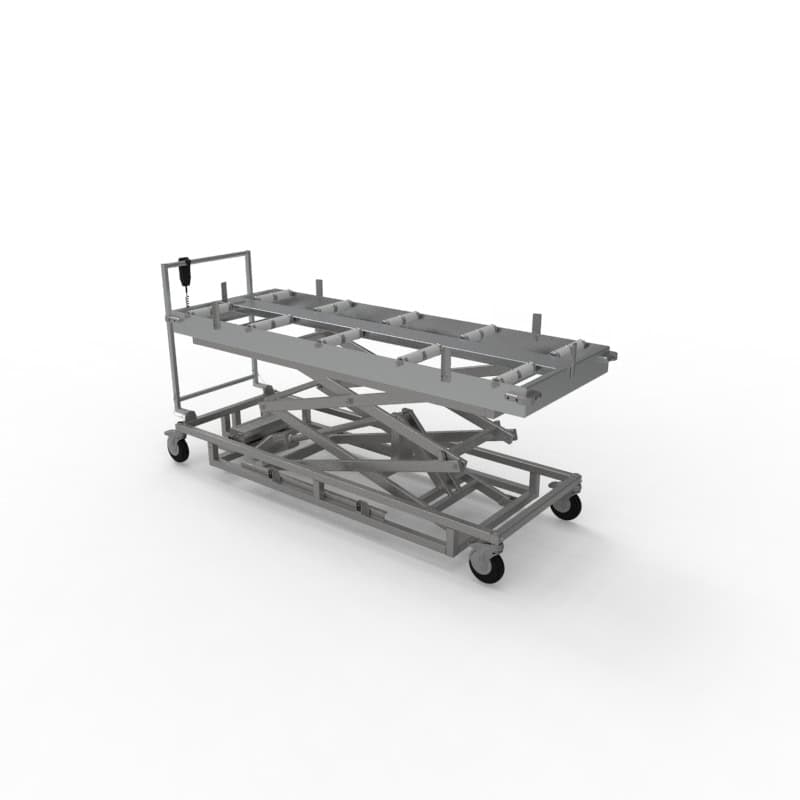

- M690ES-27: 85.9” L x 30” W x 15.5” (minimum) – 93” (maximum) H

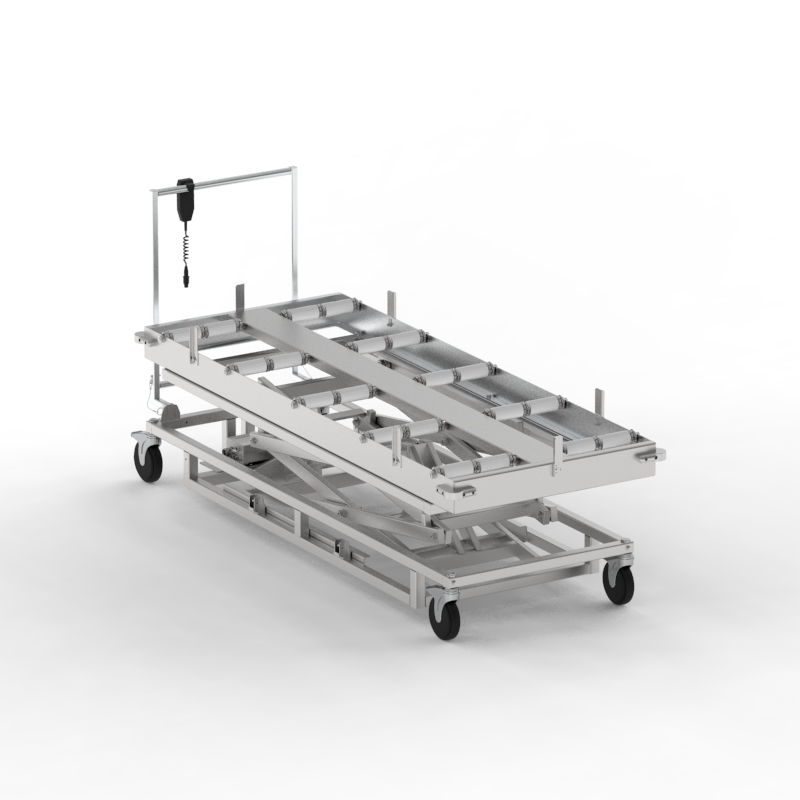

- M690ES-31: 85.9” L x 34” W x 15.5” (minimum) – 93” (maximum) H
Capacity
- 450 lbs
Utilities / Power
- 24V power system, (2 Rechargeable deep-cycle 12-volt batteries included) battery cord accepts any standard 120V/1hp/60V outlet
Compatibility
- M690ES-23: JC023 Tray
- M690ES-27: JC027 Tray
- M690ES-31: GA031 Tray
Note: Trays sold separately
Description
The M690ES Scissor Lifts are a heavy-duty, electromechanical cadaver handling lift designed for mortuary, hospital, and pathology settings. It uses a powered scissor action system with an integral battery charger to eliminate manual lifting, safely raising and lowering body trays up to the height of storage racks. It accommodates body trays and reduces physical strain during transfer and storage tasks.

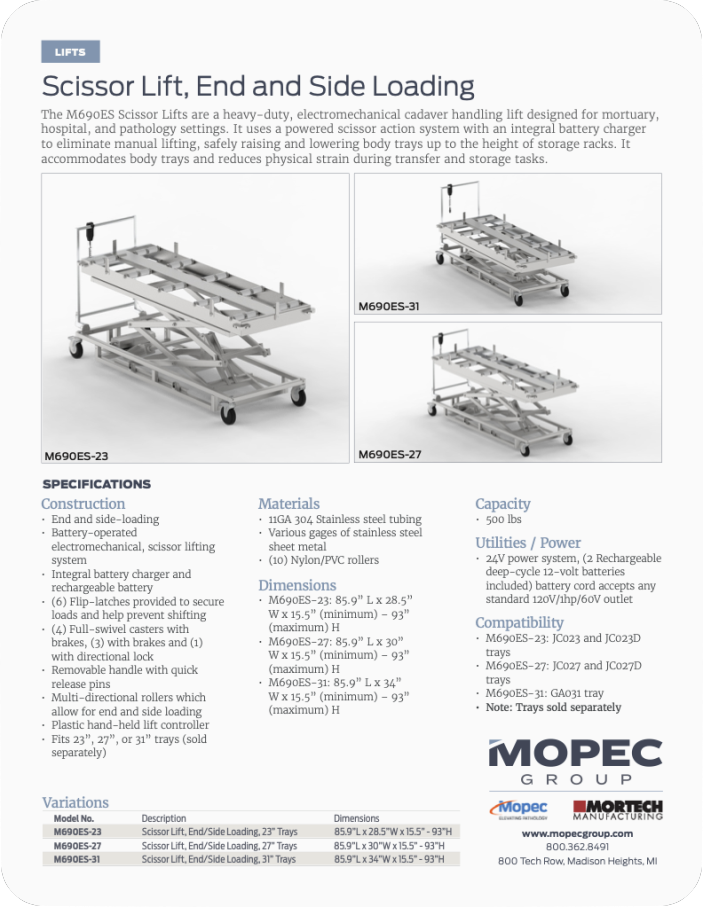

Download Specs
M690ES-23 Drawing
M690ES-27 Drawing
M690ES-31 Drawing
Additional information
| Tray Size | 23" Trays, 27" Trays, 31" Trays |
|---|
