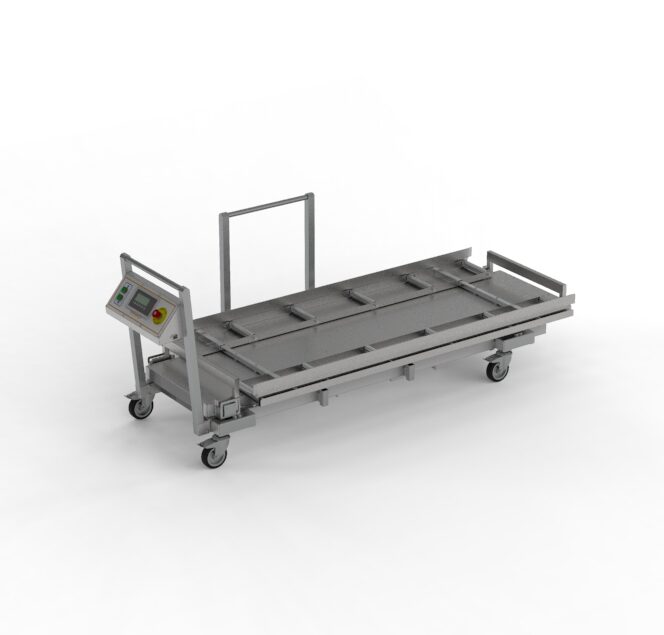

Cadaver Lift, End Loading – Red Wing Cadaver Lift Series (JD5001)
Construction
- End loading only
- (2) full side rails and two end stop gates
- (4) 5” Full-swivel casters with brakes
- Integrated lift controller with scale display
Capacity
- 500 lbs (tray weight limit)
Materials
- 11GA 304 Stainless steel tubing, various gauges of stainless steel sheet metal
- Galvanized steel rollers
- Stainless steel transfer balls
Dimensions
- 95.2” L x 34.4” W (36.4” including side handle) x 13.4” (minimum) – 76.8” (maximum) H
Utilities / Power
- Battery-operated electromechanical, scissor lifting system
- 24V power system, (2 Rechargeable deep-cycle 12-volt batteries included) battery cord accepts any standard 120V/1hp/60V outlet
Compatibility
- JC Series 23” and 27” trays
- GA100 32” Legacy tray
- Note: Only compatible with Mopec trays, not compatible with Mortech Legacy trays
Note: Trays sold separately
Description
Mopec Red Wing Cadaver Lift Series
Provides a sturdy, safe, and convenient platform for use in morgue, hospital and research center environments. Features a rugged and robust frame with an adjustable split roller top that allows access from the end. Featuring caster wheels for improved maneuverability and a handle that can be placed on two sides of the lift. A digital scale is integrated into the control console to continuously display the weight value in pounds or kilograms. This allows for a seamless weight measurement directly from the lift system.
