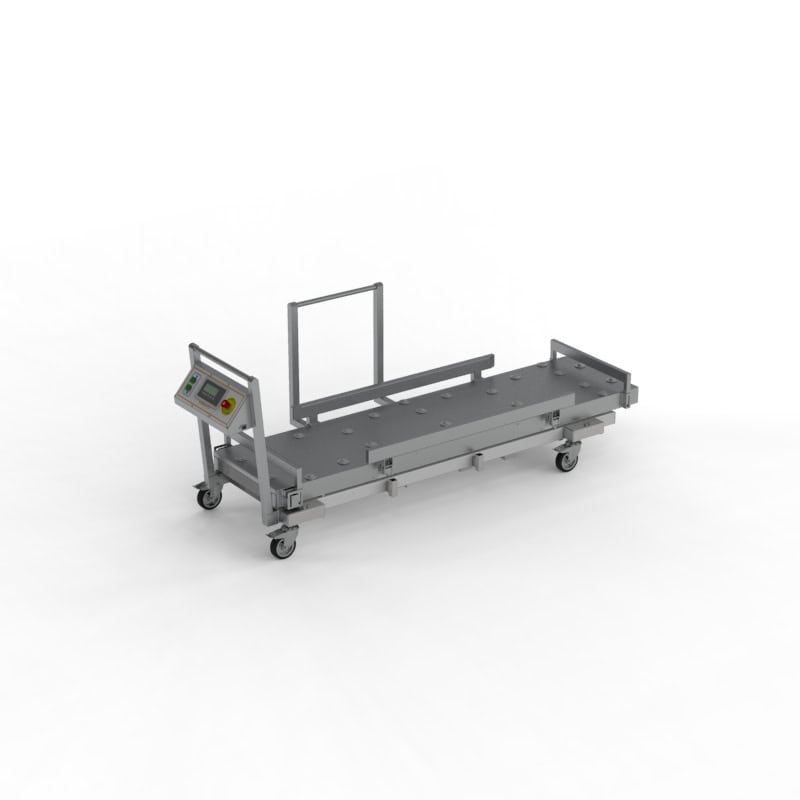

Cadaver Lift, End/Side Loading – Red Wing Cadaver Lift Series (JD5000)
Construction
- End and side-loading
- Fits 23”and 27” trays (sold separately)
- (4) tray stops
- (4) 5” Full-swivel casters with brakes
- Multi-directional transfer balls which allow for end and side loading
- Integrated lift controller with scale display
Materials
- 11GA 304 Stainless steel tubing, various gauges of stainless steel sheet metal
- Stainless steel transfer balls
Dimensions
- 95.2” L x 29.2” to 33.2” W (36.4” W including side handle) x 13.3” (minimum) – 76.7” (maximum) H
Capacity
- 375 lbs (tray weight limit)
Utilities / Power
- Battery-operated electromechanical, scissor lifting system
- 24V power system, (2 Rechargeable deep-cycle 12-volt batteries included) battery cord accepts any standard 120V/1hp/60V outlet
Compatibility
- JC Series 23” and 27” trays
- Note: Only compatible with Mopec JC trays, not compatible with Mortech Legacy trays
Note: Trays sold separately
Description
Mopec Red Wing Cadaver Lift Series
Provides a sturdy, safe, and convenient platform for use in morgue, hospital and research center environments. Features a rugged and robust frame with an adjustable roller ball top that allows access from any side. Using an integrated hydraulic lift system, this lift outperforms any cadaver lift in the industry. Featuring caster wheels for improved maneuverability and a handle that can be placed on two sides of the lift. A digital scale is integrated into the control console to continuously display the weight value in pounds or kilograms. This allows for a seamless weight measurement directly from the lift system.
Red Wing Lift Manual

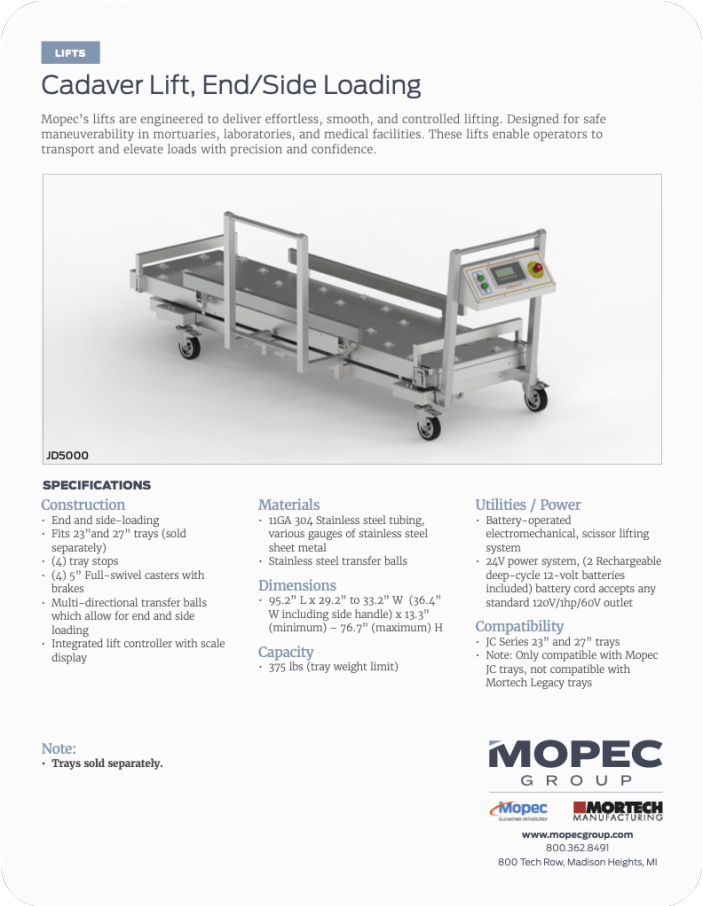

Download SpecSheet
Download Drawing
