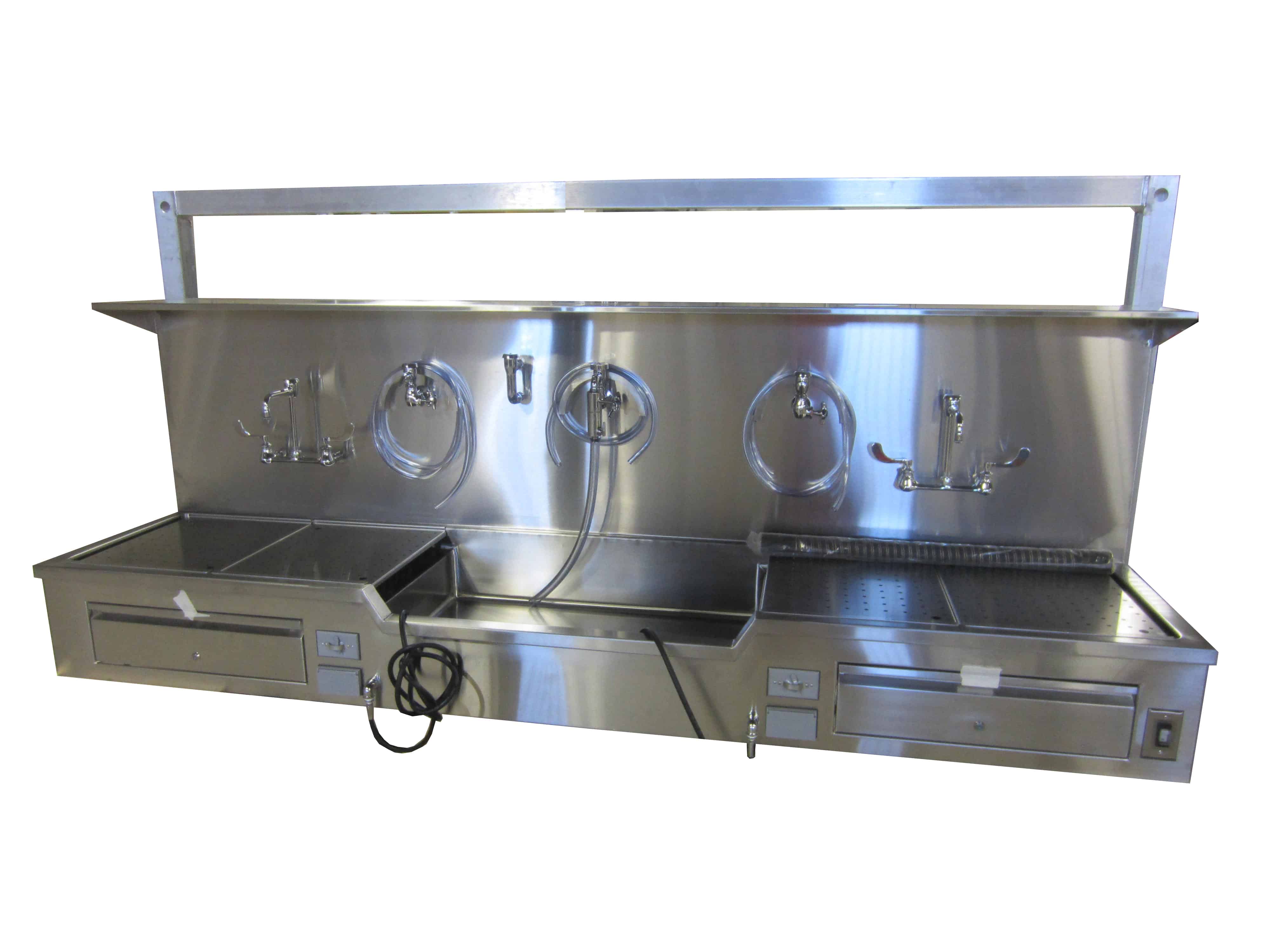

Autopsy Sink – Wall Mount, Elevating Center Approach – CC200

• Overall Dimensions: 114″ L x 31-1/2″W x 58- 1/2″ H to 66-1/2 to work surface.
• 31-1/2″ to 39.5″ (100cm) to top of work surface
• Stainless steel construction
• Center sink approach
• Heavy duty elevating frame structure with dual synchronized actuators and push button controls
• Hydro aspirator with reversing flow valve. Includes hose hanger and 8′ of clear PVC tubing
• Two (2) cold water body rinse valve with vacuum breaker and serrated hose fitting. With hose hanger and 8′ of clear PVC tubing
• Two (2) Hot and cold water fixture with wrist blade handles, 8″ swing spout with vacuum breaker
• Four (4) interchangeable removable grid plates stainless steel construction with 1/2″ recess and 3/8″ diameter holes on 2″ square centers
• Two GFCI duplex outlet with waterproof cover
• Two instrument drawers with recessed handle and drop in removable pan


Read More

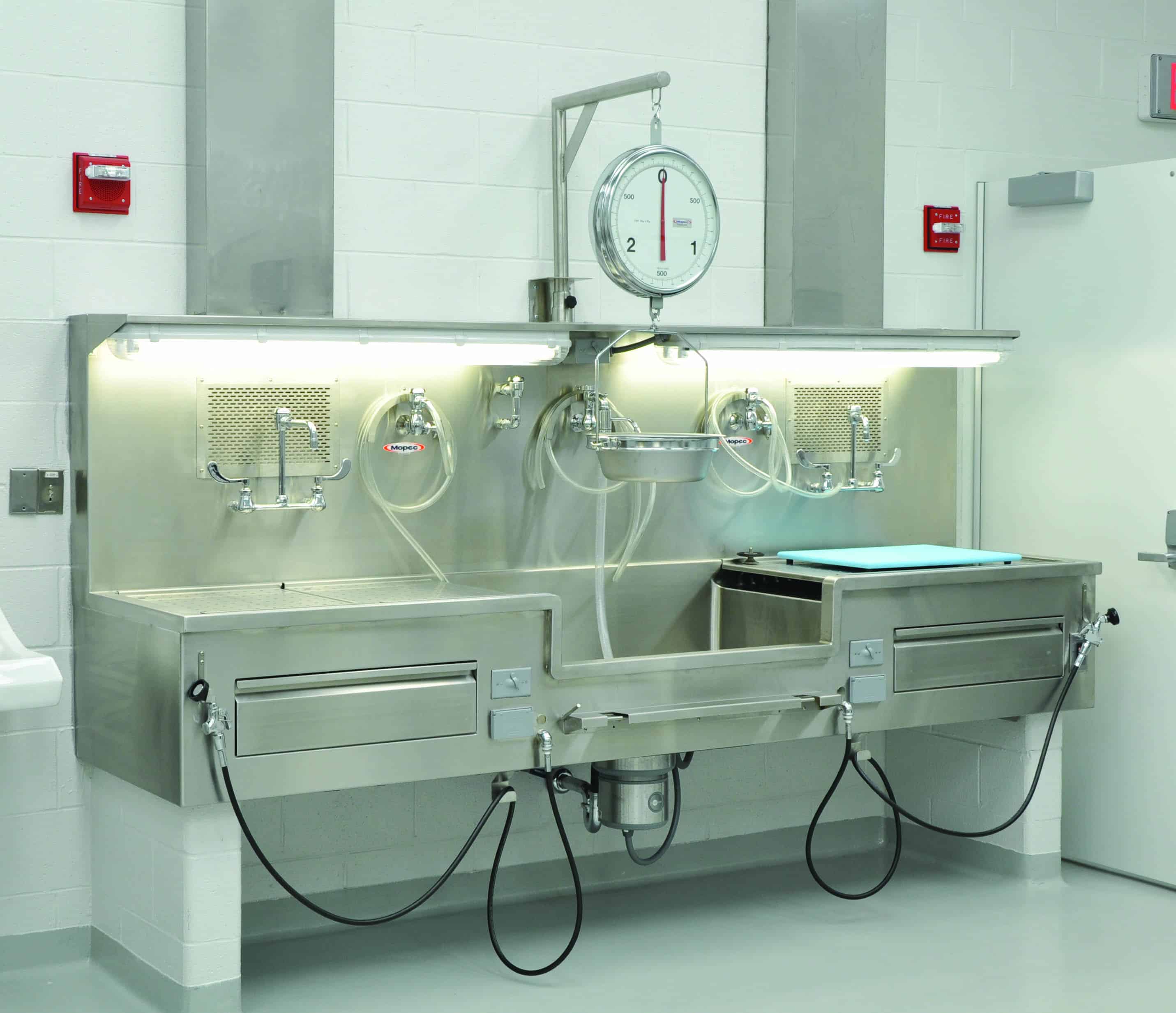

The C-Series Wall Mounted Elevating Autopsy sink was designed to provide an adjustable working area ergonomically correct for users of various heights. A 5′ 4” technician is just as comfortable using this autopsy sink as a 6′ 4″ technician. The sink can be surface mounted or recessed within the thickness of the wall. Adjustability of the C Series allows all technicians whether sitting or standing, to make adjustments to bring the work to their exact desired position and comfort, regardless of height with the flip of a switch. The users have the ability to raise and lower the unit approximately 8”. Patented 9277806


Request Technical Drawing
