Scissor Lift, End Loading (M690E Series)
Construction
- End-loading only
- Battery-operated electromechanical, scissor lifting system
- Integral battery charger and rechargeable battery
- (2) Flip-latches provided to secure loads and help prevent shifting
- (4) Full-swivel casters with brakes, (3) with brakes and (1) with directional lock
- (4) Corner bumper
- Removable handle with quick release pins
- 5-roller conveyor platform
- Plastic hand-held lift controller
- Fits corresponding 23”, 27”, or 31” trays (sold separately)
Materials
- 11GA 304 Stainless steel tubing
- Various gages of stainless steel sheet metal
- Galvanized steel rollers
Dimensions

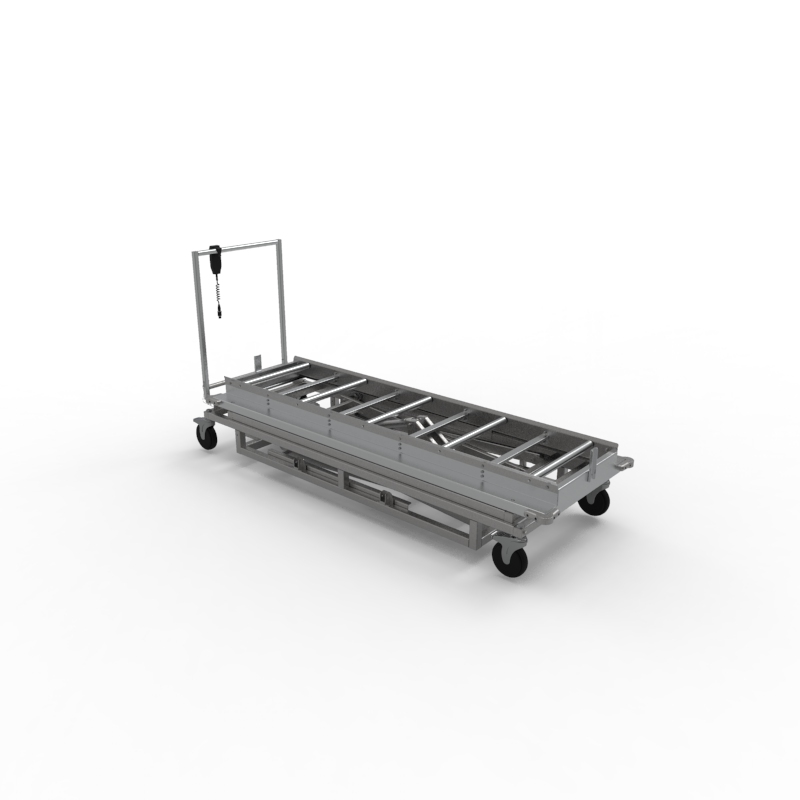

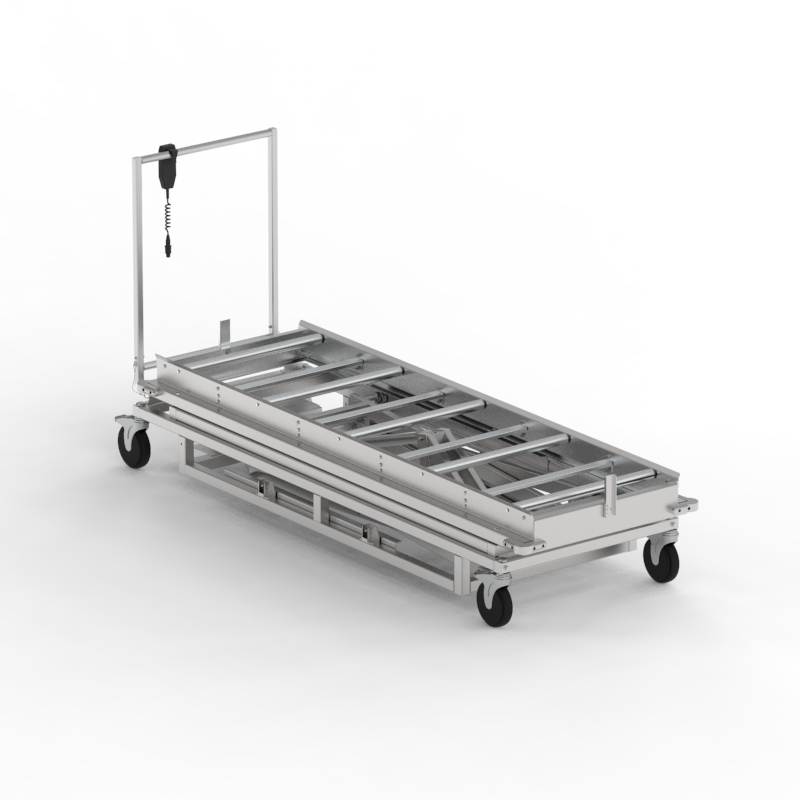

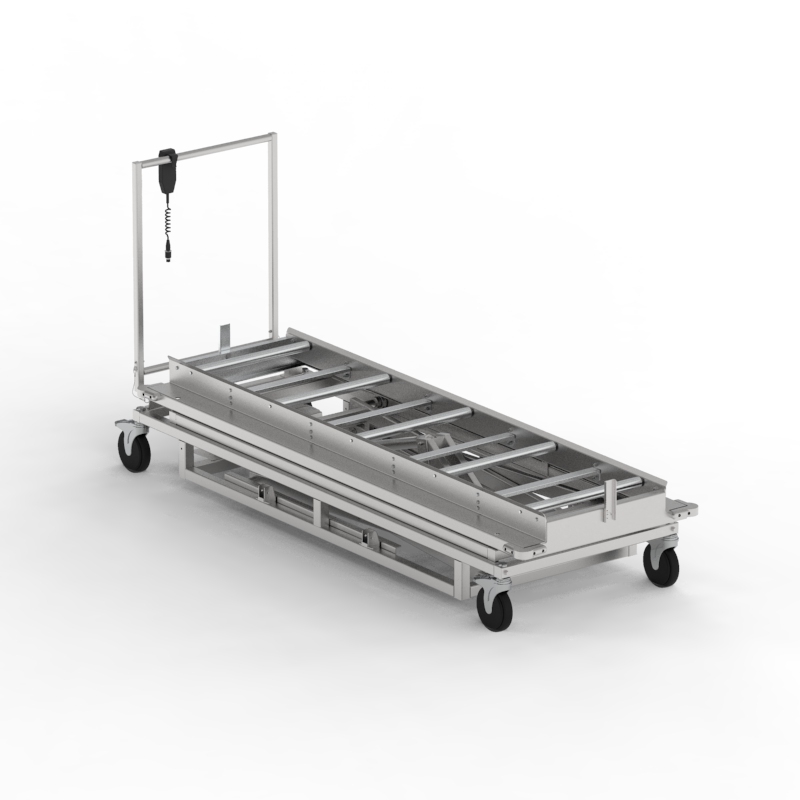

- M690E-23 and M690E-27: 85.9” L x 28.5” W x 15.5” (minimum) – 93” (maximum) H

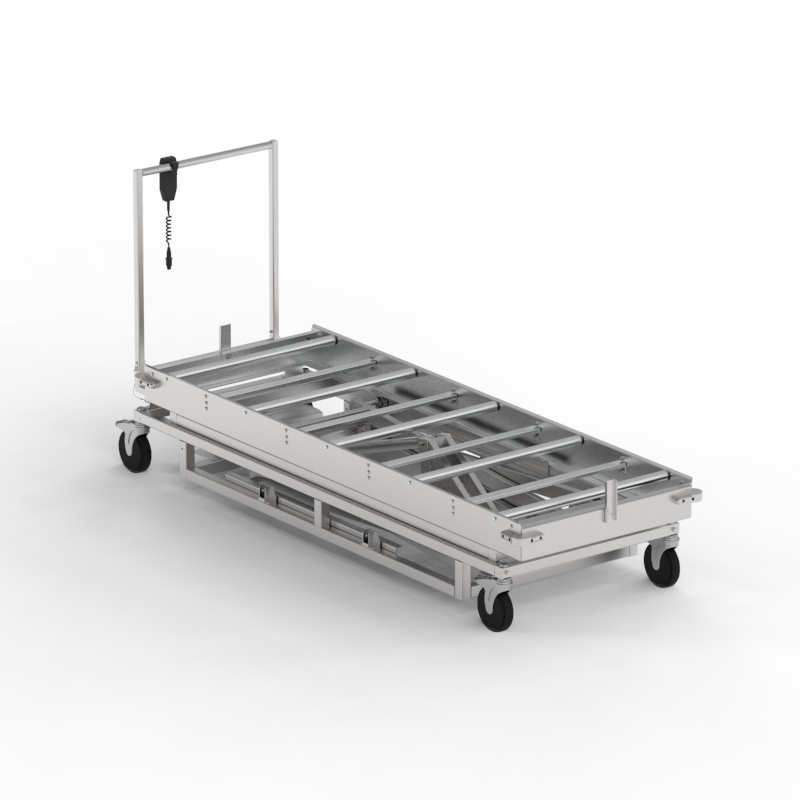

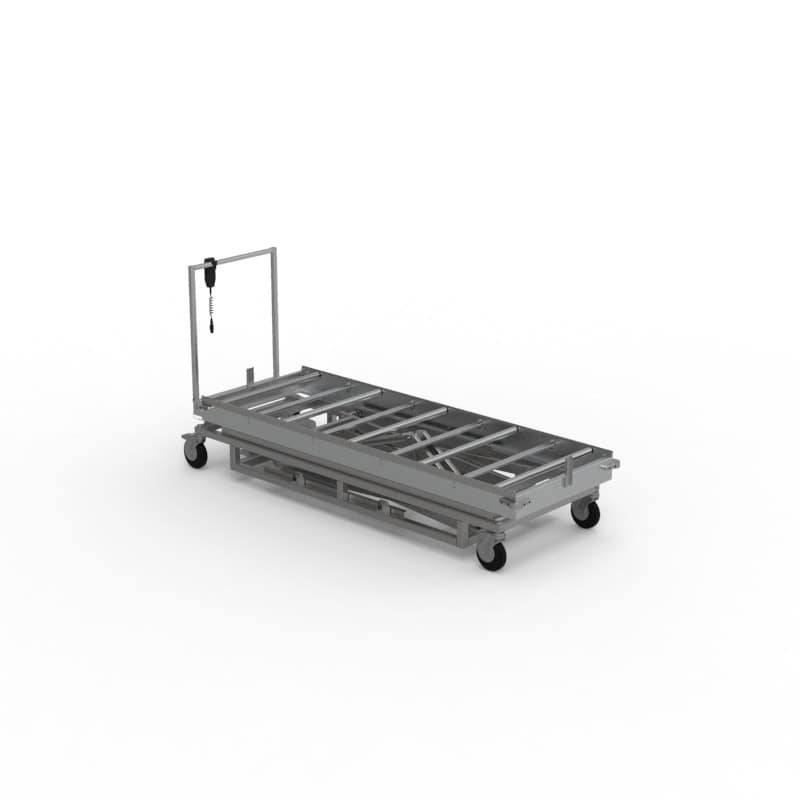

- M690E-31: 88.3” L x 35.25” W x 16” (minimum) – 93.5” (maximum) H
Capacity
- 500 lbs
Utilities / Power
- 24V power system, (2 Rechargeable deep-cycle 12-volt batteries included) battery cord accepts any standard 120V/1hp/60V outlet
Compatibility
- M690E-23: JC023 and JC023D tray
- M690E-27: JC027 and JC027D tray
- M690E-31: GA031 tray
Note: Trays sold separately
Description
The M690E Scissor Lifts are a heavy-duty, electromechanical cadaver handling lift designed for mortuary, hospital, and pathology settings. It uses a powered scissor action system with an integral battery charger to eliminate manual lifting, safely raising and lowering body trays up to the height of storage racks. It accommodates body trays and reduces physical strain during transfer and storage tasks.

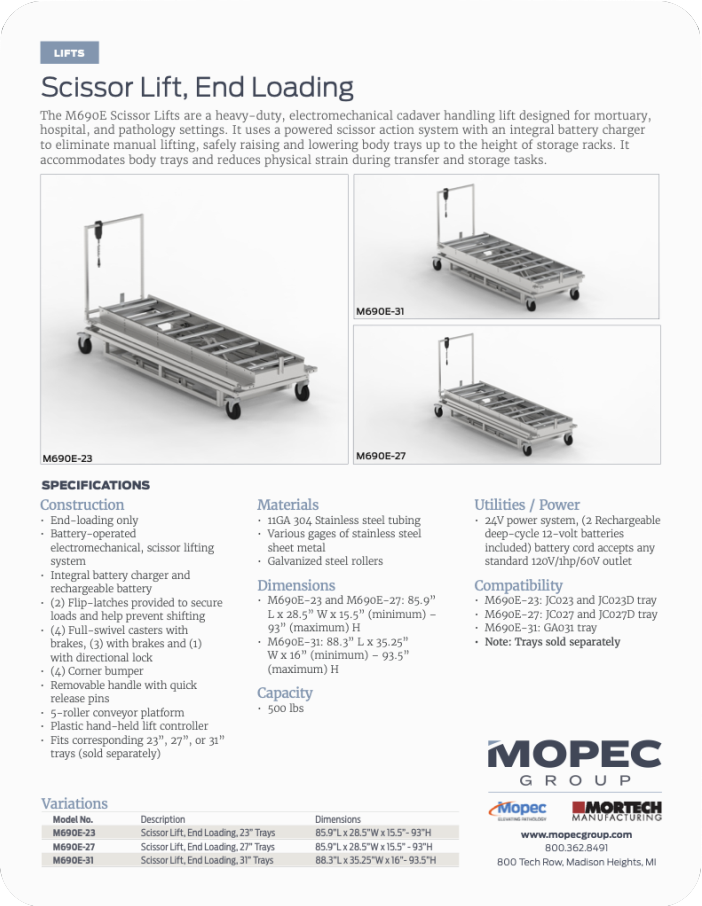

Download Specs
M690E-23 Drawing
M690E-27 Drawing
M690E-31 Drawing
Additional information
| Tray Size | 23" Trays, 27" Trays, 31" Trays |
|---|
