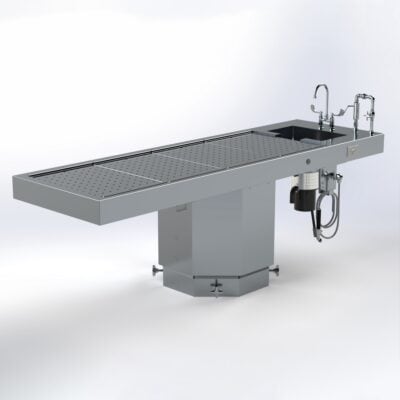

Pedestal Autopsy Table, Elevating & Rotating – 1036-48-MG
Construction
- Heliarc-welded seams and joints, ground and polished to match adjoining surfaces
- Downdraft ventilation
- GFCI protected receptacles with waterproof covers
- (4) Fully perforated grid plates
- Deluxe hydro-aspirator with reverse flow, cold water control valve with 10ft of hose
- Spray hose assembly with cold water control valve, nozzle with 10ft of hose
Capacity
- 750 lbs
Materials
- 304 stainless steel construction with a polished No. 4 finish
Dimensions
- 104” L x 32” W x 34.5 – 46.5” H
- Sink: 20” L x 12” W x 8” D
Utilities / Power
- (1) 115v/60hz/1ph/20a circuit for station
- (1) 115v/60hz/1ph/20a circuit for disposal
- Exhaust recommendation: 275-400 CFM
Performance
- Top rotates manually 180º degrees in either direction
- Backflow protection for all plumbing fixtures to prevent backflow of contaminated water
- Rapid and positive drainage toward drain at center of table
Options & Accessories
- CO017: Autopsy scale stand, table mounted
- CO009: Autopsy table perimeter rinse
- CO012: Ruler
Description
The 1036-48-MG Pedestal Autopsy Table is an elevating and rotating unit built to support rigorous demands while enhancing ergonomics within your lab. Designed for ease of operation, the top manually rotates 180º in either direction, and the downdraft ventilation system is a standard feature which helps ventilate the body during any autopsy.
