PathCam Mobile Imaging Station – AX260

Construction

  • Imaging station with mobile base, designed to hold PathCam HD or HR cameras and PC system
  • 4 Heavy-duty casters: silent-grade w/simple step locking brakes
  • Articulating monitor arm and mount
  • Articulating arm with platform for keyboard and mouse
  • Articulating camera arm with 45” reach
  • Base includes 4 access doors: 2 on front, 2 on back for servicing battery and PC

Compatibility

  • Compatible with PathCam HD and HR Cameras
  • AX047 PathCam Foot Pedal Command

Camera Arm Dimensions

  • Column to mid-arm pivot point: 23”
  • Mid-point to camera-mount: 21”
  • Maximum reach: 47.5” (from column to camera)
  • Minimum reach: 18”(from column to camera)

Dimensions

  • Keyboard Arm: 17.9”-22.3” L x 33.5” W x 16.1” H
  • Monitor Arm: 12.3” L x 10.2” W x 17.2” H

Materials

  • Station Column and Base: polished stainless steel, No. 4 finish
  • Articulating Camera Arm: durable aluminum construction
  • Keyboard & Monitor Arm: powder-coated aluminum
  • Performance On/Off power switch for camera
  • Removable foot pedal shelf
  • Pull handle for transporting
  • Wi-Fi antenna
  • Tension knob for precise camera pivot
  • Power Cable Port for recharging battery back up
  • Ethernet Port for direct connect to PC
  • USB port for removable foot pedal
  • USB port (direct connect to the PC) in countertop storage compartment
  • Cable management system

Description

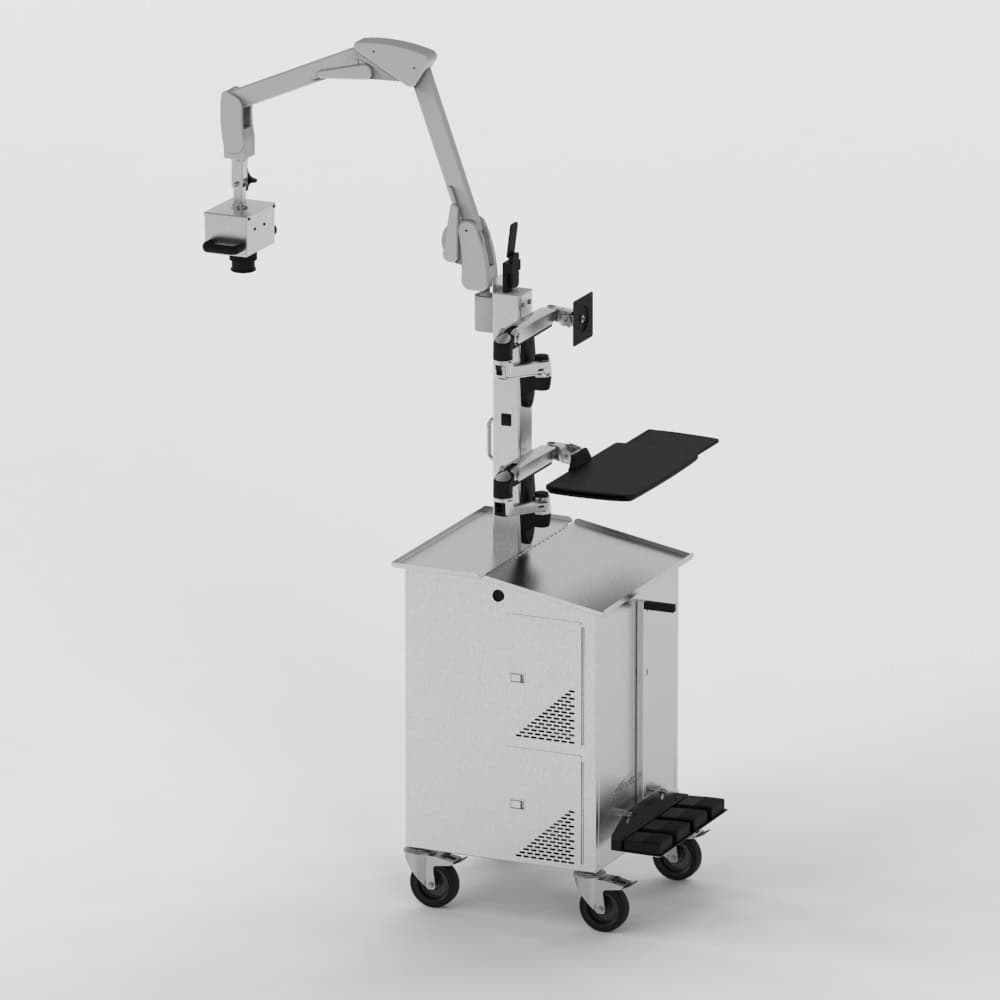

Mopec’s AX260HD/HR Mobile Imaging Station offers a fully integrated, high-definition imaging solution designed for flexibility and precision in pathology and autopsy environments. Built with a durable stainless steel base, articulating arms, and silent-grade casters, it supports the PathCam HD or HR for seamless image capture, live streaming, and documentation. Its ergonomic, mobile design with advanced connectivity and cable management enhances workflow efficiency and remote collaboration.


Download Specs

AX260 Spec Sheet

Download Drawing

AX260 Drawing

Additional information

Camera Type

HD Camera (AX260HD), HR Camera (AX260HR)

Request Technical Drawing
