Hydraulic Downdraft Dissection Table – HB300
Construction
- Exhaust requirements: 350-500 CFM
- (4) heavy duty 8” casters
- Raise or lower the cart using the dual sided mounted foot controls
- Enable fifth wheel steering, neutral, or full brakes with foot controls
- The vented stainless-steel table allows fumes to be pulled down and away from the worksurface
Materials
- Vented 304 stainless steel table with No.4 polish and drainage outlet
- Hydraulic Stryker base
Dimensions
- 86” L (89” including duct) X 30” W X 30.25″ to 43.75″ H
Capacity
- 500 lbs
Utilities
- Recommended airflow, adjustable between 350 and 500 CFM.
- Duct stub connection: 6” round
- Ball valve with 1” flexible drain
Options and Accessories
- HO001: Leg Rest Bridge
Description

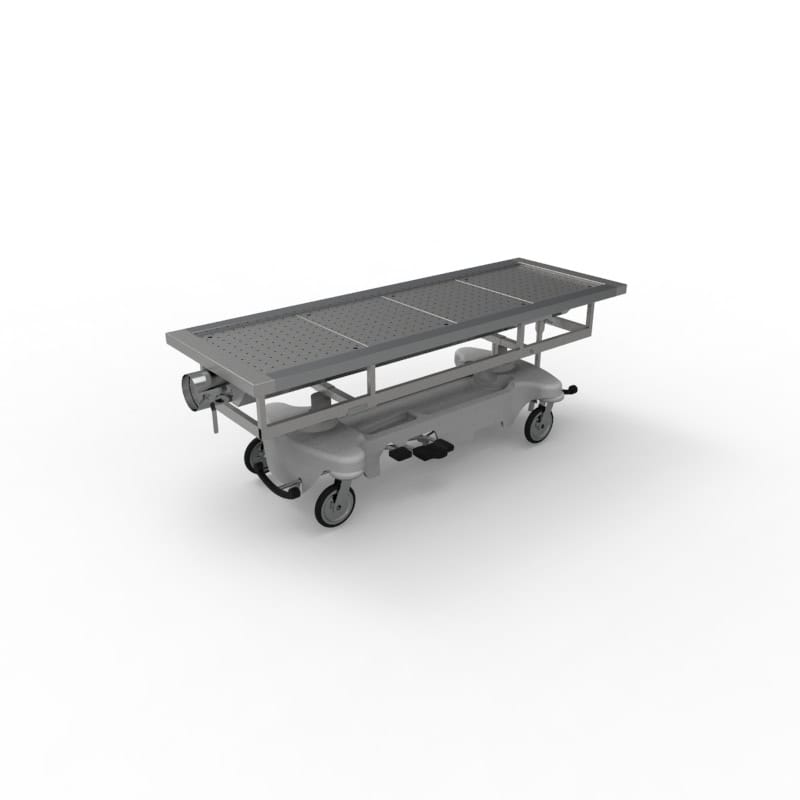

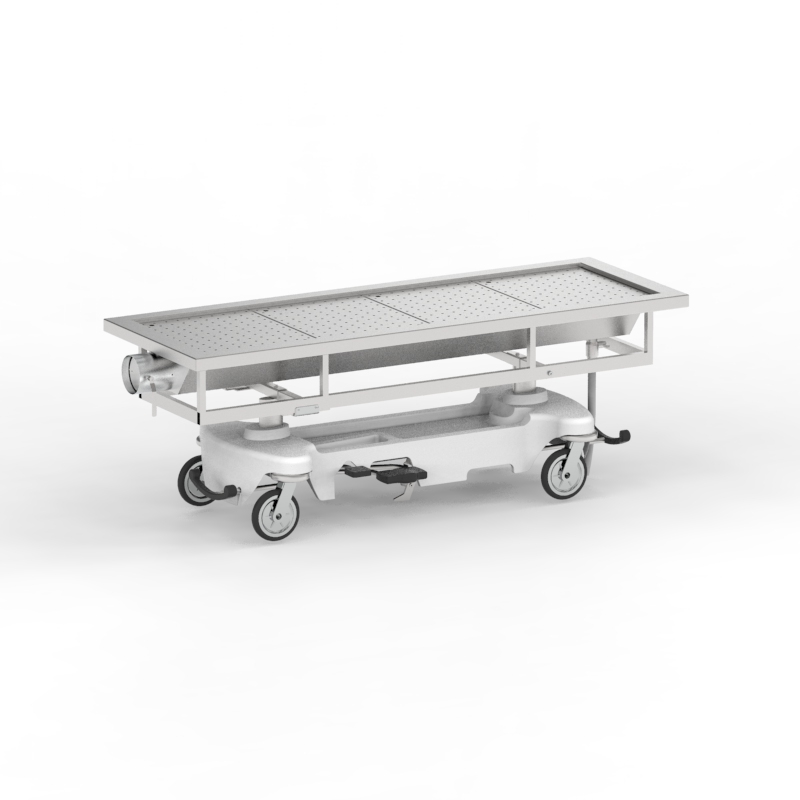

Mopec’s Hydraulic Downdraft Dissection Table provides a sturdy, easy-to-use surface for dissection work. It features downdraft ventilation to help control odors and airborne contaminants, along with hydraulic height adjustment for user comfort. Built with durable materials, it’s well suited for labs, schools, and forensic settings.

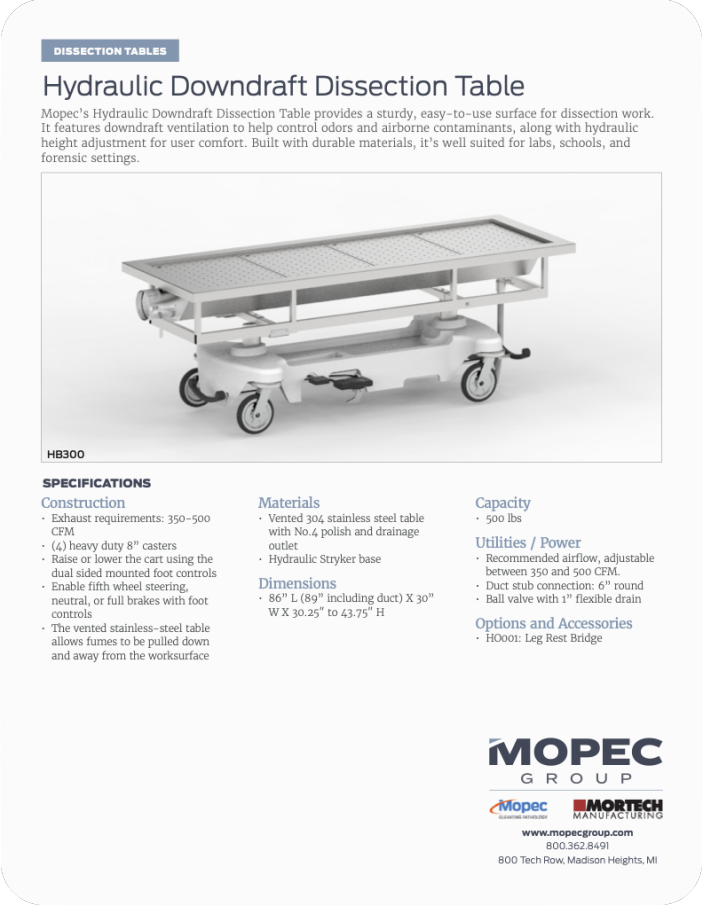

Download Specs
