Fume Extractor, Various Lengths
Construction
- Includes (1) fume extractor
- Made to go on top of any countertop or work surface
Materials
- Aluminum frame, clear polycarbonate, ABS plastic, stainless steel screws
Dimensions
- BF724: 24” L x 20” W x 20” H

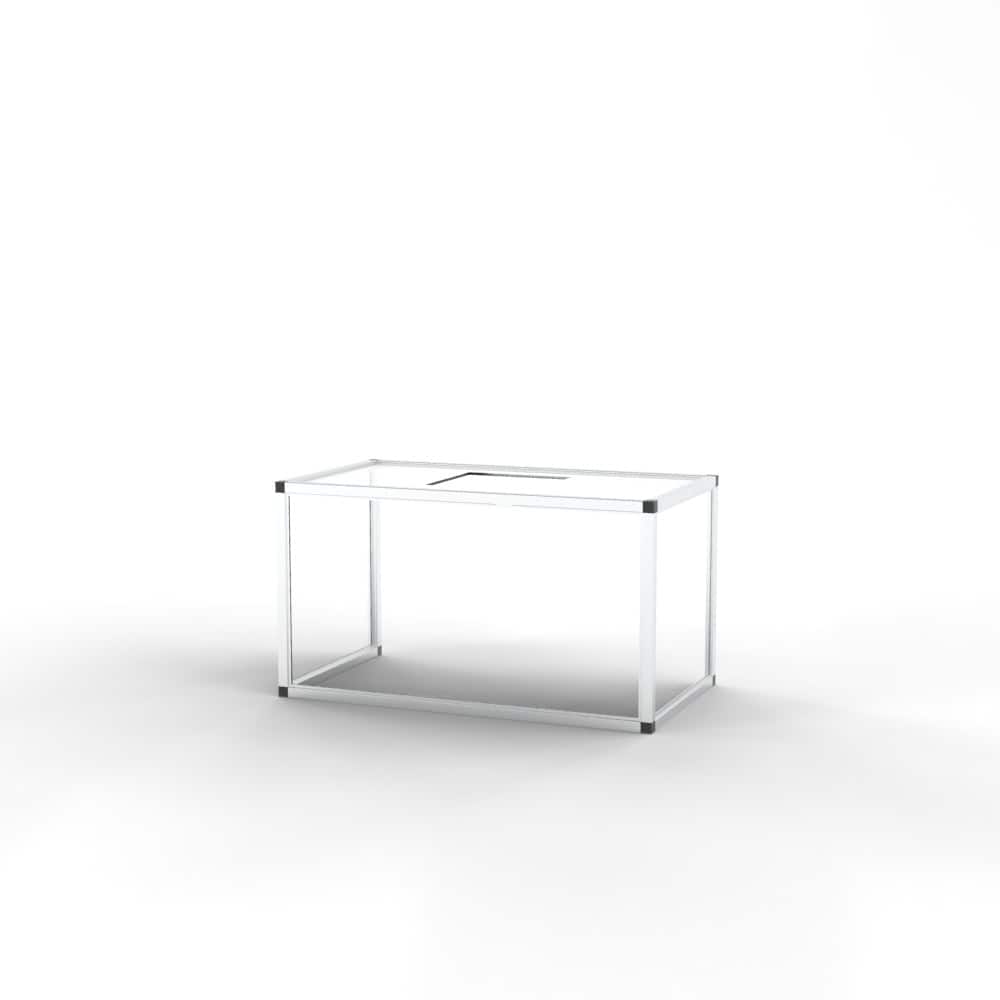

- BF736: 36” L x 20” W x 20” H

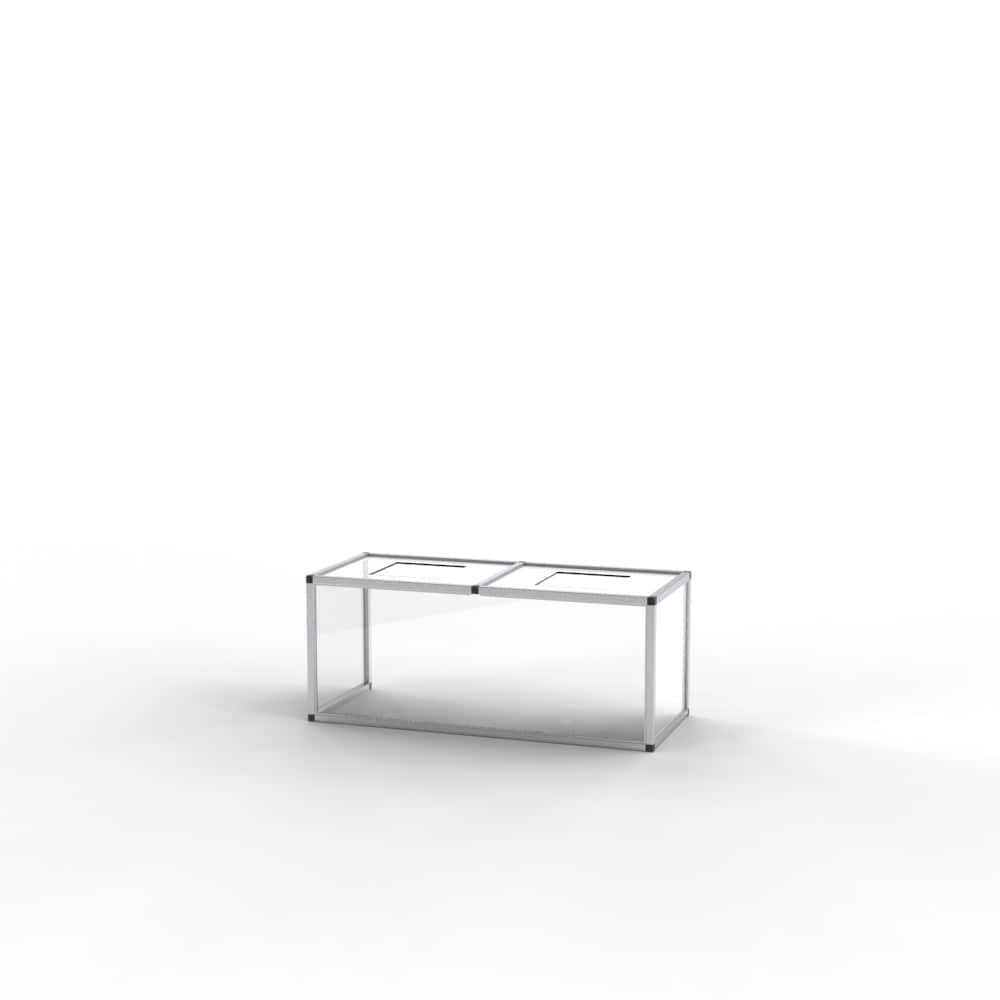

- BF748: 48” L x 20” W x 20” H
- BF760: 60” L x 20” W x 20” H
Compatibility
- BF724/BF736: Requires a Qty of 1 of either BF720 (connects to facility ventilation) or BF710 (recirculating/self-contained blower to function)
- BF748/BF760: Requires a Qty of 2 of either BF720 or BF710
Performance
- Connect your fume extractor to the building ventilation system to remove fumes
- Place a BF710 fume exhaust module on top to filter air to recirculate back into the room
Options & Accessories
- BF748, BF760, fume extraction modules
- BF710 Fume extraction module
- BF720 Fume extractor duct adapter
- PM0603 vent duct (sold separately by the foot)
- PB0378 clamp for vent duct (sold separately, individually)
- BF002, BF003 (filters for BF710, Qty of 1 Ea. required as replacements)
Description
Mopec’s fume extraction modules are made to go on top of any countertop or work surface. Fume extractors are meant to connect the to the building ventilation system, with the building creating suction and removing the fumes from the working area. A fume exhaust module can also be on top to filter the air and recirculate it back into the room.
Download Specs
BF724 Drawing
BF736 Drawing
BF748 Drawing
BF760 Drawing
Additional information
| Length | 24" L, 36" L, 48" L, 60" L |
|---|
