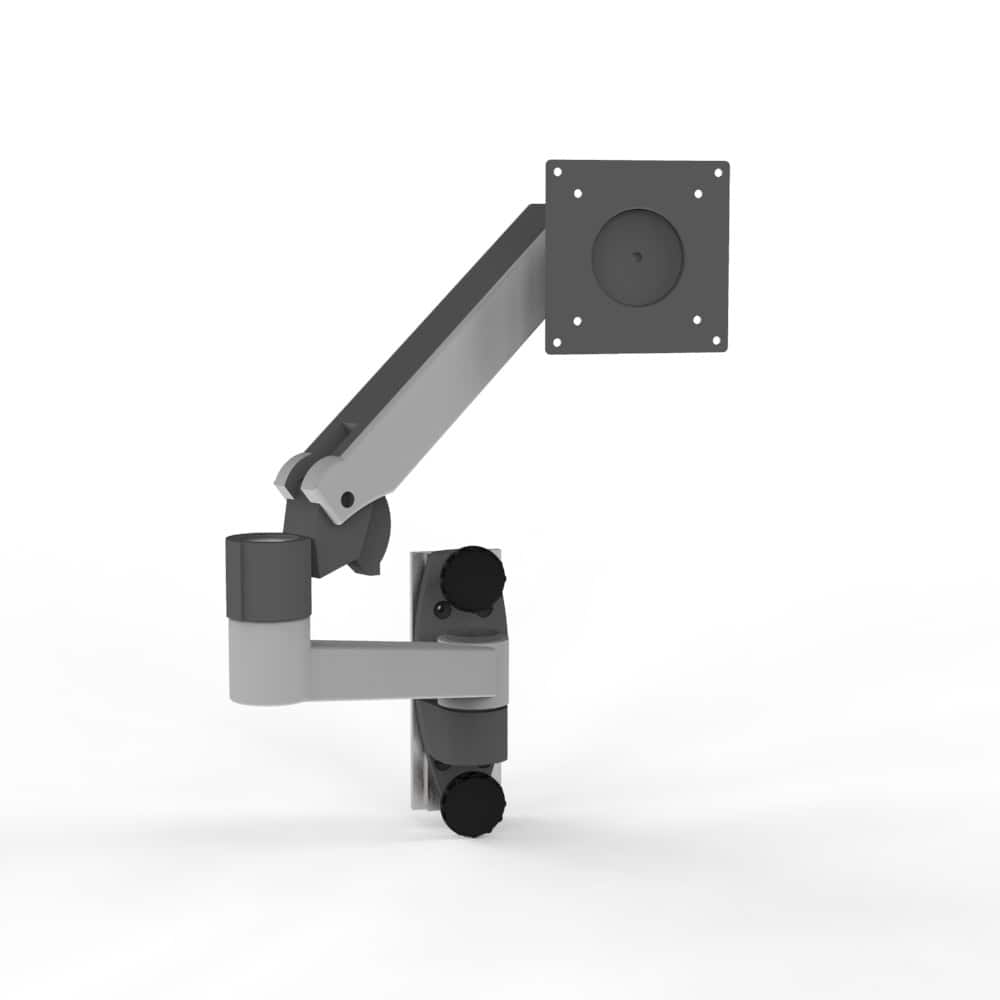

Ensemble Monitor Mount Arm – AX034

Construction

  • Designed to mount into the existing track on the column opposite the sink
  • Once installed, track allows arm to be moved up and down the track by loosening two large, knurled knobs, without needing any tools

Capacity

  • 22 lbs

Performance

  • Has several pivot points to articulate up and down, and side to side.
  • Can be pulled out when in use, then pushed back when not in use
  • Arm has 25” of maximum extension, 13” of lift, 180° of monitor pan, and 85° of monitor tilt

Materials

  • Monitor arm components are powder-coated aluminum and steel for the bracket

Dimensions

  • 12.3” L x 10.2” D x 17.2” H

Compatibility

  • Fits all Mopec Maestro and Maestro Encore grossing stations

NOTE: If ordering with AX032 Keyboard Arm, please order AX070 bundle part number.
