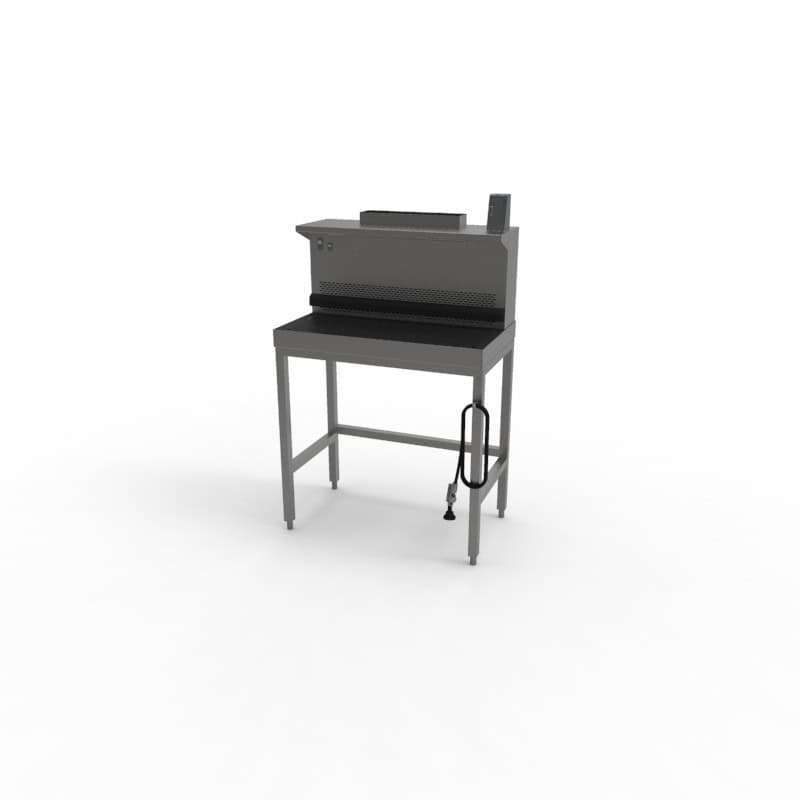

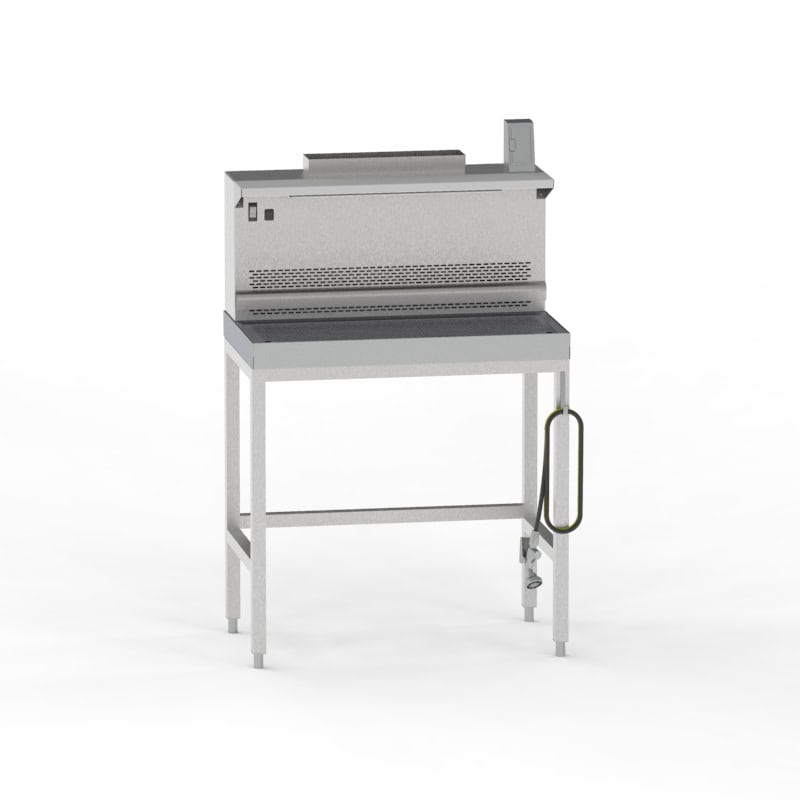

Down-Back Draft Grossing Station – BF550
Construction
- Facility Ventilation pulls between 300-350CFM
- 60” High pressure hand spray hose and 1.5” drainpipe
- Top mounted, watertight G.F.C.I. Outlet
- 18” Standard Fluorescent Replacement Bulb with Lighted On/Off Switch
Materials
- 18 Gauge 304 Stainless Steel with a No. 4 Finish casing
- 16 Gauge 304 Stainless Steel with a No.4 Finish frame
Dimensions
- 21” L X 36” W X 58.7” H
Workstation is at 37.3” H - 18” x 4” rectangular duct
Utilities / Power
- Hospital Grade Line Cord 115v/1ph/ 60Hz (8’ long)
Options & Accessories
- BF003 Particle Filter (1 included)
- BF005 Potassium Permanganate Filter (1 included)
- BF101 Replacement Pad (1 pack of 3 included)
- BF500 for recirculating version of this table
Description
Mopec’s Down-Back Draft Grossing Station is designed to support a safer and more comfortable environment during surgical grossing procedures. The workstation helps manage fumes and odors at the work area while maintaining an ergonomic, user-focused design. Built for durability and everyday use, it is well suited for the demands of busy pathology labs.

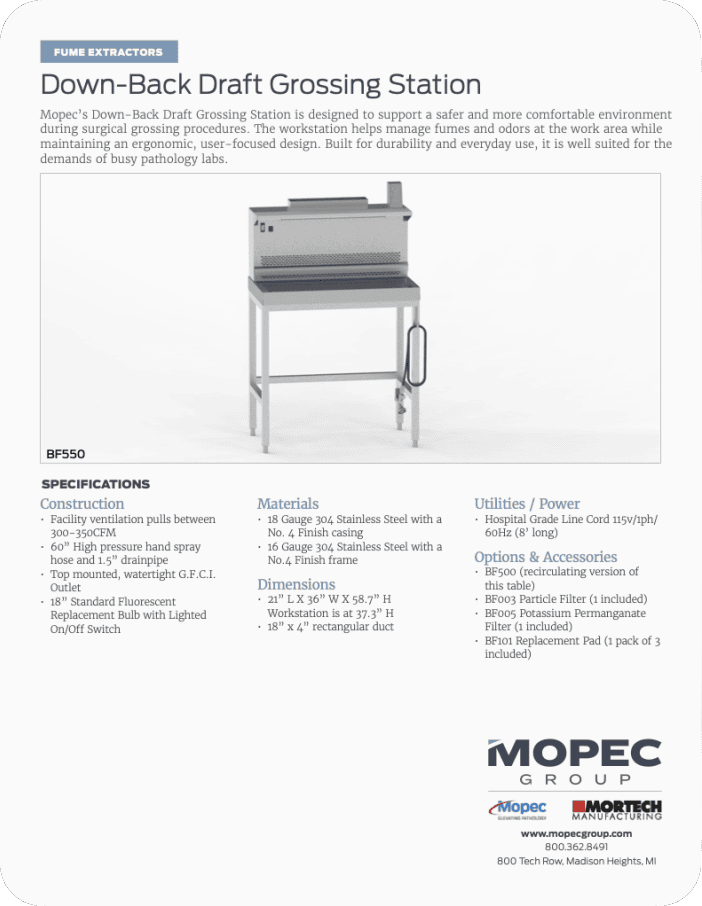

Download Specs
Download Drawing
