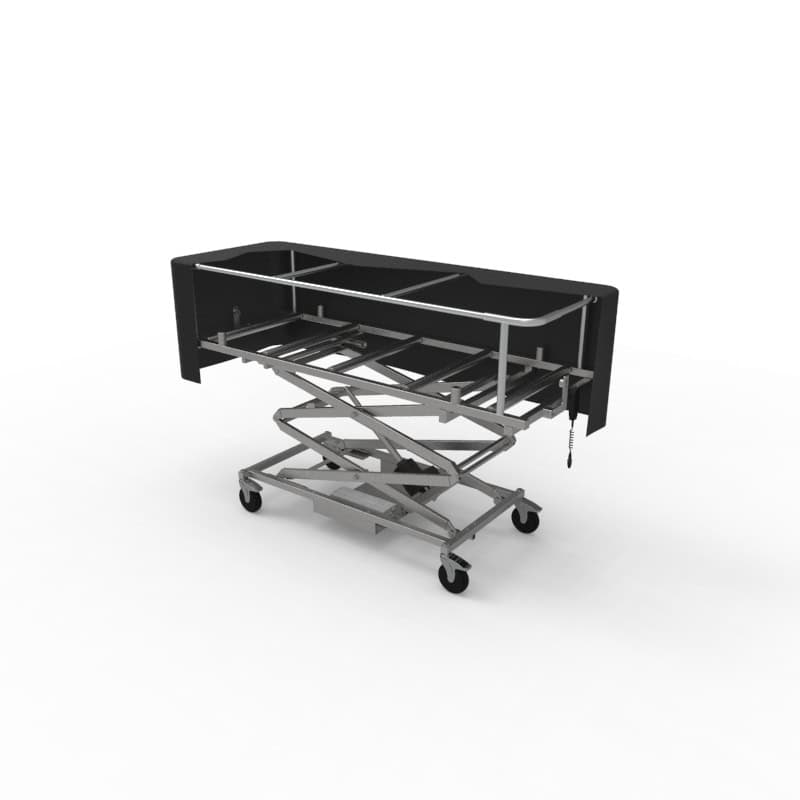

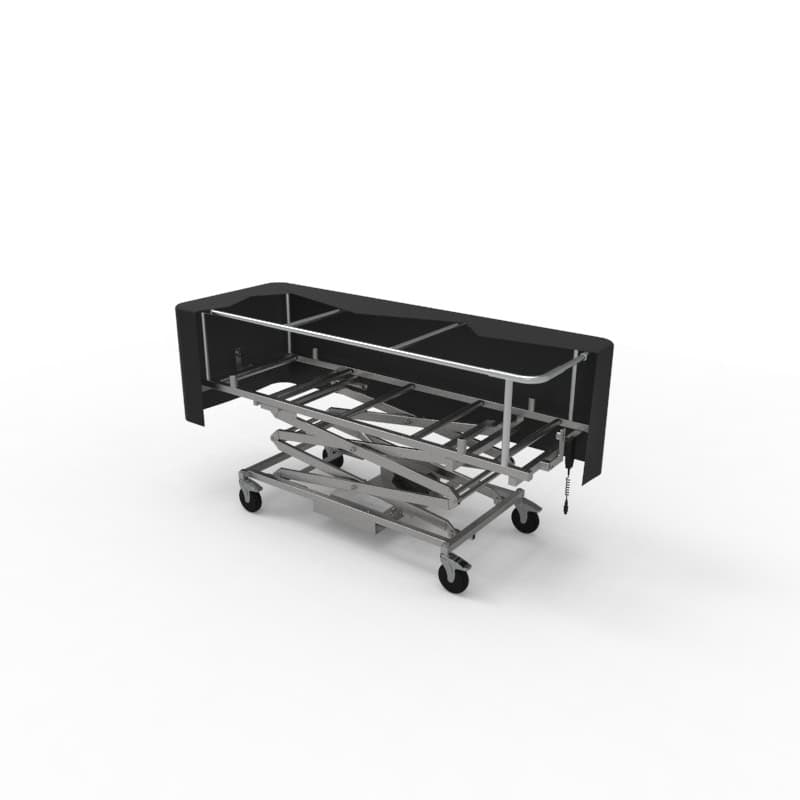

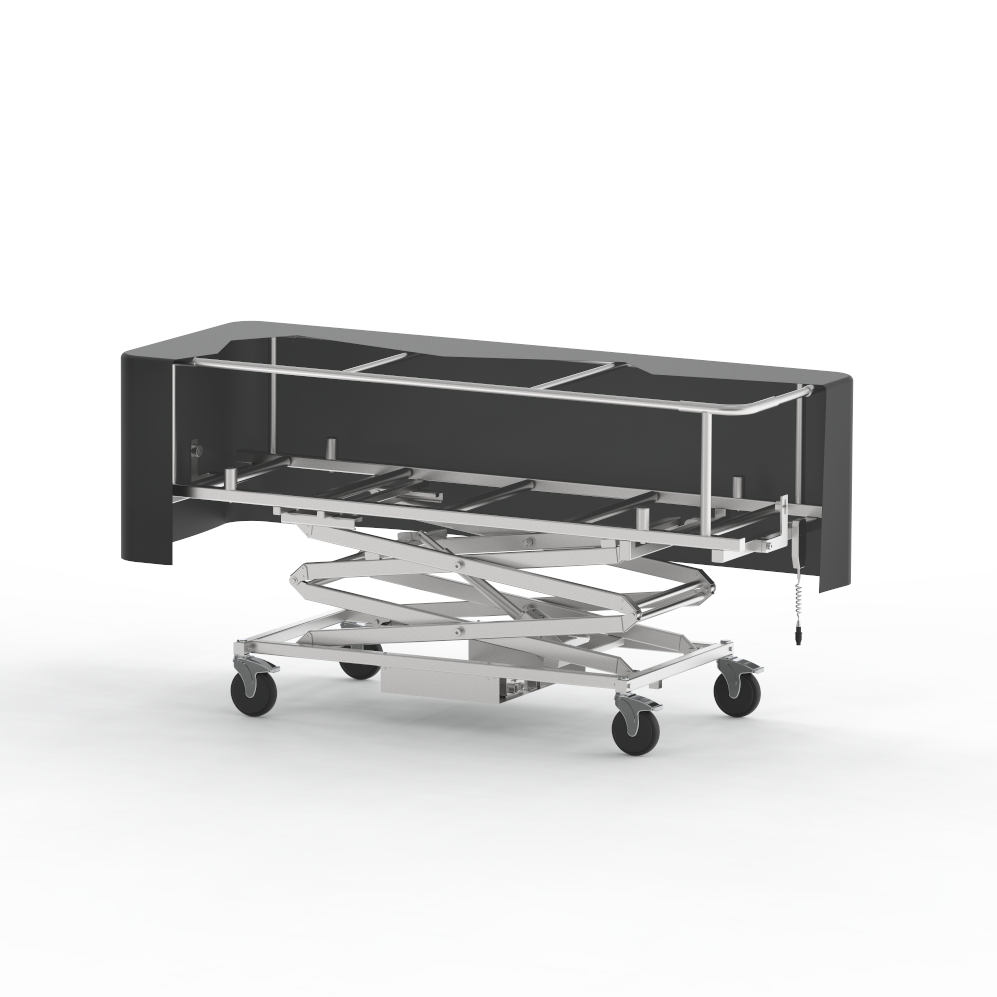

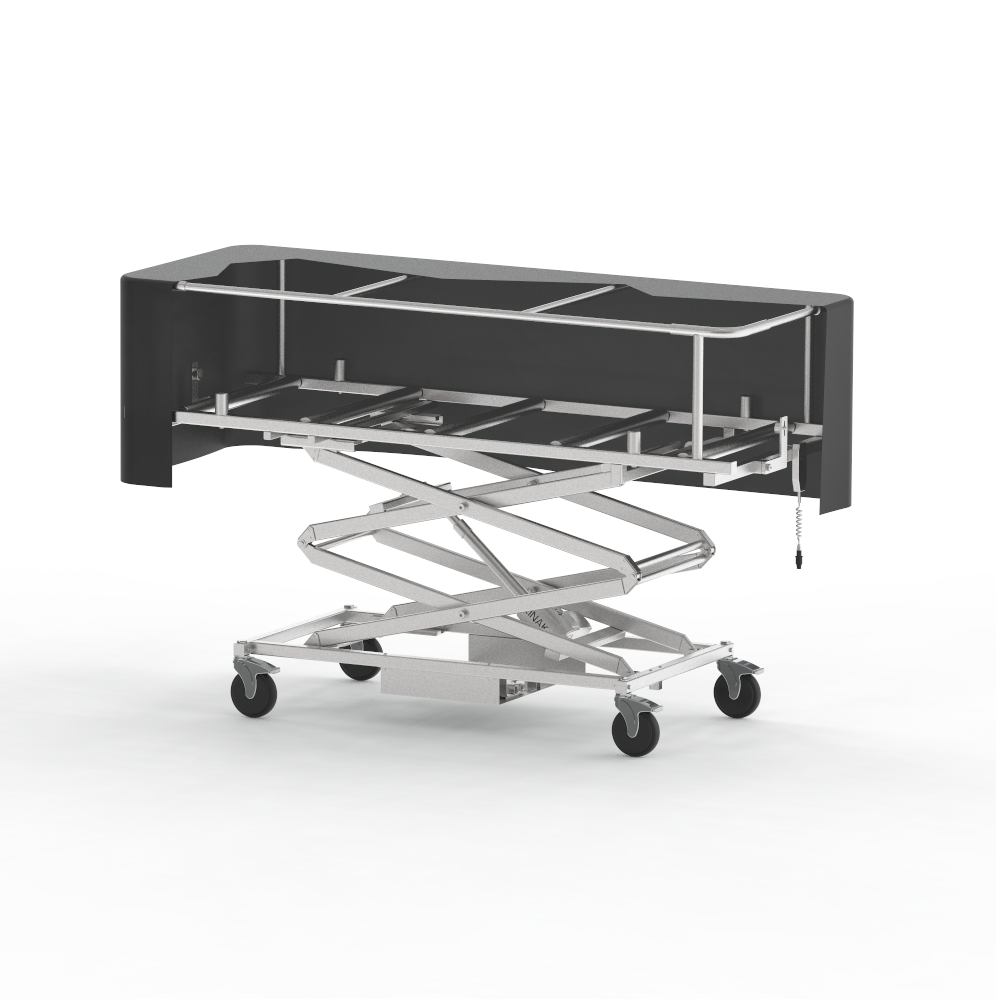

Covered Cadaver Scissor Lift Carrier – (600040-DS Series)

Construction

• End-Loading only
• 16” to 56.8” elevation
• Raise or lower the carrier using the handheld controller
• Removable aluminum tubing canopy and black vinyl cover
• (3) heavy duty 6” swivel locking casters
• (1) heavy duty 6” directional locking caster
• (5) galvanized stainless-steel rollers
• Emergency stop button
• (2) locking latch mechanisms at the head and foot of the carrier

Capacity

• 500 lbs

Materials

• 11 Gauge square 304 stainless steel carrier frame with a No. 4 polish finish
• Galvanized stainless-steel rollers
• The removable canopy frame is made of aluminum tubing
• Black vinyl removable canopy cover

Dimensions

• DS-23: 81.5” L X 26.8” W X 16” to 56.8” H (72.7” H with false frame)
• DS-27: 81.5” L X 30.8” W X 16” to 56.8” H (72.7” H with false frame)

Utilities / Power

• Rechargeable battery cord accepts any standard 120V/1hp/60V outlet
• 24V High-capacity battery capable of thrust up to 6000N

Compatibility

• DS-23: JC023 and JC023D
• DS-27: JC027 and JC027D
• Note: Meant for 3 tier racks, check your application. A 3-tier rack inside a cooler may require a 5-tier lift if the lift is on the floor outside and the rack is inside the cooler

Note: Trays sold separately.
