Lift – Hand Crank – JD710

Construction:

  • Heavy-duty steel construction with an aluminum housing
  • (4) 5″ swivel casters with brakes

Dimensions:

  • 31.25″ W x 62″ L x 76″ H

Elevation:

  • Lift Max. Height: 125” (with forks reversed)
  • Lift Max. Height: 103”(without forks reversed)
  • Low Min. Height: 6”

Performance:

  • Handles are removable when not in use
  • Reversible Forks: By pulling plunger pins, forks can be repositioned for added height
  • Ideal for compact storage
  • Load Capacity: 1000 lbs

Controls:

  • Highly reliable, single-speed winch
  • Leg-lock mechanism releases with the push of a button and locks in the stored position

Options & Accessories:

  • Fork extensions
Read More

Description

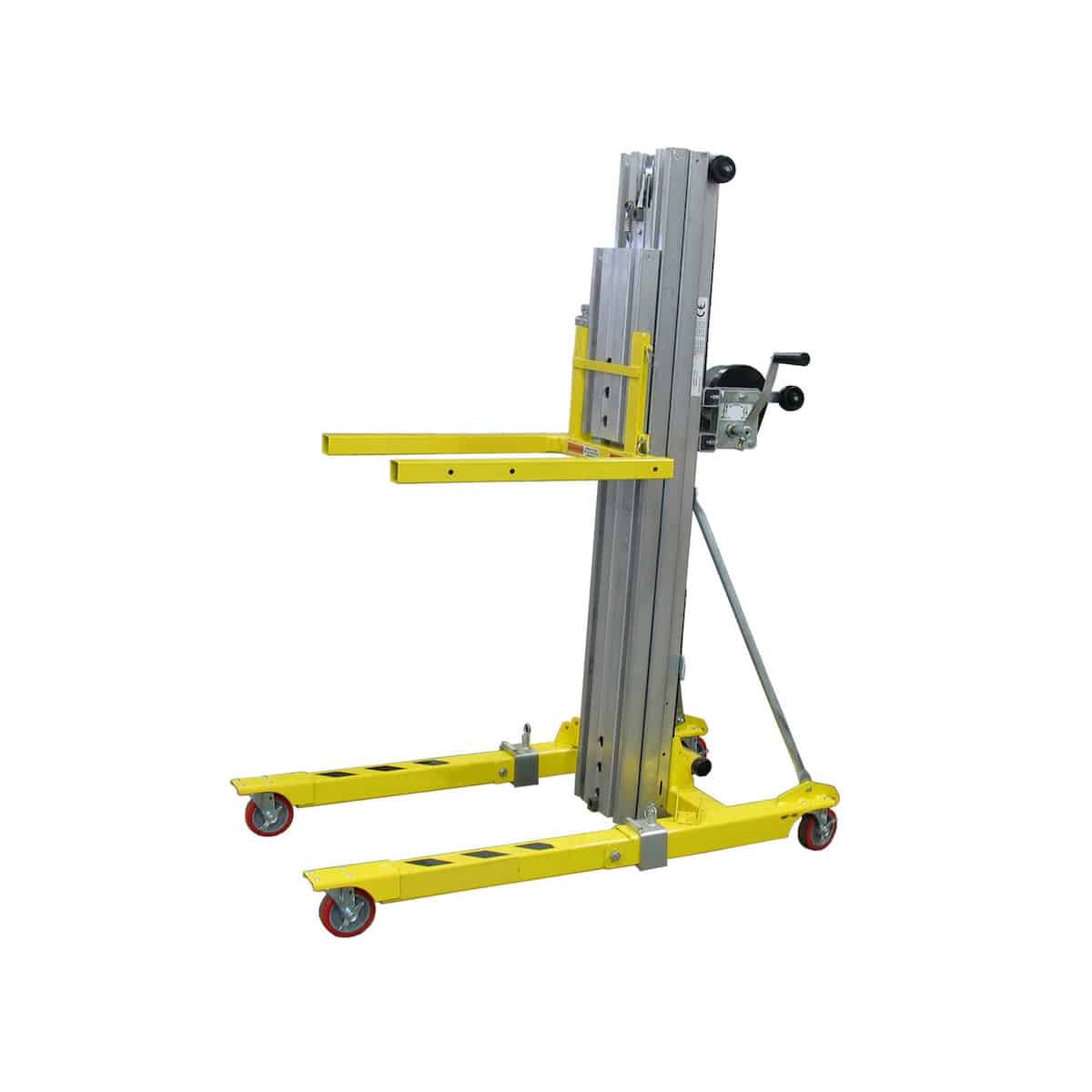

The JD710 Hand Crank Cadaver Lift features a telescoping mast which allows precise positioning of leads at the desired height.



Download Spec Sheet

Download JD710 Spec Sheet

Request Technical Drawing
