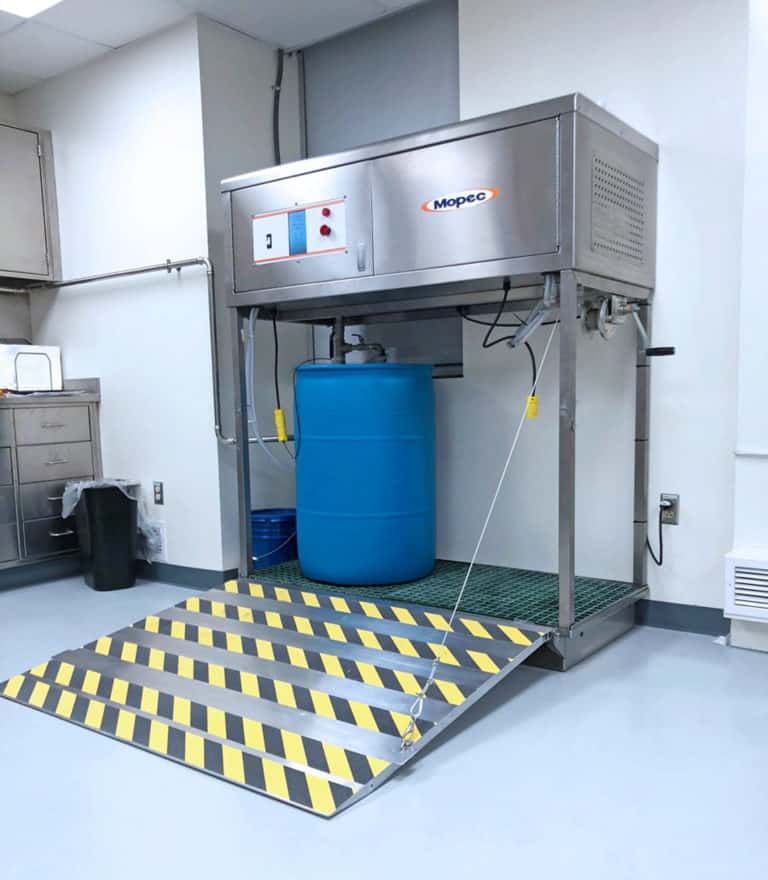

Formalin Pumping Station – FP100

The FP100 Formalin Pump Station is a pressurized, facilities-level formalin dispensing/distribution station designed to provide multiple workstations with buffered formalin. Our standard station transfers 10% formalin stock from easily replaceable 30 or 55 gallon drums directly to formalin faucets.

Read More
SKU: FP100 Category:

Description

The FP100 Formalin Dispensing, Pump System is a pressurized, facilities-level formalin dispensing/distribution station designed to provide multiple workstations with buffered formalin. Our standard station transfers 10% formalin stock, from easily replaceable 30 to 55 gallon drums, straight to formalin faucets. The active distribution system enables a consistent delivery of product while also allowing for increased flexibility when choosing dispensing locations. No longer will a laboratory be required to purchase individual formalin dispensing systems for each workstation. The FP100 system safely pumps buffered formalin solution to designated formalin spigots, simplifying the dispensing process for laboratory technicians. Utilizing an economical 30-55 gallon drum of buffered formalin as its supply, the FP100 also eliminates the messy task of constantly replacing local buffered formalin supplies. Realizing these benefits with the installation of a FP100 will save time and money for any laboratory.

Construction

  • All stainless steel construction
  • Spill containment with removable non-slip grid

Dimensions

  • 60.0” L  x 29.2” W x 74.0” H

Electrical

  • 115v/1ph/60Hz  20amp
  • Optional voltage for export 230v/1ph/50Hz 10amp

Performance

  • Designed to provide multiple workstations with buffered formalin
  • Containment pan accomodates both 30 & 55 gallon drums
  • Dual pump system
  • Formalin fluid level sensing with low formalin/drum level alarm
  • Low pressure alarm
  • All alarms visual & audible

Controls

  • 7” Touch screen display with system status icons
  • Emergency stop button with indicator

Compatibility

  • 30 gallon drums
  • 55 gallon drums

Optional Features

  • Dry contacts for remote alarming
  • Remote E-Stop with buzzer
  • Ramp with manual hand crank
  • Custom configurations available for systems greater than two drums
  • Drums provided by others



Download User Manual

Download Mopec Maestro Brochure

Request Technical Drawing
