Hydraulic Roller Cadaver Carrier – (JA630 & JA631)
Construction

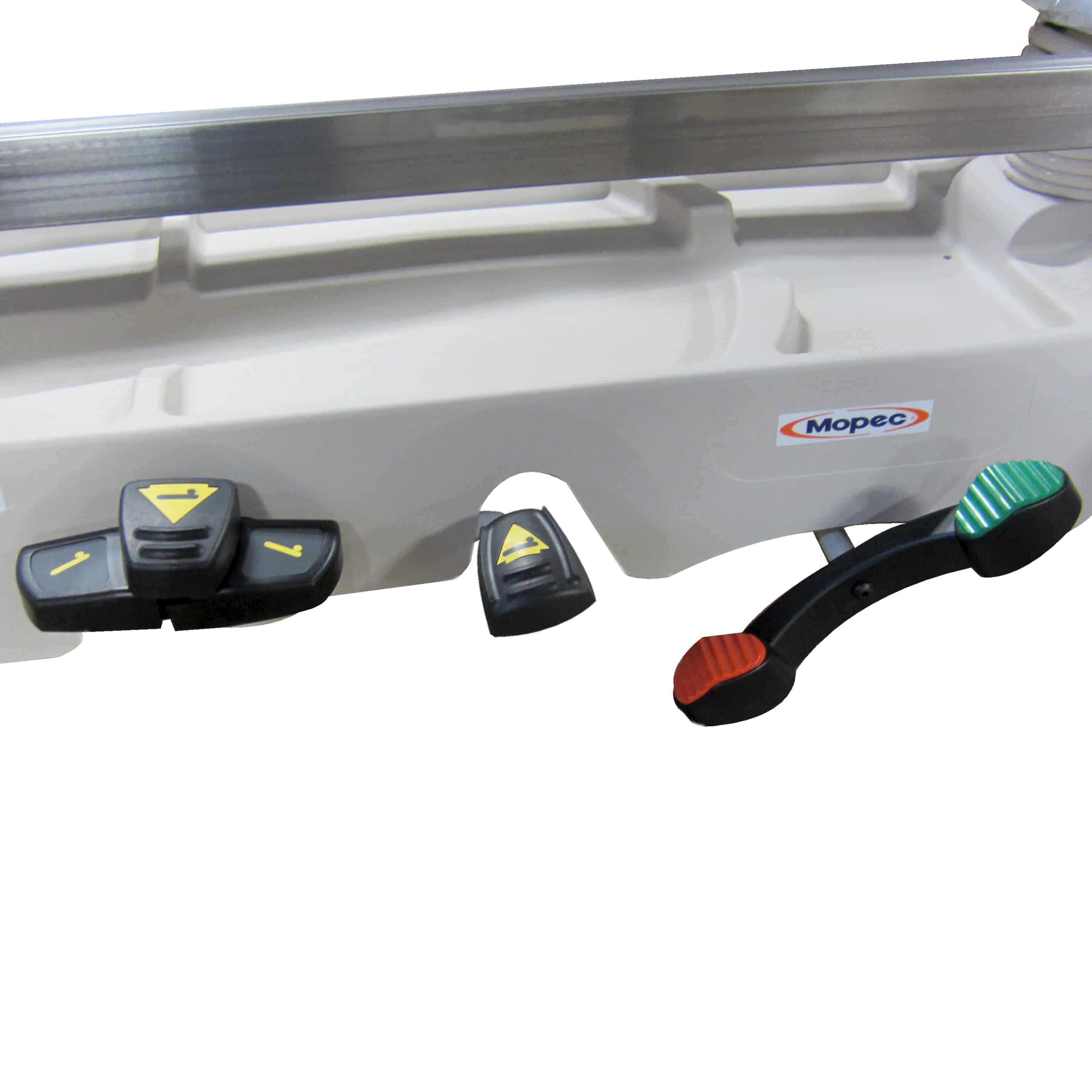

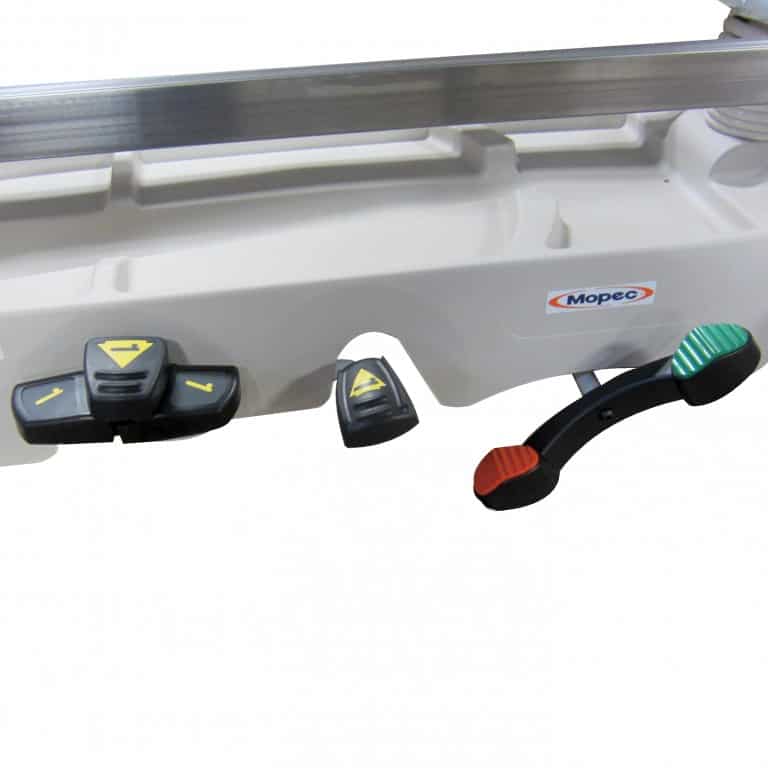

- Raise or lower the cart using the dual sided mounted foot controls

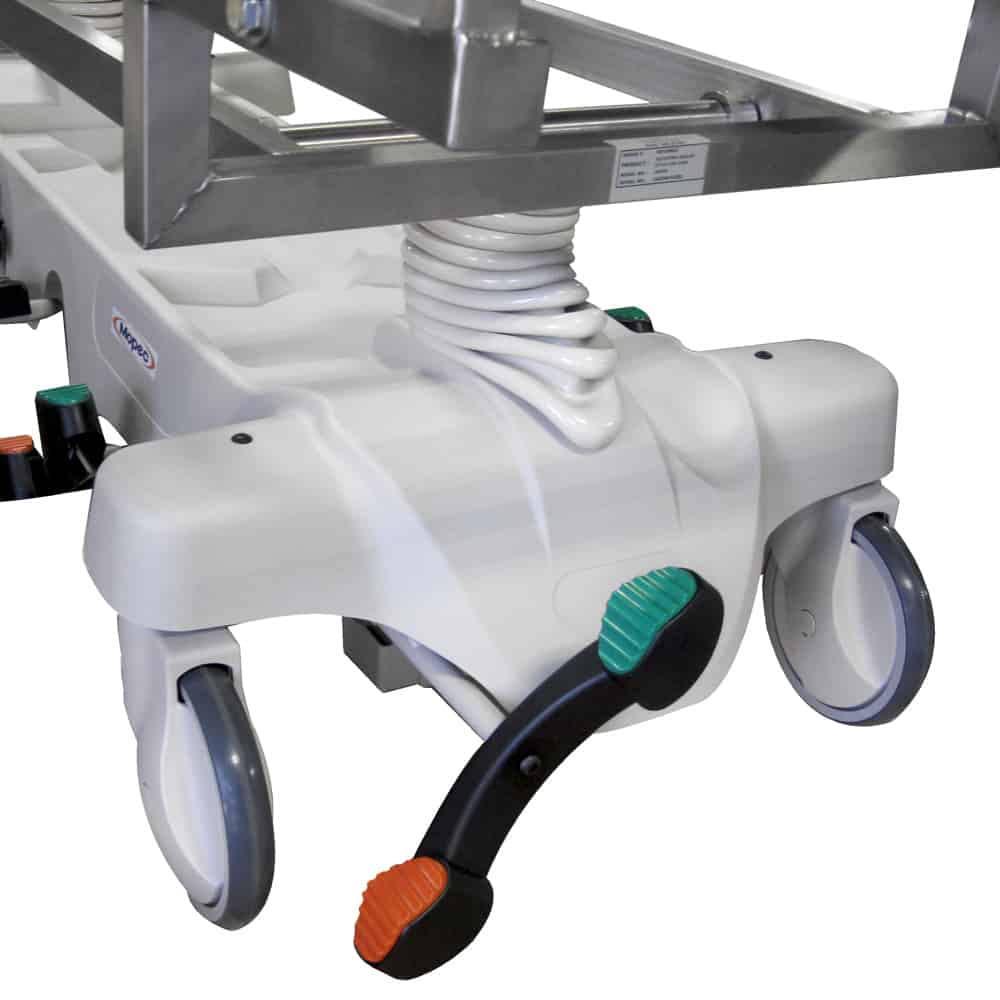

- Enable fifth wheel steering, neutral, or full brakes with foot controls
- (4) heavy duty 8” casters
- Tray stop latch

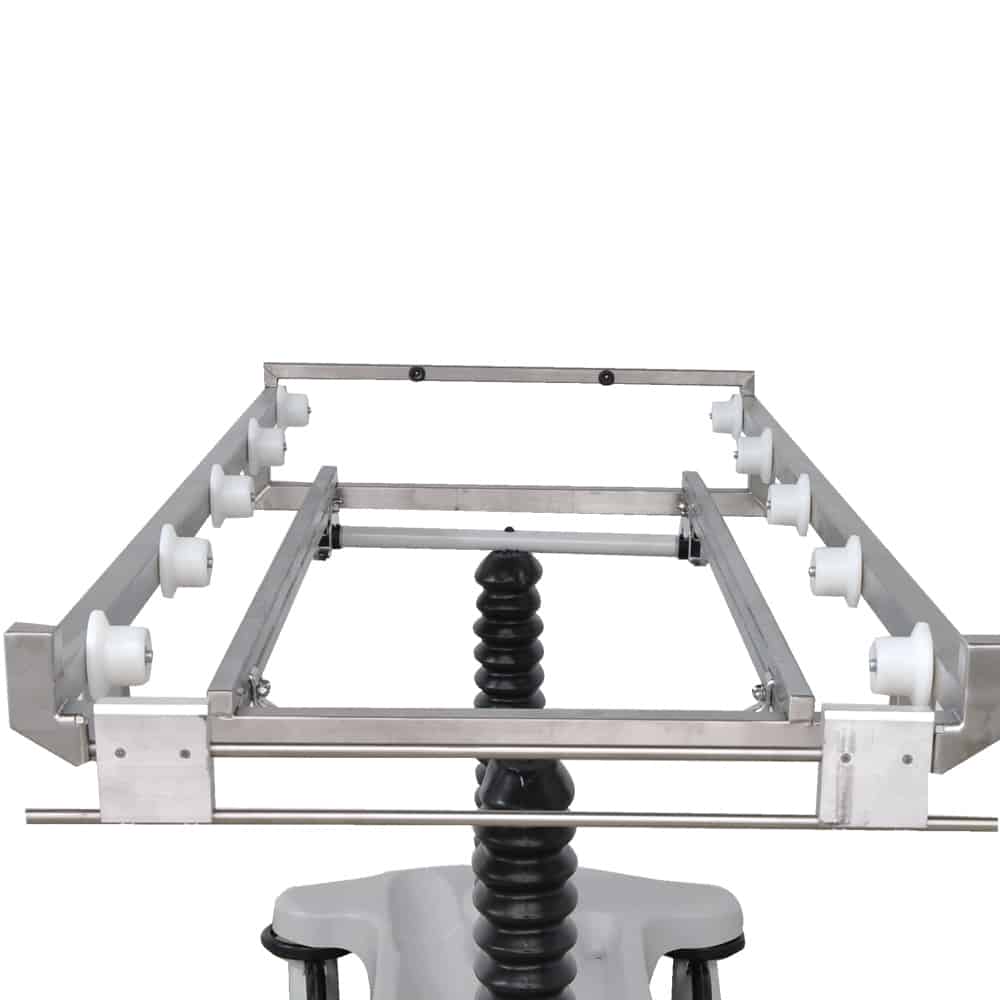

- (10) Nylon rollers to allow for smooth movement of trays on the carrier
Capacity
- 375 lbs
Materials
- 11ga 1.5” SQ 304 stainless tubing construction with a 180-grit finish
- Roller top for trays with nylon rollers
- Hydraulic Stryker base
Dimensions
- JA630: 79.2” L X 27.25” W X 27.8” to 40.55” H
- JA631: 79.1” L X 31.3” W X 27.8” to 40.55” H
Compatibility
- JC630:
- JC023 & JC023D trays
- JA611 (Cadaver False Frame)
- JZ013 (White Vinyl Cover)
- JA631:
- JC027 & JC027D trays
- JA612 (Cadaver False Frame)
- JZ029 (Black Vinyl Cover)
- Note: All compatible items sold separately.
Note: Trays sold separately
Description

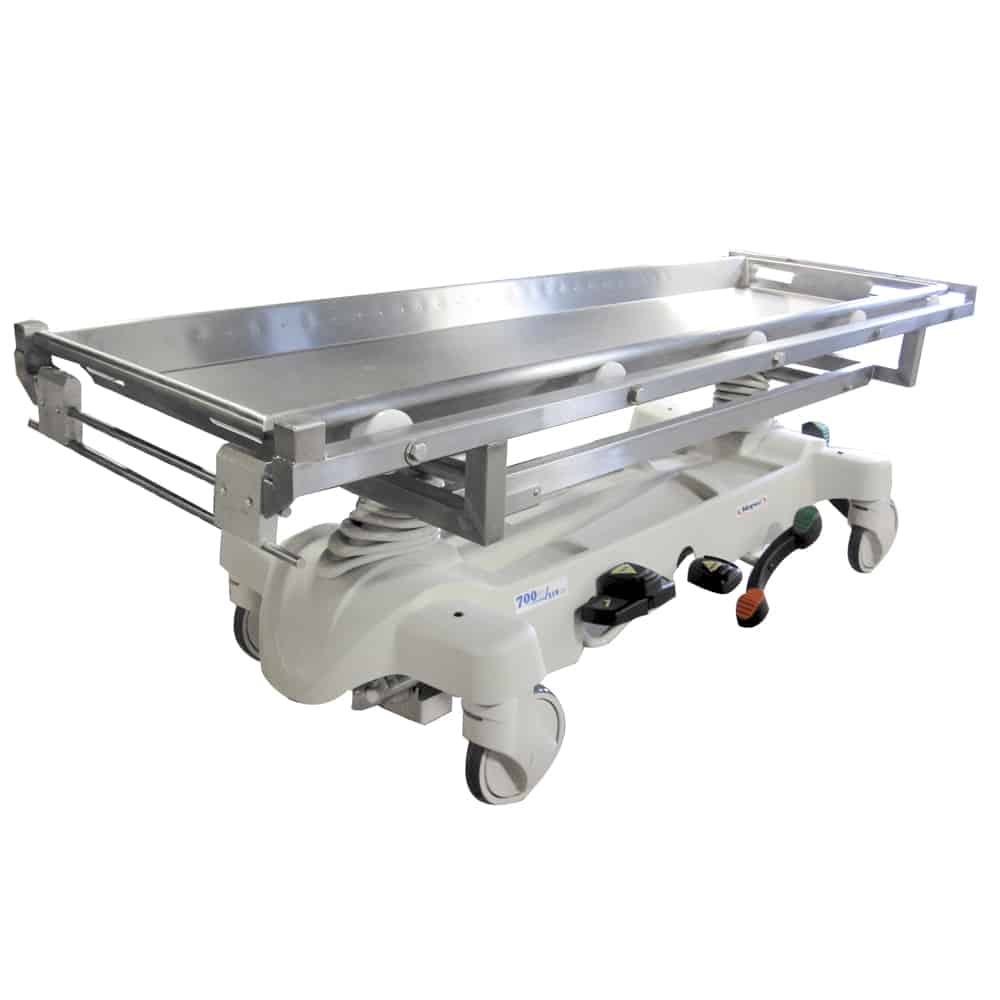

Mopec’s Hydraulic Roller Cadaver Carriers are heavy-duty mortuary transport carts built for body trays. Its dual foot-pedal hydraulic system raises and lowers the carrier smoothly during loading/unloading. Four large 8″ casters with total-lock and tray stop latch ensure stable, secure movement and transfer. The wide platform supports up to 375 lb and is sized for standard mortuary hallways and doors.
Download Specs
JA630 Drawing
JA631 Drawing
Additional information
| Tray Size | 23", 27" |
|---|
