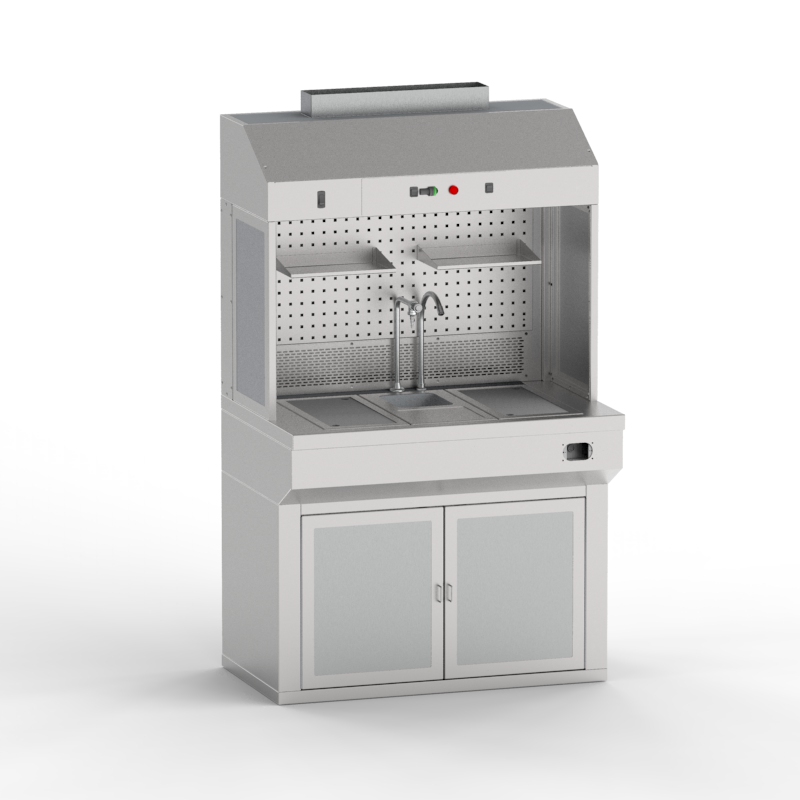

Formalin Dispensing Station – FD500

Construction

• Non-elevating workstation
• “In-house” ventilation
• Visual and audible alarm for formalin collection jug level with reset button
• GFCI protected receptacle with waterproof cover
• (3) Fully perforated grid plates (center one has small sink)
• 12” X 6” Gooseneck formalin dispensing fixture, 9.5” clearance from work surface to spigot
• Large single compartment sink basin
• Pull-out drawer to hold formalin dispensing cubitainer and collection carboy
• LED Lighting
• (2) adjustable 7.9” X 14” shelves on pegboard

Materials

• 304 stainless steel construction with a polished No. 4 finish
• Polycarbonate side splash shields, splash shield on flexible arm near spigot, and lower doors

Dimensions

• Unit: 30” L X 44” W X 72” H
• Sink Trough: 34” L X 25.5” W X 8” D
• Grid Plate Sink: 7.5” L X 9” W X 4” D
• Work Surface: 25.7” L X 41.7” W X 35” H
• Vent Duct Connection: 23.9” L X 4.25” W

Capacity

• 240 lbs


Utilities / Power

• (1) 115v/60hz/1ph/15a circuit for station
• Exhaust recommendation: 370 – 520 cubic feet per minute, will allow the user a means of adjusting the air flow to their comfort level and work conditions. Calculations are based on maintaining 125 – 175 (feet per minute) face velocity through the grid plates.
