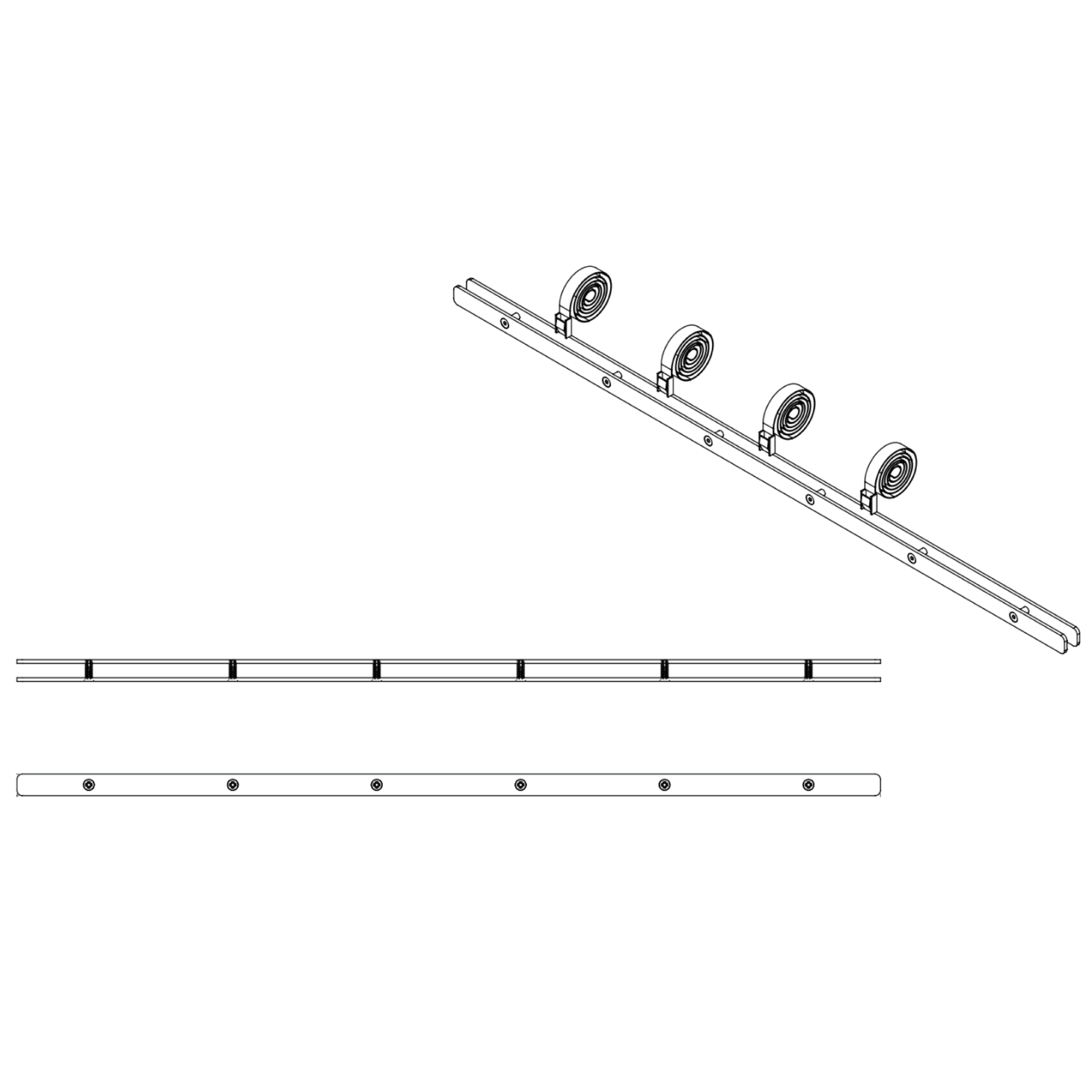

Adjustable Tie Down Assembly – OA-502

Construction

• Length of the tie down assembly is dependent on the length of necropsy table. Starting 5” in every 10” there is a 0.762 diameter whole drilled through the outer assembly. This continues until the last hole is 5” away from the end of the outer assembly. The outer assembly then screwed into the inner assembly along the drilled holes and spacers. The spacers provide a 1” space along the interior of the assembly

Materials

• 304 stainless steel assembly with a No. 4 finish

Dimensions

• 0.25” W and 1.5” D

Options & Accessories

• OA-503: Nylon Straps (used together with OA-502)

Note: Photo and Drawing are for reference only.
