Trimming Table – Total Draft – OA800

Please Request a Quote for Pricing

  •  Dimensions: 96″ L x 30″ w x 37″ H
  •  Sink Dimensions: 20″W x 11″L x 10″D with an additional H/C water faucet located opposite the ventilation duct.
  •  Material: All Stainless Steel Construction. 14 gauge Stainless Steel.
  •  Draft System: Total down draft workstation w/sink; an internal baffle system provides a means of distributing air evenly across work surface.

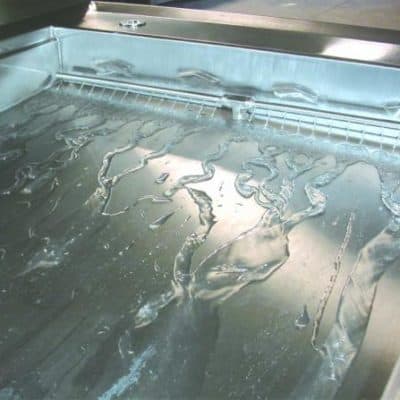

  •  Grid Plates: Each of three grid plates. 16 gauge stainless steel construction, perforated with 1/2″ diameter holes on 1″ center.
  • Support Pedestal: Pedestal is complete with access doors at each end, reinforced corners and adjustable bolt for leveling Stainless Steel Construction.
  • Fixture: At each end a H/C fixture is located. Each is provided with wrist blade handles, large swing spout faucet w/ vacuum breaker protection.
  • Electricals: (2) GFCI protected watertight receptacles 115/1/60.



SKU: OA800 Category:

Description

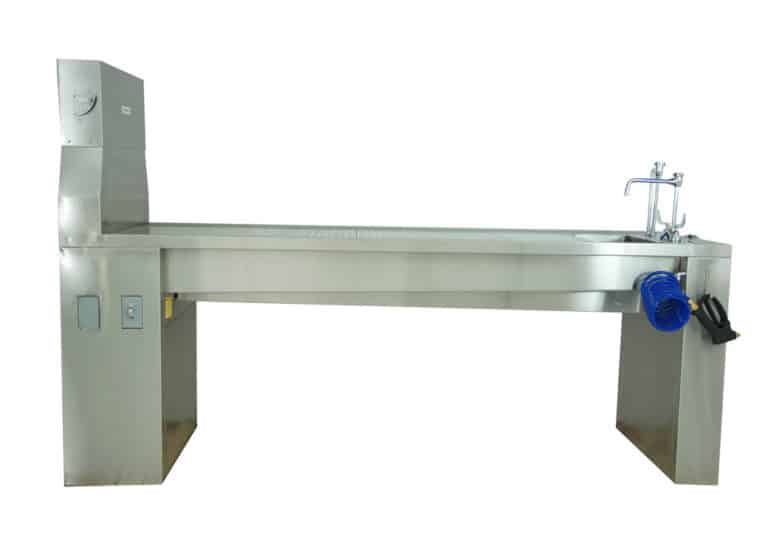

The OA800 work station as shown is ventilated with Mopec’s down draft system. Designed to provide a safe and effective vented workstation for necropsy and trimming. The inner baffling system helps provide a consistently even Downdraft surface velocity across the entire work surface.



Request Technical Drawing
