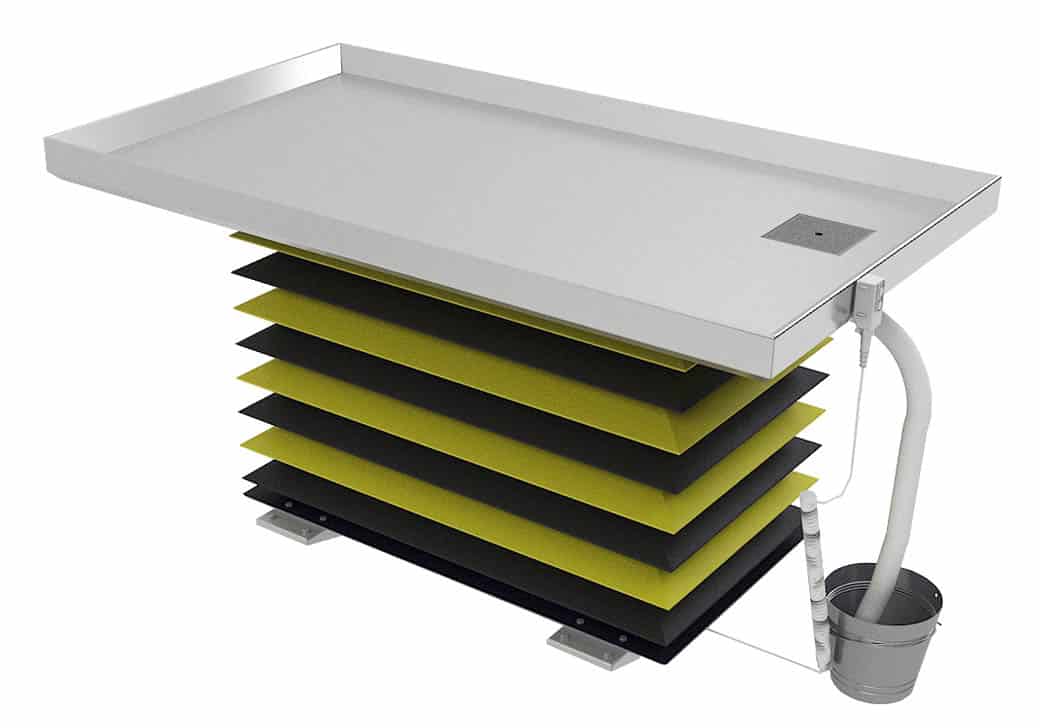

Trimming Table – Rectangular Large Animal with Lift – OA100

  • Dimensions: 84″ long x 48″ wide x 42″ elevating height-36″ standard travel
  • Capacity: 2500 – 5000 pounds
    STANDARD FEATURES INCLUDE:
  • Heavy duty stainless steel top-1″ recessed marine edge
  • Designed to handle a centralized load up to 2,000 pounds
  • Safety skirting
  • Scissor and frame (steel with epoxy finish)
  • Drain funnel with removable mesh screen
  • Hydraulic lift system with hand held switch
  • Other load capacities are available
Read More
SKU: OA100 Category:

Description

The OA Series are large capacity elevating tables capable of supporting large loads. Designed for the necropsy of large animals the OA Series is designed with a large profile marine edge to help contain fluids. The OA100 Series is also provided with a drain hole with removable perforated screen to help collect debris. These units have a hydraulic scissor lift and hydraulic pump unit. Designed to stand on its own or within a pit in the room, in its lowered position, the table will be flush with the finish floor line. Available in a rectangular or kidney shape and with or without casters, the standard table is capable of raising 42″. Easy to use elevation control.



Request Technical Drawing
