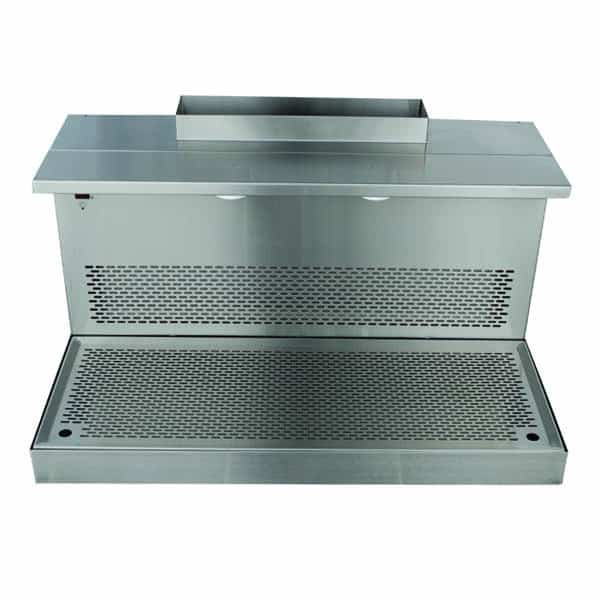

Countertop Down Back Draft Workstation in House Ventilation – BF450

In-House Ventilation
* Overall dimensions: 36″ L x 21″ D x 19″ H
* All stainless steel construction
* 13″ x 34″ work area
* 8′ Hospital grade line cord
Standard Features:
* 24″ Fluorescent light
* Removable grid plates
* Circuit breaker switch
* Perforated back vent grill

Read More
SKU: BF450 Categories: , ,


Compact and versatile design recommended for dermatology and smaller labs that need a single workstation. These compact workstations provide a surprisingly large work area and are ideal for dissection, trimming, small anatomic pathology procedures, and staining.
The nine foot line cord makes it easy for a smaller lab to install with ease. Dimensions: 36″ L x 21″ D x 19″ H (91 cm x 53 cm x 48.2 cm) dual draft All BF Series workstations are equipped with Mopec’s dual draft ventilation system that safely and effectively remove harmful toxic fumes even when the work area is blocked by dissection boards or instruments. The fixed back draft ventilation combined with adjustable Downdraft ventilation delivers approximately 30% more air-flow in front of the work area. Filtering The powerful self-contained fans evacuate all harmful formaldehyde fumes into the internal filtering system (BF400 requires two each). Blower motors have a variable speed adjustment dial for adjusting the air flow to your desired rate. Front access replacement filters are easily changed. Mopec offers both potassium permanganate and activated charcoal (for Xylene) filters for BF400 only. Large, lighted work area compact, yet versatile, the BF Series features a large 34″ L x 13″ W (86.3 cm x 33 cm) work area and features a grid plate that is easily removable for cleaning. Work area is illuminated with a 24″ fluorescent bulb. Pilot lighted on/off switch is located on the back panel for accessibility. Storage Shelf The top shelf of the workstation has a 12″ W x 36″ L (30 cm x 91 cm) area for placement of specimen containers. Easy installation and  simple plumbing connection and standard 110 volt electrical outlet allow this unit to be placed in areas where space is limited. Unit is supplied with an 9′ (274 cm) hospital grade line cord. All stainless steel construction work surface and filtering areas are manufactured using 304 stainless steel with a #4 satin finish. BF450 requires no filter as it is an in-house ventilation unit and connects to facility ventilation.


Request Technical Drawing
